Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Sport R G4 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: ABP066A
Suspension Fork
SR Suntour MOBIE25 AIR LOR, Federweg: 63 mm, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8000-GS, 1x11
Shift Levers
Shimano Deore, SL-5100-IR, I-Spec EV, mit Ganganzeige
Cassette
Shimano Deore, CS-M5100-11, 11-42T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 170 mm (S), 175 mm (M, L, XL), TCK10
Chain
SRAM PC-1110, Kettenlänge: 118 Links
Chain Guide
Curana FLY
Pedals
VPE-899
Wheels
Front Hub
Shimano Deore, HB-M6010, 15x100 mm, 32H, FH-M6000, 10x135 mm, 32H
Rear Hub
Shimano Deore, HB-M6010, 15x100 mm, 32H, FH-M6000, 10x135 mm, 32H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
DT Swiss Industry 2.0
Tires
Schwalbe Marathon GT, 28x2.0", Peformance Line mit Reflex
Brakes
Brakes
Shimano BR-MT410, resin pad
Brake Levers
Shimano BL-M4100
Cockpit
Stem
PROCRAFT Comp II, Winkel: 17°, Länge: 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 640 mm (S), 680 mm (M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Cross Sport II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line CX, max. 85 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 3.876 mm | 3.994 mm | 4.106 mm | 4.224 mm |
| Stack | 620 mm | 639 mm | 657 mm | 676 mm |
| Top Tube Length | 574 mm | 591 mm | 609 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1077 mm | 1095 mm | 1114 mm | 1133 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

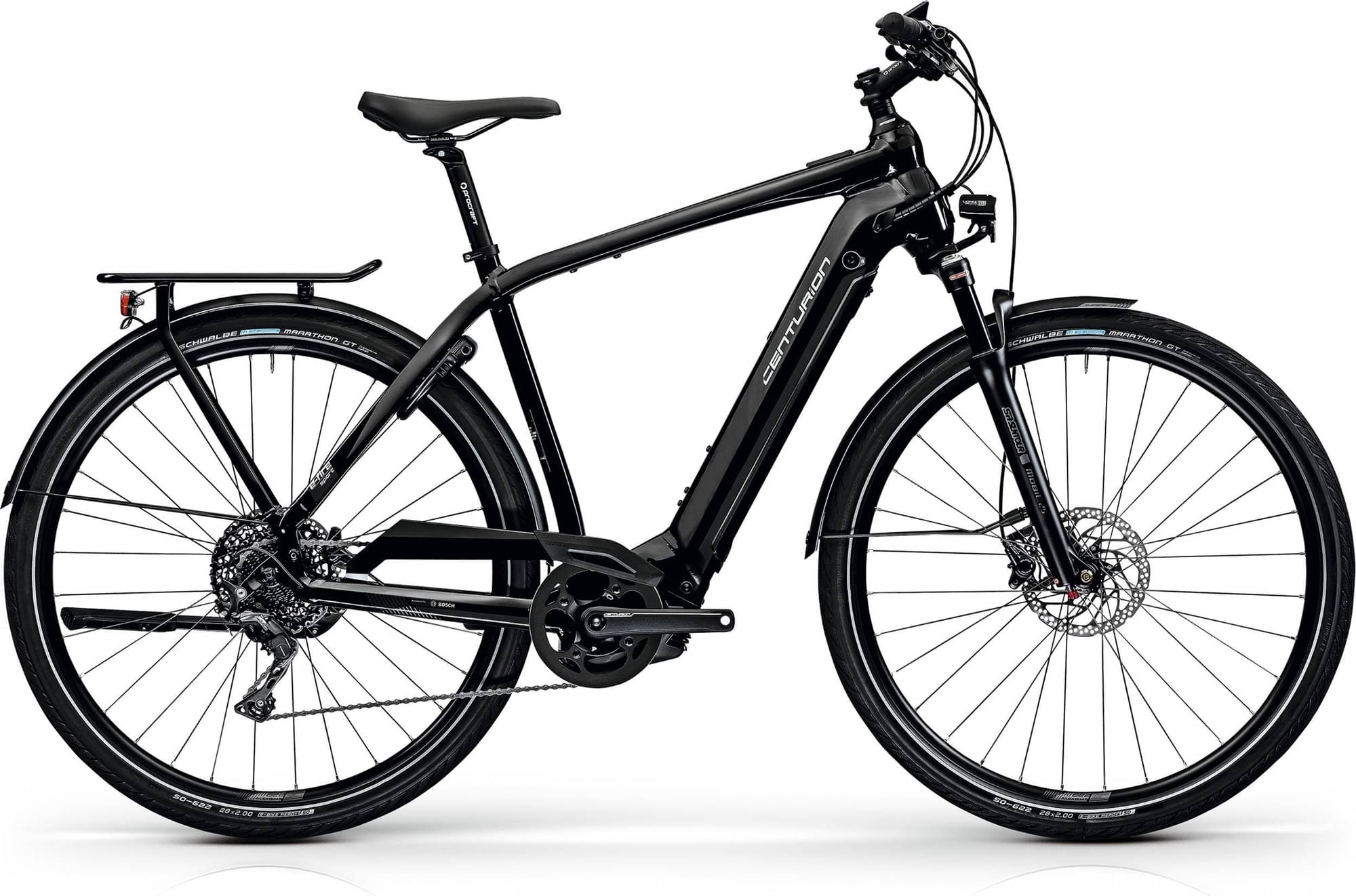

About this model
E-Fire Sport R2600i SMC completes the Centurion E E Fire model. 83 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the E-Fire Sport R2600i SMC model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Fire Sport R2600i SMC has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Centurion E-Fire Sport R2600i SMC e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
