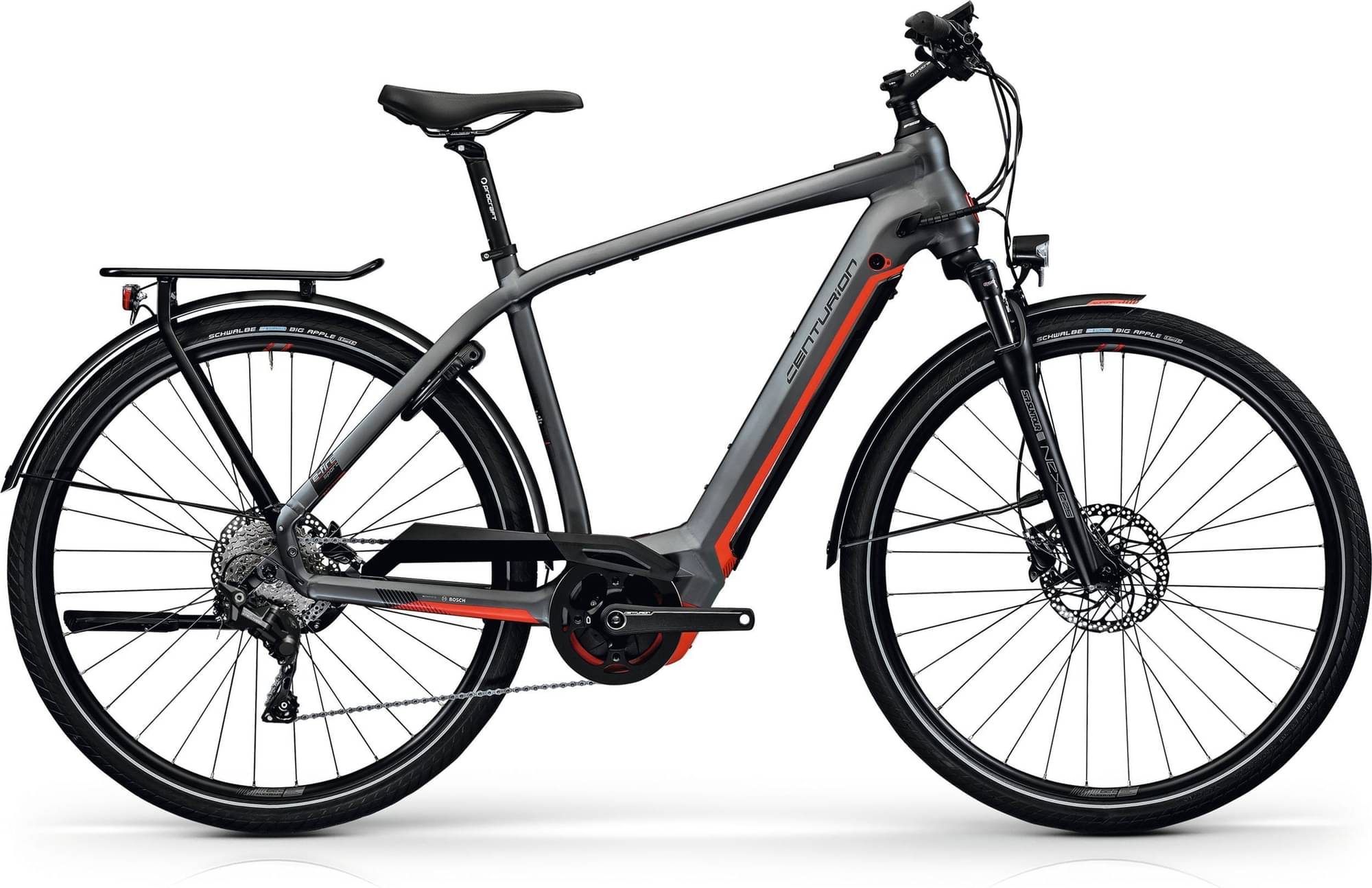

centurion E-Fire Sport R860i 2022
2022 E-bike
Weight | 25.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Sport R G3 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: ABP068A
Suspension Fork
SR Suntour NEX-E25 NLO, Federweg: 63 mm, 1-1/8" straight
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120-DSGS, 1x10
Shift Levers
Shimano Deore, SL-M4100-R, mit Ganganzeige
Cassette
Shimano CS-HG50-10, 11-36T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170 mm (S), 175 mm (M, L, XL), TCK10
Chain
KMC E10 silber, Kettenlänge: 120 Links
Chain Guide
Curana FLY
Pedals
VPE-899
Wheels
Front Hub
Shimano HB-M4050 / Shimano FH-M4050, 9x100 mm, 32H, 10x135 mm, 32H
Rear Hub
Shimano HB-M4050 / Shimano FH-M4050, 9x100 mm, 32H, 10x135 mm, 32H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Big Apple, 28x2.0", Active Line mit Reflex
Brakes
Brakes
Shimano BR-MT200, resin pad
Brake Levers
Shimano BL-MT200
Cockpit
Stem
PROCRAFT Comp II, Winkel: 17°, Länge: 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 640 mm (S), 680 mm (M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Cross Sport II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line Gen3, max. 65 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.61 mm |
| Front Center | 639 mm | 657 mm | 676 mm | 695 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm |
| Trail | 82 mm | 83 mm | 82 mm | 82 mm |
| Stack | 620 mm | 639 mm | 657 mm | 676 mm |
| Reach | 383 mm | 395 mm | 407 mm | 419 mm |
| Top Tube Length | 574 mm | 591 mm | 609 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1102 mm | 1120 mm | 1139 mm | 1158 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Fire Sport R860i belongs to the Centurion E E Fire model. Centurion released 83 e-bikes variations of this model so far. Take a sneak peek at all Centurion E E Fire e-bikes models from 2022, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Commuter e-bikes average weight
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 25.8 kg (56.88 lbs), Centurion e-bike is slightly heavier than average. To sum up, it’s 2.38% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
The E-Fire Sport R860i comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Centurion E-Fire Sport R860i 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Fire Sport R860i comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Centurion E-Fire Sport R860i e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
