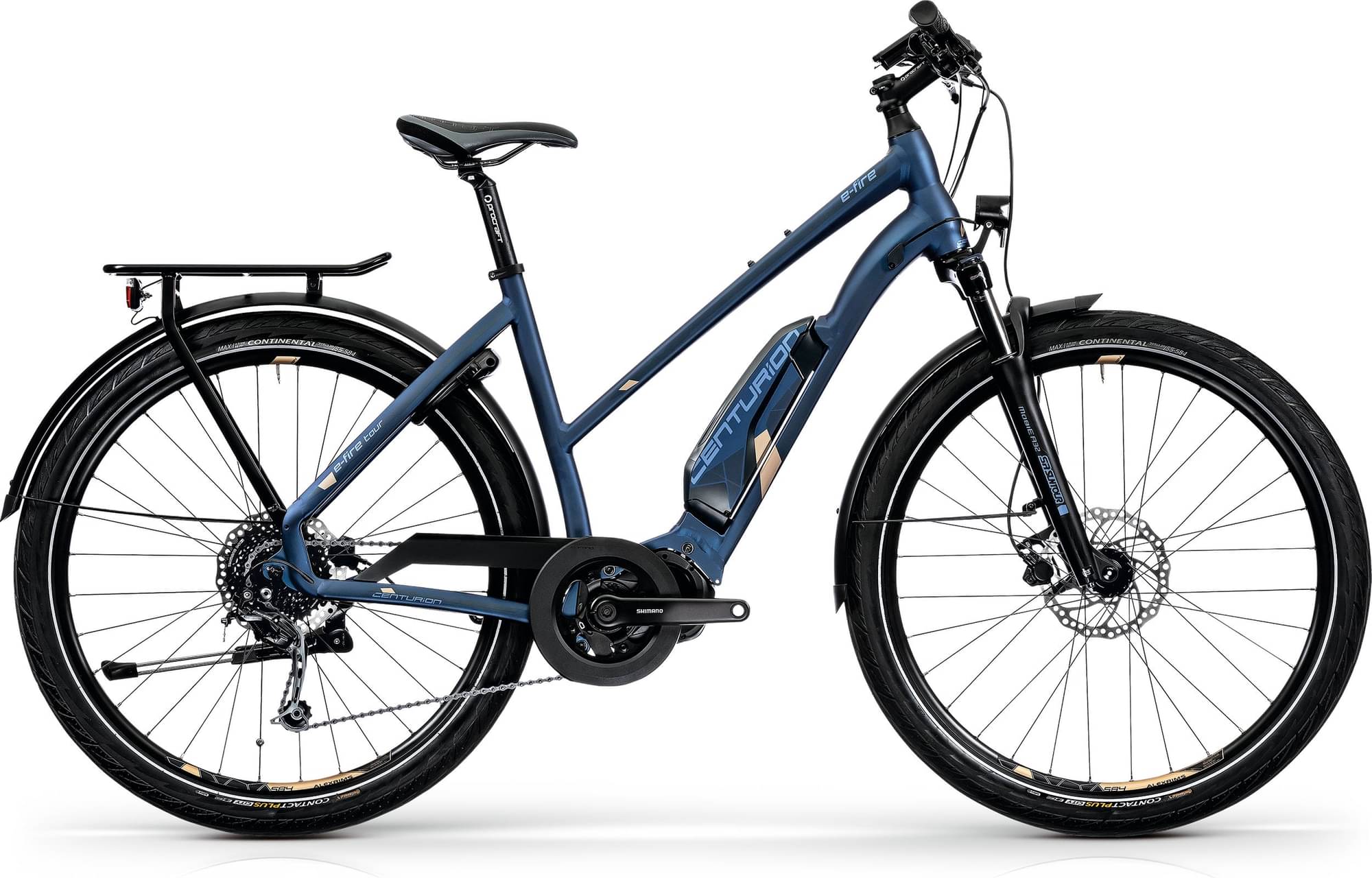

centurion E-Fire Tour F750 2020
2020 E-bike
Weight | 24.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Fork Suntour MOBIE -
Groupset Deore, Altus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano BT-E8010 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Country Tour F
Suspension Fork
SR Suntour Mobie A32 Coil NLO
Drivetrain
Rear Derailleur
Shimano RD-M592-SGS, 1 x 9
Shift Levers
Shimano SL-M2000-R
Cassette
Shimano CS-HG200-9 11-36T
Crank
Shimano FC-E6100, 175L
Chain
KMC X9e EPT
Chain Guide
Curana
Pedals
VPE-891
Wheels
Front Hub
PROCRAFT DC-71, 32H 6-Bolt / Shimano FH-M3050, 32H CL
Rear Hub
PROCRAFT DC-71, 32H 6-Bolt / Shimano FH-M3050, 32H CL
Rims
PROCRAFT by Alexrims MPD23, IW23
Spokes
Stainless 2.0
Tires
Continental Contact City Plus, 55-584, Reflex
Brakes
Brakes
Tektro HD-T285
Brake Levers
Tektro HD-T285
Cockpit
Stem
PROCRAFT AL COMP II, dia: 31.8 17°
Handlebar
PROCRAFT RISER PRO, dia: 31,8 rise: 22 bend: 9° width: 640
Seat
Saddle
PROCRAFT TOUR
Seatpost
PROCRAFT AL PRO OFF. II, dia: 30.9, 350L
Motor & Battery
Motor
Shimano DU-E6100
Battery
Shimano BT-E8010 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.64 mm | 1.64 mm |
| Front Center | 657 mm | 675 mm | 695 mm | 715 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm |
| Trail | 83 mm | 84 mm | 83 mm | 83 mm |
| Stack | 620 mm | 638 mm | 657 mm | 676 mm |
| Reach | 377 mm | 389 mm | 401 mm | 413 mm |
| Top Tube Length | 568 mm | 585 mm | 603 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1093 mm | 1111 mm | 1131 mm | 1151 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Fire Tour F750 is part of the Centurion E E Fire model. Centurion released 83 e-bikes variations of this model so far. Take a sneak peek at all Centurion E E Fire e-bikes models from 2020, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly lighter than average, E-Fire Tour F750 has a weight of 24.2 kg (53.35 lbs). In conclusion, the average Commuter e-bike weighs 4.13% more than E-Fire Tour F750.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the E-Fire Tour F750 e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
