Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Tour R G4 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: ABP067A
Suspension Fork
SR Suntour MOBIE25 AIR LOR, Federweg: 63 mm, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8000-GS, 1x11
Shift Levers
Shimano Deore, SL-5100-IR, I-Spec EV, mit Ganganzeige
Cassette
Shimano Deore, CS-M5100-11, 11-42T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 170 mm (S), 175 mm (M, L, XL), TCK10
Chain
SRAM PC-1110, Kettenlänge: 118 Links
Chain Guide
Curana FLY
Pedals
VPE-899
Wheels
Front Hub
Shimano Deore, HB-M6010, 15x100 mm, 32H, FH-M6000, 10x135 mm, 32H
Rear Hub
Shimano Deore, HB-M6010, 15x100 mm, 32H, FH-M6000, 10x135 mm, 32H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
DT Swiss Industry 2.0
Tires
Schwalbe Marathon GT, 28x2.0", Peformance Line mit Reflex
Brakes
Brakes
Shimano BR-MT410, resin pad
Brake Levers
Shimano BL-M4100
Cockpit
Stem
PROCRAFT Comp II, Winkel: 17°, Länge: 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 640 mm (S), 680 mm (M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Tour II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line CX, max. 85 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 3.841 mm | 3.957 mm | 4.073 mm | 4.183 mm |
| Stack | 626 mm | 645 mm | 664 mm | 682 mm |
| Top Tube Length | 572 mm | 589 mm | 607 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1083 mm | 1101 mm | 1121 mm | 1140 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

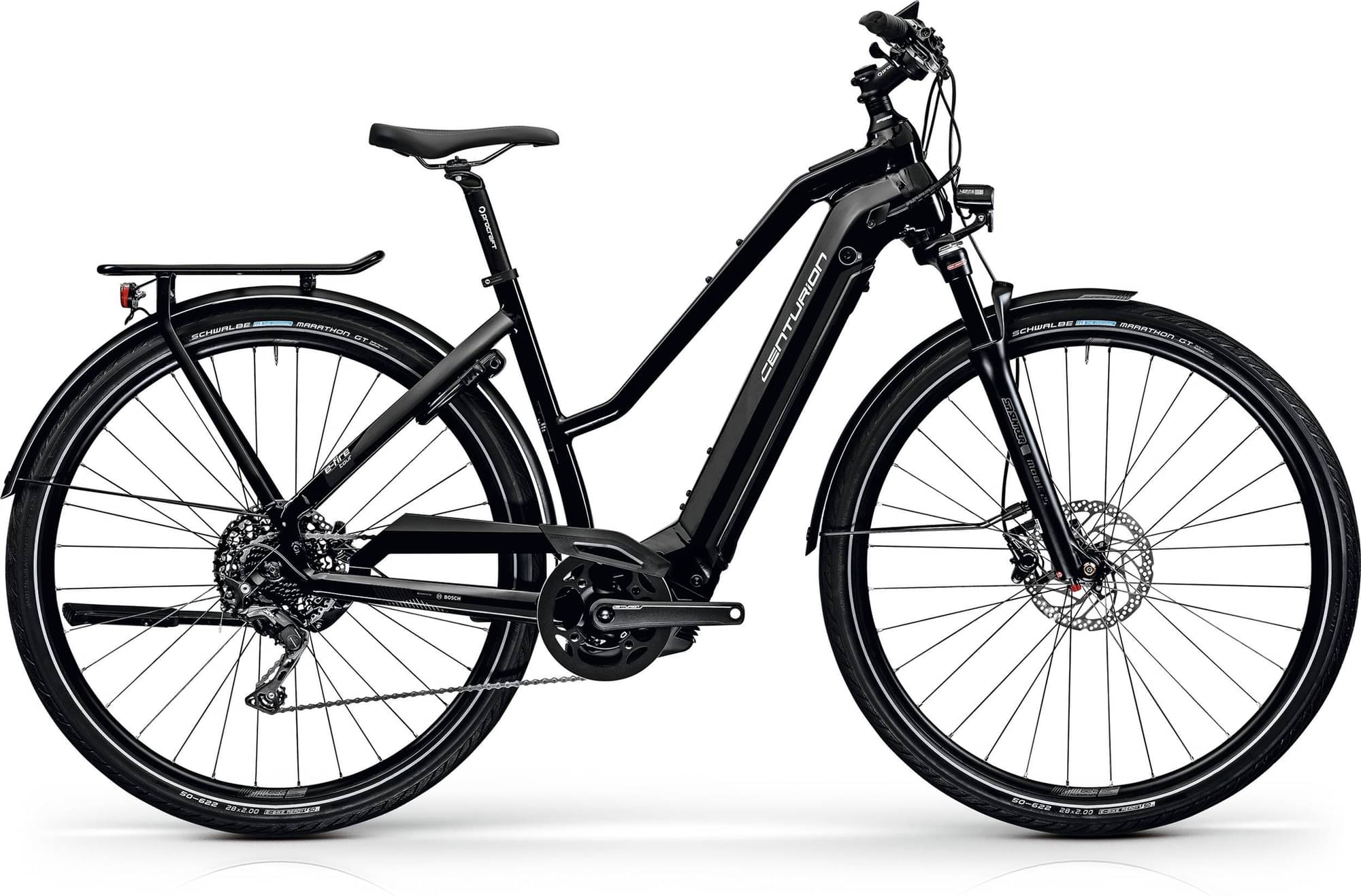

E-Fire Tour R2600i SMC belongs to the Centurion E E Fire model. 83 e-bikes variations carry this model name so far. You can easily view all of the Centurion E E Fire e-bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the E-Fire Tour R2600i SMC e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Centurion E-Fire Tour R2600i SMC is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
