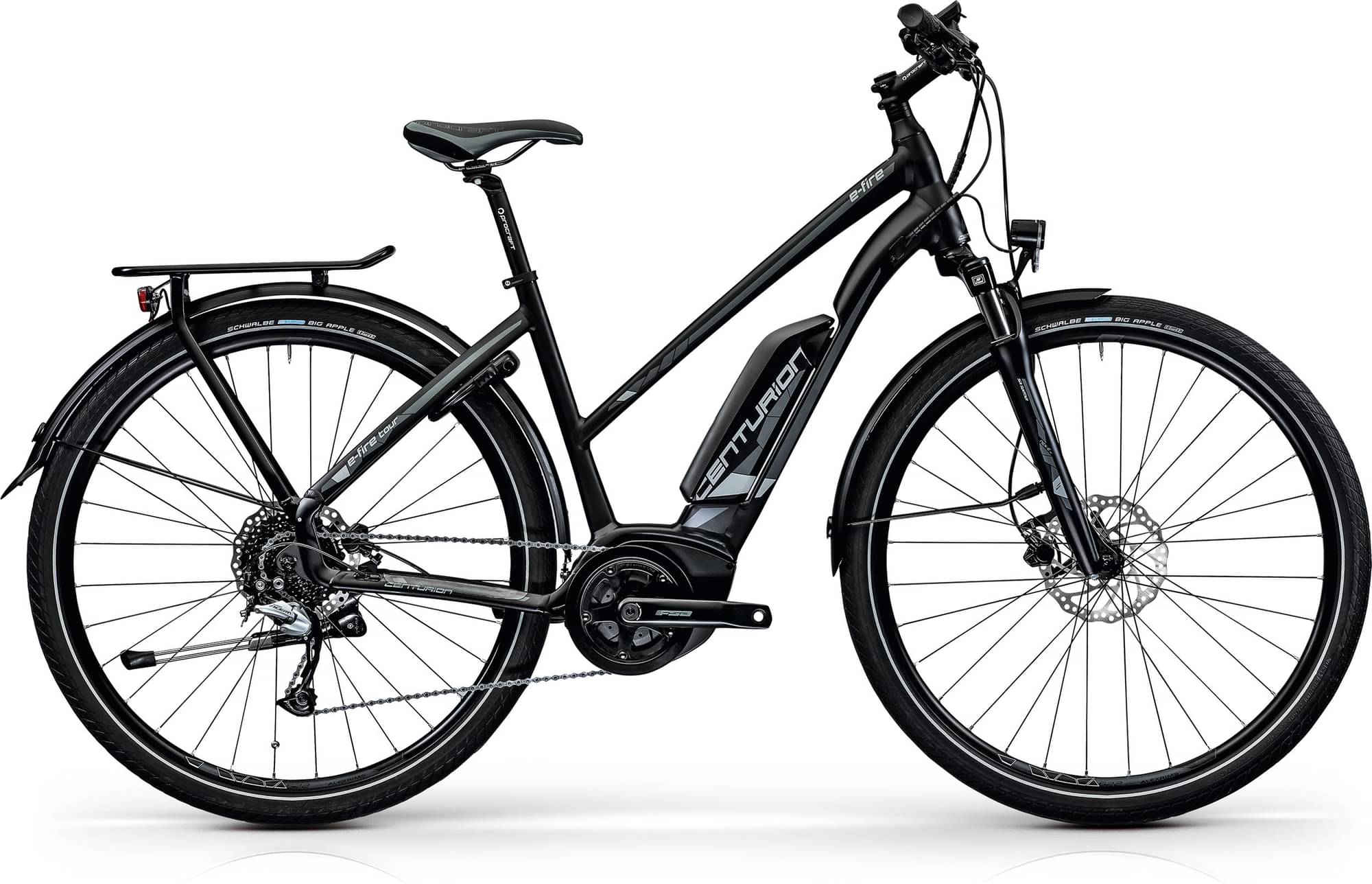

centurion E-Fire Tour R550 2020
2020 E-bike
Weight | 22.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork Suntour NEX -
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Tour R G2
Suspension Fork
SR Suntour NEX-E25
Drivetrain
Rear Derailleur
Shimano RD-M3000-SGS, 1 x 9
Shift Levers
Shimano SL-M2000-R
Cassette
Shimano CS-HG200-9 11-36T
Crank
Centurion Comp Gen3. matt schwarz, 170L [S], 175L [M, L, XL]
Pedals
VPE-899
Wheels
Front Hub
Shimano HB-M3050, 32H CL / Shimano FH-M3050, 32H CL
Rear Hub
Shimano HB-M3050, 32H CL / Shimano FH-M3050, 32H CL
Rims
PROCRAFT by Alexrims MPD23, IW23
Spokes
Stainless 2.0
Tires
Schwalbe Big Apple, 50-622, Reflex
Brakes
Brakes
Tektro HD-T275
Brake Levers
Tektro HD-T275
Cockpit
Stem
PROCRAFT AL COMP, dia: 31.8 17°
Handlebar
PROCRAFT RISER PRO, dia: 31,8 rise: 22 bend: 9° width: 640 [S], 680 [M, L, XL]
Seat
Saddle
PROCRAFT Cross Sport Lady
Seatpost
PROCRAFT AL PRO, dia: 30.9, 350L
Motor & Battery
Motor
Bosch Active Line Plus Gen3
Battery
Bosch PowerPack 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.66 mm | 1.67 mm | 1.67 mm |
| Front Center | 631 mm | 651 mm | 664 mm | 682 mm |
| Rake | 43 mm | 42 mm | 42 mm | 42 mm |
| Trail | 84 mm | 85 mm | 82 mm | 82 mm |
| Stack | 620 mm | 639 mm | 660 mm | 679 mm |
| Reach | 371 mm | 385 mm | 396 mm | 407 mm |
| Top Tube Length | 567 mm | 586 mm | 604 mm | 621 mm |
| Seat Tube Angle | 72.6 ° | 72.6 ° | 72.6 ° | 72.6 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.6 ° | 69.6 ° | 70.1 ° | 70.1 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1084 mm | 1104 mm | 1117 mm | 1135 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
E-Fire Tour R550 completes the Centurion E E Fire model. There are 83 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
E-Fire Tour R550 weighs 22.7 kg (50.04 lbs) and is considerably lighter than the average. In conclusion, the average Commuter e-bike weighs 11.01% more than E-Fire Tour R550.
Overview of components
Fork
The E-Fire Tour R550 comes factory-installed with the Suntour NEX fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the E-Fire Tour R550 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Centurion E-Fire Tour R550 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Centurion E-Fire Tour R550 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
