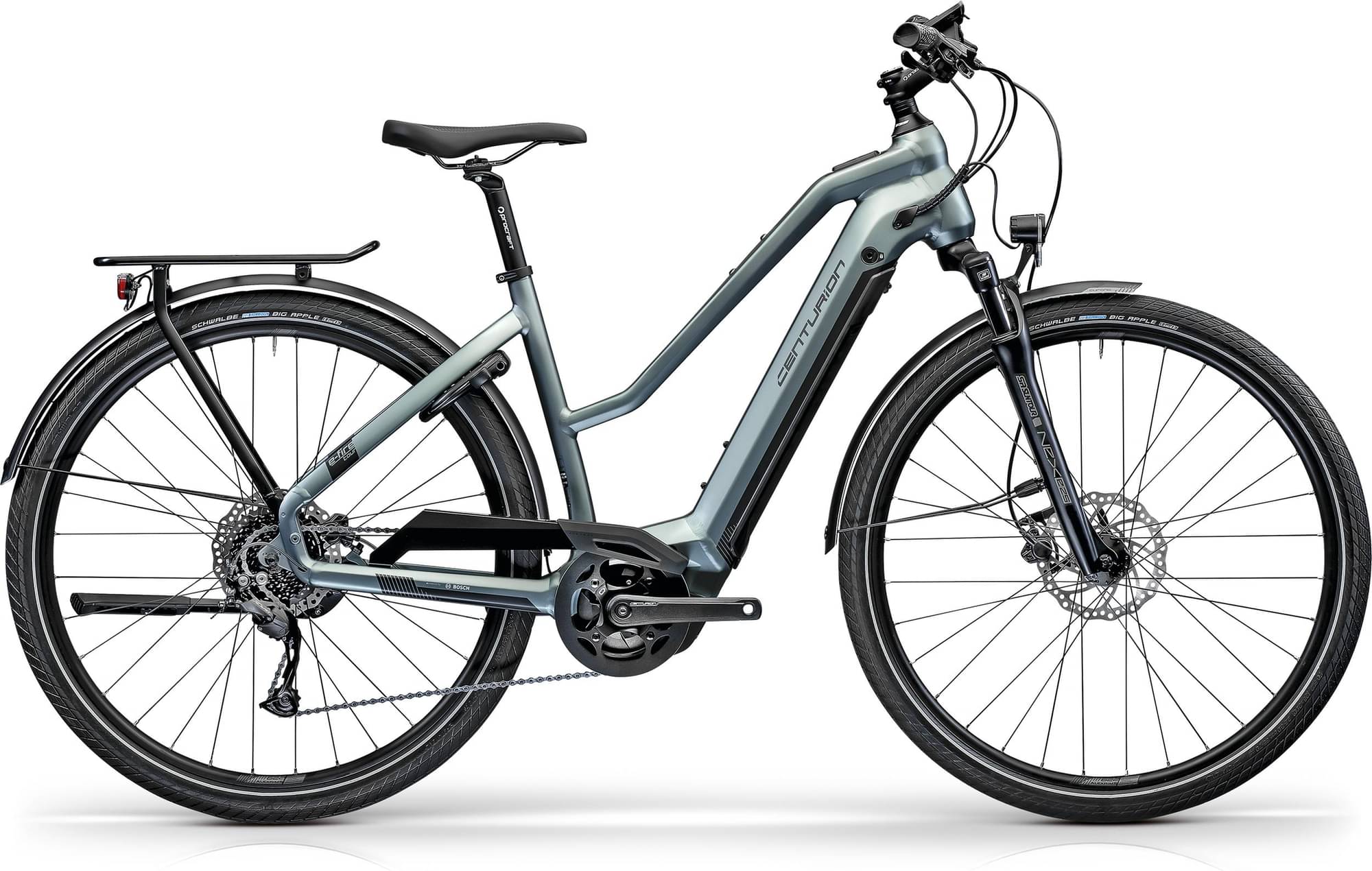

centurion E-Fire Tour R750i 2022
2022 E-bike
Weight | 25.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Tour R G3 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: ABP069A
Suspension Fork
SR Suntour NEX-E25, Federweg: 63 mm, 1-1/8" straight
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100-SGS, 1x9
Shift Levers
Shimano Alivio, SL-M3100-R, mit Ganganzeige
Cassette
Shimano CS-HG200-9, 11-36T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170 mm (S), 175 mm (M, L, XL), TCK10
Chain
KMC E9 silber/schwarz, Kettenlänge: 120 Links
Chain Guide
Curana FLY
Pedals
VPE-899
Wheels
Front Hub
Shimano HB-TX506 / Shimano FH-TX506, 9x100 mm, 32H, 10x135 mm, 32H
Rear Hub
Shimano HB-TX506 / Shimano FH-TX506, 9x100 mm, 32H, 10x135 mm, 32H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Big Apple, 28x2.0", Active Line mit Reflex
Brakes
Brakes
Tektro HD-T275, organic pad
Brake Levers
Tektro HD-T275
Cockpit
Stem
PROCRAFT Comp II, Winkel: 17°, Länge: 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 640 mm (S), 680 mm (M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Tour II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line Gen3, max. 65 Nm, 250 W
Battery
Bosch PowerTube 500 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.65 mm | 1.65 mm | 1.64 mm |
| Front Center | 645 mm | 664 mm | 683 mm | 701 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 626 mm | 645 mm | 664 mm | 682 mm |
| Reach | 379 mm | 391 mm | 403 mm | 415 mm |
| Top Tube Length | 572 mm | 589 mm | 607 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1108 mm | 1127 mm | 1146 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
E-Fire Tour R750i is part of the Centurion E E Fire model. Centurion released 83 e-bikes variations of this model so far. Take a sneak peek at all Centurion E E Fire e-bikes models from 2022, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, E-Fire Tour R750i has a weight of 25.8 kg (56.88 lbs). In short, the average Commuter e-bike weight is 2.38% lower than this one.
E-Fire Tour R750i components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on E-Fire Tour R750i are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion E-Fire Tour R750i has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Centurion E-Fire Tour R750i e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
