Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube 625 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Fire Tour R G3 intube, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 10x135 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: ABP069A
Suspension Fork
SR Suntour NEX-E25, Federweg: 63 mm, 1-1/8" straight
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100-SGS, 1x9
Shift Levers
Shimano Alivio, SL-M3100-R, mit Ganganzeige
Cassette
Shimano CS-HG200-9, 11-36T
Crank
CENTURION R Comp Gen3, mattschwarz, Länge: 170 mm (S), 175 mm (M, L, XL), TCK10
Chain
KMC E9 silber/schwarz, Kettenlänge: 120 Links
Chain Guide
Curana FLY
Pedals
VPE-899
Wheels
Front Hub
Shimano HB-TX506 / Shimano FH-TX506, 9x100 mm, 32H, 10x135 mm, 32H
Rear Hub
Shimano HB-TX506 / Shimano FH-TX506, 9x100 mm, 32H, 10x135 mm, 32H
Rims
PROCRAFT MD23, IW 23 mm
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Big Apple, 28x2.0", Active Line mit Reflex
Brakes
Brakes
Tektro HD-T275, organic pad
Brake Levers
Tektro HD-T275
Cockpit
Stem
PROCRAFT Comp II, Winkel: 17°, Länge: 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 640 mm (S), 680 mm (M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Tour II
Seatpost
PROCRAFT Pro, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
Bosch Performance Line Gen3, max. 65 Nm, 250 W
Battery
Bosch PowerTube 625 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 3.841 mm | 3.957 mm | 4.073 mm | 4.183 mm |
| Stack | 626 mm | 645 mm | 664 mm | 682 mm |
| Top Tube Length | 572 mm | 589 mm | 607 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1108 mm | 1127 mm | 1146 mm | 1165 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

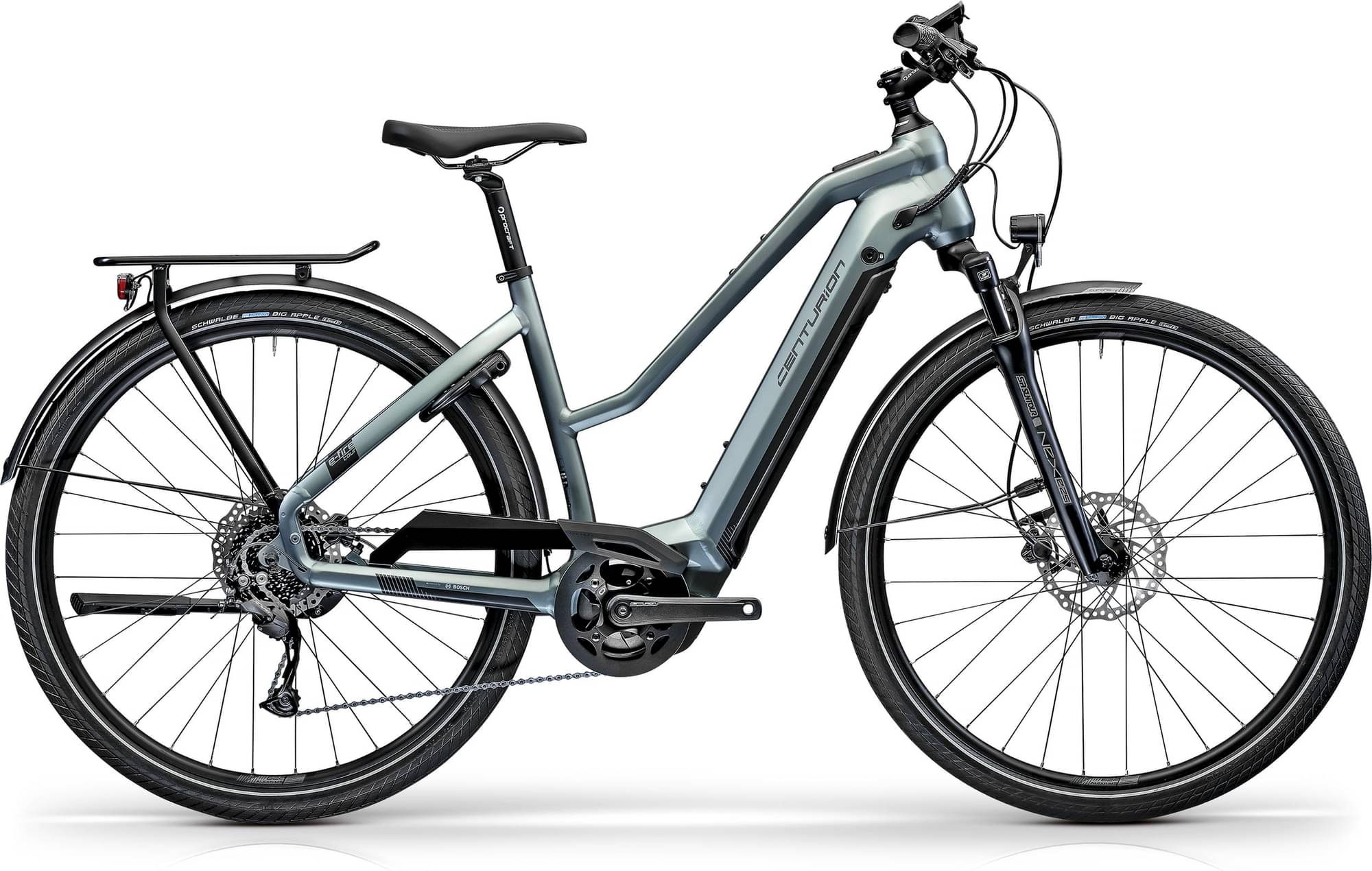

E-Fire Tour R760i is part of the Centurion E E Fire model. Centurion launched 83 e-bikes of this model so far. You can easily view all of the Centurion E E Fire e-bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
E-Fire Tour R760i components
Fork
Centurion E-Fire Tour R760i 2023 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The E-Fire Tour R760i 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Fire Tour R760i has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
