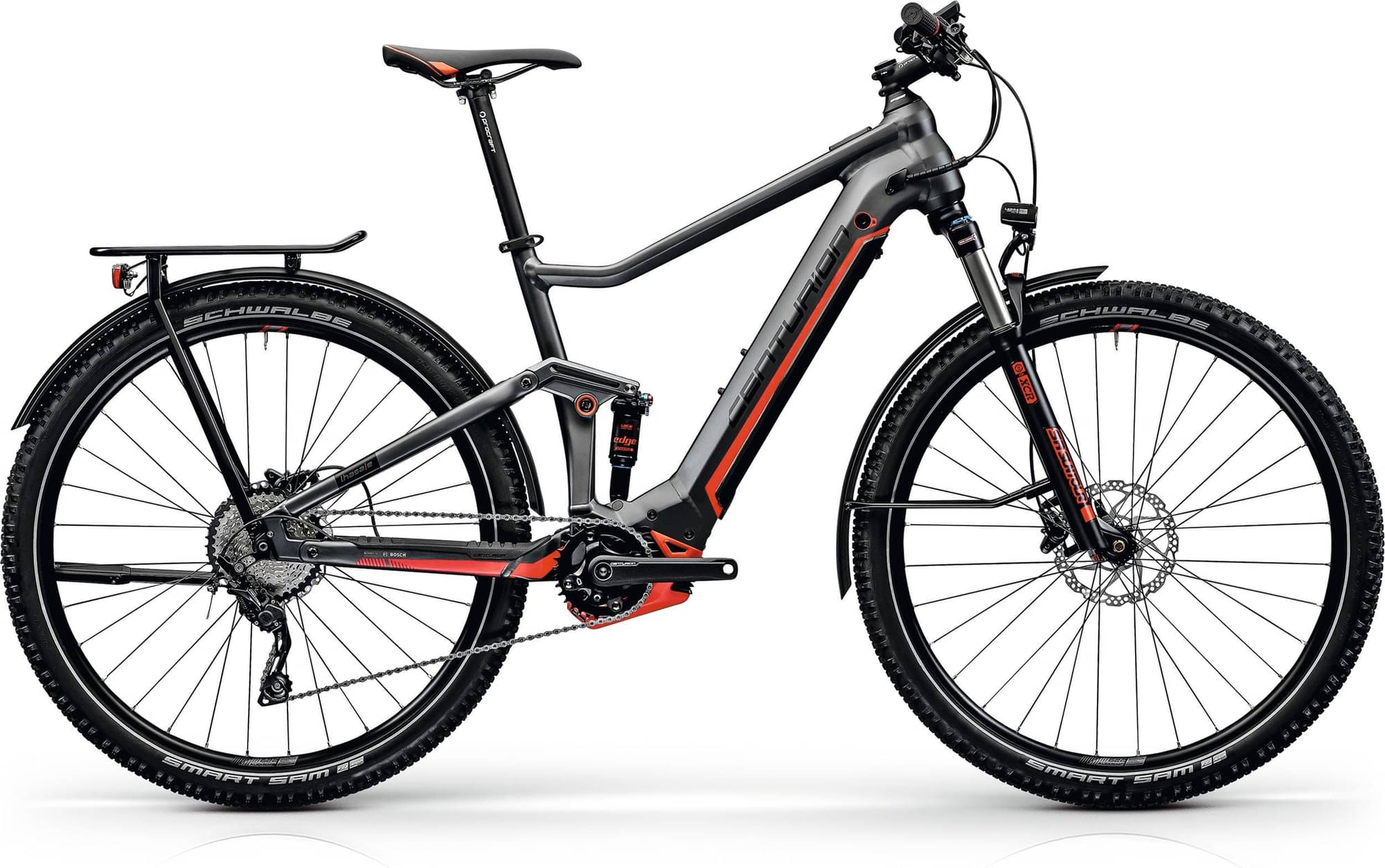

centurion Lhasa E R750i EQ 2022
2022 E-bike
Weight | 24.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lhasa R intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm, Rahmenkennung: 27.5": UBP043A, 29": TBP034A
Suspension Fork
SR Suntour XCR34 AIR BOOST LOR, Federweg: 100 mm, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120-DSGS, 1x10
Shift Levers
Shimano Deore, SL-M4100-R
Cassette
Shimano Deore, CS-M4100-10, 11-42T
Crank
CENTURION R Comp Gen4, mattschwarz, Länge: 170 mm (XS, S), 175 mm (M, L, XL), TCK10
Chain
KMC E10 silber, Kettenlänge: 29": 118 Links, 27.5": 116 Links
Chain Guide
CENTURION Trail R, passend für Bosch Performance Line CX Gen4
Pedals
VP-537
Wheels
Front Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
Shimano HB-MT400-B / Shimano FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD25, IW 25 mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe Smart Sam, 29/27.5x2.25", Performance Line mit Reflex
Brakes
Brakes
Shimano BR-MT410, resin pad
Brake Levers
Shimano BL-MT401
Cockpit
Stem
PROCRAFT Comp II, Winkel: 7°, Länge: 60 mm (XS), 70 mm (S), 80 mm (M), 90 mm (L), 100 mm (XL)
Handlebar
PROCRAFT Riser Pro, Durchmesser: 31.8 mm, Breite: 680 mm (XS), 720 mm (S, M, L, XL), Rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, Durchmesser: 30.9 mm, Länge: 350 mm (XS, S, M), 400 mm (L, XL)
Motor & Battery
Motor
Bosch Performance Line CX, max. 85 Nm, 250 W
Battery
Bosch PowerTube 500 Wh
Charger
Bosch Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.53 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 335 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 689 mm | 693 mm | 714 mm | 733 mm | 752 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 101 mm | 103 mm | 100 mm | 98 mm | 97 mm |
| Stack | 603 mm | 626 mm | 646 mm | 666 mm | 685 mm |
| Reach | 392 mm | 407 mm | 422 mm | 437 mm | 452 mm |
| Top Tube Length | 554 mm | 575 mm | 596 mm | 616 mm | 636 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 67.25 ° | 68.25 ° | 68.5 ° | 68.75 ° | 69 ° |
| Head Tube Length | 150 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 452 mm | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1140 mm | 1162 mm | 1183 mm | 1202 mm | 1221 mm |
| Bottom Bracket Drop | 20 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Lhasa E R750i EQ belongs to the Centurion E Lhasa model. There are 26 e-bikes that carry this model name. You can easily view all of the Centurion E Lhasa e-bikes models from 2022, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Lhasa E R750i EQ weighs 24.8 kg (54.67 lbs) and is a bit heavier than the average. In conclusion, the average Crosscountry e-bike weighs 6.85% less than Lhasa E R750i EQ.
Overview of components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Lhasa E R750i EQ model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion Lhasa E R750i EQ has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Centurion Lhasa E R750i EQ e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
