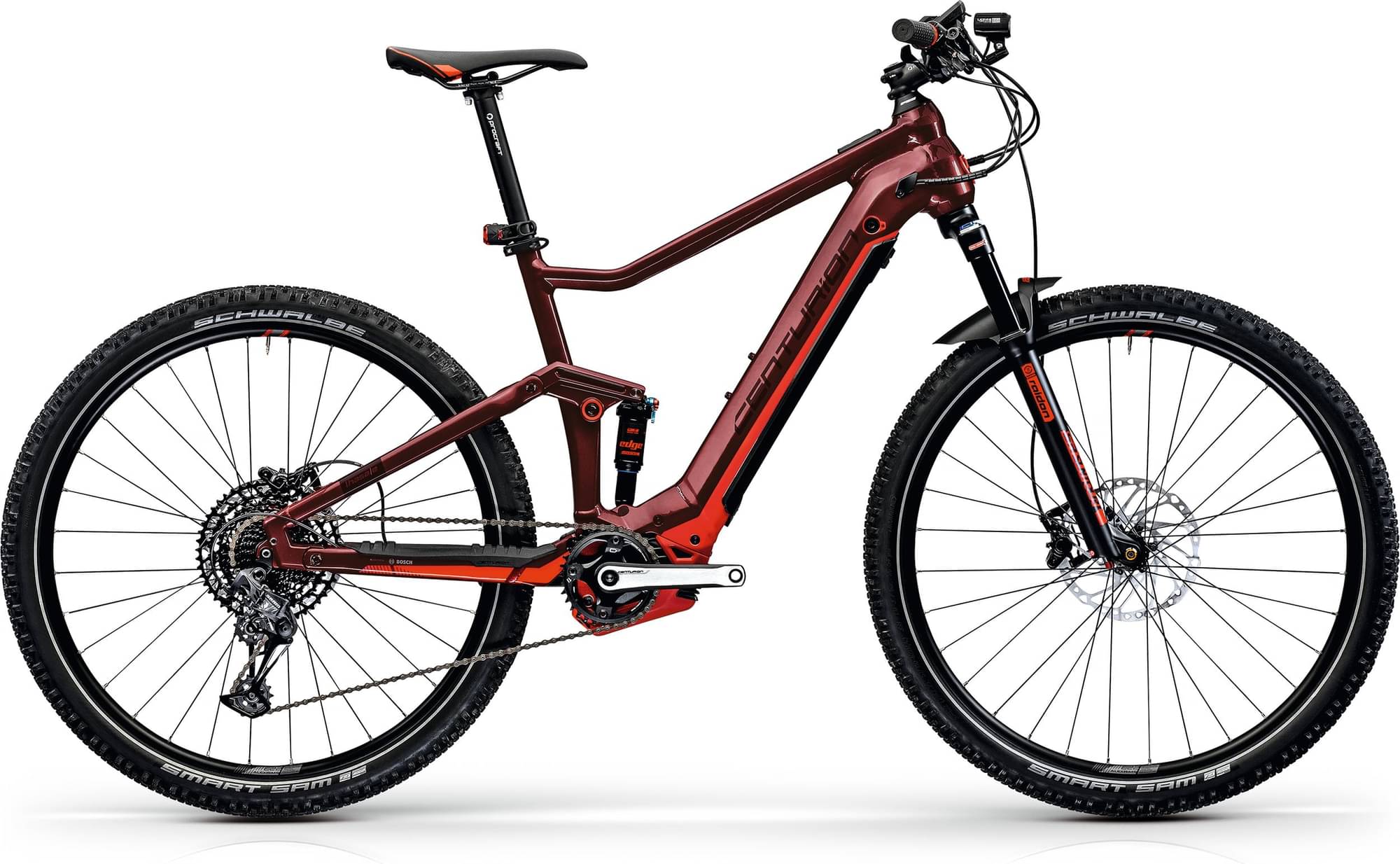

centurion Lhasa E R860i / R850i 2022
2022 E-bike
Weight | 23.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625 Wh [S-XL] / 500 Wh [XS] -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lhasa R intube, Material: Aluminium, Steuerrohr: 1.5" straight, Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 180 mm
Suspension Fork
SR SUNTOUR RAIDON34 BOOST LOR, Federweg: 100 mm, 1.5" tapered, Download Setup-Empfehlung (PDF)
Drivetrain
Rear Derailleur
SRAM SX Eagle, 1x12
Shift Levers
SRAM SX Eagle single click
Cassette
SRAM SX Eagle, CS PG-1210 Eagle, 11-50T
Crank
CENTURION Pro Gen4, mattschwarz/Alu gebürstet, Länge: 170 mm [XS, S], 175 mm [M, L, XL]
Chain
SRAM SX Eagle, CN SX Eagle-12
Chain Guide
CENTURION Trail R, passend für BOSCH Performance Line CX Gen4
Pedals
VP-993
Wheels
Front Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
SHIMANO HB-MT400-B / SHIMANO FH-MT400-B, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD27, IW27, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
SCHWALBE Smart Sam 27.5/29x2.25", Performance Line mit Reflex
Brakes
Brakes
SHIMANO Deore, BR-M6100, resin pad
Brake Levers
SHIMANO Deore, BL-M6100
Cockpit
Stem
PROCRAFT Comp II, 7°
Handlebar
PROCRAFT Riser Pro, dia: 31.8 mm, 680 mm [XS], 720 mm [S, M, L, XL], rise: 22 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Pro II, dia: 30.9 mm, 350 mm [XS, S, M], 400 mm [L, XL]
Motor & Battery
Motor
BOSCH Performance Line CX Gen4, 85 Nm, 250 W
Battery
BOSCH PowerTube 625 Wh [S-XL] / 500 Wh [XS]
Charger
BOSCH Standard Charger, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.54 mm | 1.53 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 335 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 689 mm | 693 mm | 714 mm | 733 mm | 752 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 101 mm | 103 mm | 100 mm | 98 mm | 97 mm |
| Stack | 603 mm | 626 mm | 646 mm | 666 mm | 685 mm |
| Reach | 392 mm | 407 mm | 422 mm | 437 mm | 452 mm |
| Top Tube Length | 554 mm | 575 mm | 596 mm | 616 mm | 636 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 67.25 ° | 68.25 ° | 68.5 ° | 68.75 ° | 69 ° |
| Head Tube Length | 150 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 452 mm | 472 mm | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1140 mm | 1162 mm | 1183 mm | 1202 mm | 1221 mm |
| Bottom Bracket Drop | 20 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Lhasa E R860i / R850i is a Centurion E Lhasa model. Centurion released 26 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.1 kg (50.93 lbs), the Lhasa E R860i / R850i model is slightly lighter than average. In conclusion, the average Crosscountry e-bike weighs 0.48% more than Lhasa E R860i / R850i.
Lhasa E R860i / R850i components
Fork
The Lhasa E R860i / R850i comes factory-installed with the Suntour RAIDON fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Lhasa E R860i / R850i e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion Lhasa E R860i / R850i has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
