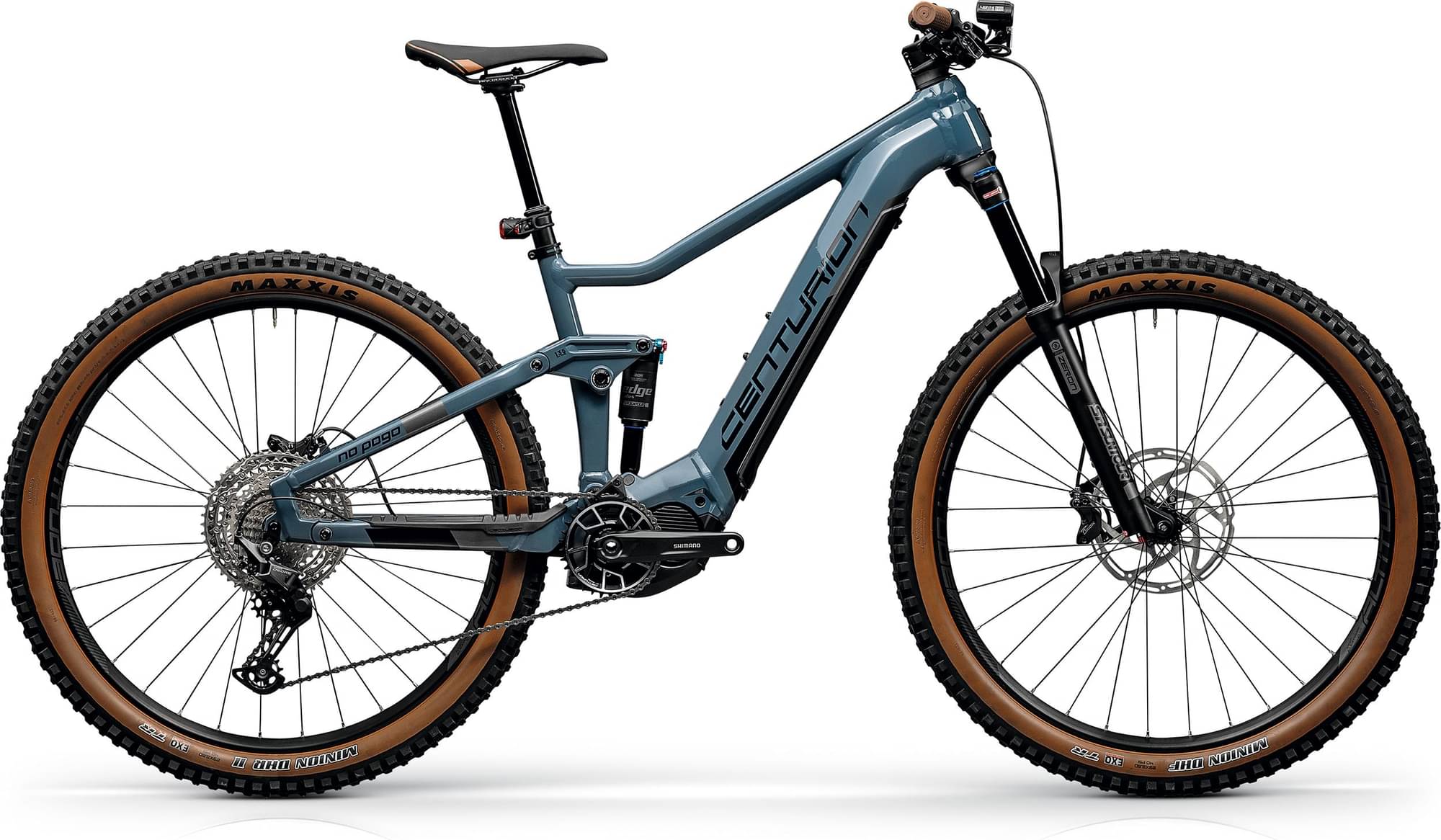

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork Suntour Zeron
-
Groupset CUES, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery SHIMANO BT-EN806 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo F intube, Material: Aluminium, 29", Steuerrohr: 1.5" - 1.8" tapered, Ausfallende: 12x148mm, Bremsaufnahme: Postmount 203mm, Rahmenkennung: TBP041D
Suspension Fork
SR SUNTOUR Zeron35 Air LOR, Federweg: 140mm, 1.5" tapered, Rake: 44mm
Drivetrain
Rear Derailleur
SHIMANO CUES, RD-U6000, 1x11
Shift Levers
SHIMANO CUES, SL-U8000-11R
Cassette
SHIMANO CS-LG400-11, 11-50T
Crank
SHIMANO FC-EM600, Länge: 165mm
Chain
SHIMANO CN-LG500, Linkglide
Chain Guide
CENTURION Trail F, passend für Shimano EP801/EP6/EP800
Pedals
VP VPE-527
Wheels
Front Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rear Hub
SHIMANO HB-TC500-15-B / SHIMANO FH-TC500-HM-B, 15x110mm, 32H, 12x148mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
MAXXIS Minion DHF, 29x2.6" / MAXXIS Minion DHR II, 29x2.6", tubless ready, 60 TPI, EXO
Brakes
Brakes
TEKTRO Orion 4-Kolben, HD-M750, organic pad
Brake Levers
TEKTRO Orion, HD-M750
Cockpit
Stem
PROCRAFT Trail Expert 35 AICR, Winkel: 0°, Länge: 50mm
Handlebar
PROCRAFT Trail Pro 35 ICR, Durchmesser: 35mm, Breite: 780mm, Rise: 20mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Drop Pro, Durchmesser: 30.9mm, Hub: 125mm (XS/S), 150mm (M), 170mm (L, XL), Remote: PROCRAFT I-Spec-II
Motor & Battery
Motor
SHIMANO EP600, max. 85 Nm, 250 W
Battery
SHIMANO BT-EN806 630 Wh
Charger
SHIMANO EC-E8004, 4 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 4.203 mm | 4.493 mm | 4.763 mm | 5.015 mm |
| Stack | 629 mm | 636 mm | 650 | 664 mm |
| Top Tube Length | 576 mm | 608 mm | 636 mm | 665 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 102.5 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1195 mm | 1228 mm | 1259 mm | 1291 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
No Pogo F800i belongs to the Centurion E No model. 25 e-bikes variations carry this model name so far. Take a sneak peek at all Centurion E No e-bikes models from 2023, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
No Pogo F800i components
Fork
The Suntour Zeron is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the No Pogo F800i e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The No Pogo F800i comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
Centurion No Pogo F800i includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
