Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Fork Suntour Zeron
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano BT-E8036 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
No Pogo F intube, Material: Aluminium, 29", Steuerrohr: 1.5"-1.8", Ausfallende: 12x148 mm, Bremsaufnahme: Postmount 203 mm, Rahmenkennung: TBP041A
Suspension Fork
SR Suntour ZERON35 AIR LOR, Federweg: 140 mm, LOR crown adjust, 1.5" tapered, Rake: 44 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M5100-SGS, 1x11
Shift Levers
Shimano Deore, SL-M5100-R
Cassette
Shimano Deore, CS-M5100-11, 11-51T
Crank
Shimano FC-EM600, Länge: 165 mm
Chain
Shimano Deore, CN-HG601-11, Kettenlänge: 120 Links
Chain Guide
CENTURION Trail F, passend für Shimano EP800
Pedals
VP-527
Wheels
Front Hub
PROCRAFT 6-Bolt 15 boost light / PROCRAFT 6-Bolt 12 boost E-Hub, 15x110 mm, 32H, 12x148 mm, 32H
Rear Hub
PROCRAFT 6-Bolt 15 boost light / PROCRAFT 6-Bolt 12 boost E-Hub, 15x110 mm, 32H, 12x148 mm, 32H
Rims
PROCRAFT Altitude MD30, IW 30 mm, tubeless ready
Spokes
PROCRAFT stainless 2.0
Tires
Maxxis Minion DHF, 29x2.6" / Maxxis Minion DHR II, 29x2.6", tubless ready, EXO
Brakes
Brakes
Tektro ORION 4-Kolben, HD-M750, organic pad
Brake Levers
Tektro ORION, HD-M750
Cockpit
Stem
PROCRAFT Trail Expert 35 AICR, Winkel: 0°, Länge: 50 mm
Handlebar
PROCRAFT Trail Pro 35 ICR, Durchmesser: 35 mm, Breite: 780 mm, Rise: 20 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Drop Pro, Durchmesser: 30.9 mm, Hub: 125 mm (XS/S), 150 mm (M), 170 mm (L, XL), Remote: PROCRAFT I-Spec-II
Motor & Battery
Motor
Shimano EP8, DU-EP800, max. 85Nm, 250W
Battery
Shimano BT-E8036 630Wh
Charger
Shimano EC-E8004, 4 Ampere, w/ adapter for charger SM-BTE80
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.39 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 730 mm | 763 mm | 794 mm | 826 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 119 mm |
| Stack | 629 mm | 636 mm | 650 | 664 mm |
| Reach | 427 mm | 457 mm | 482 mm | 507 mm |
| Top Tube Length | 576 mm | 608 mm | 636 mm | 665 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 102.5 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1195 mm | 1228 mm | 1259 mm | 1291 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

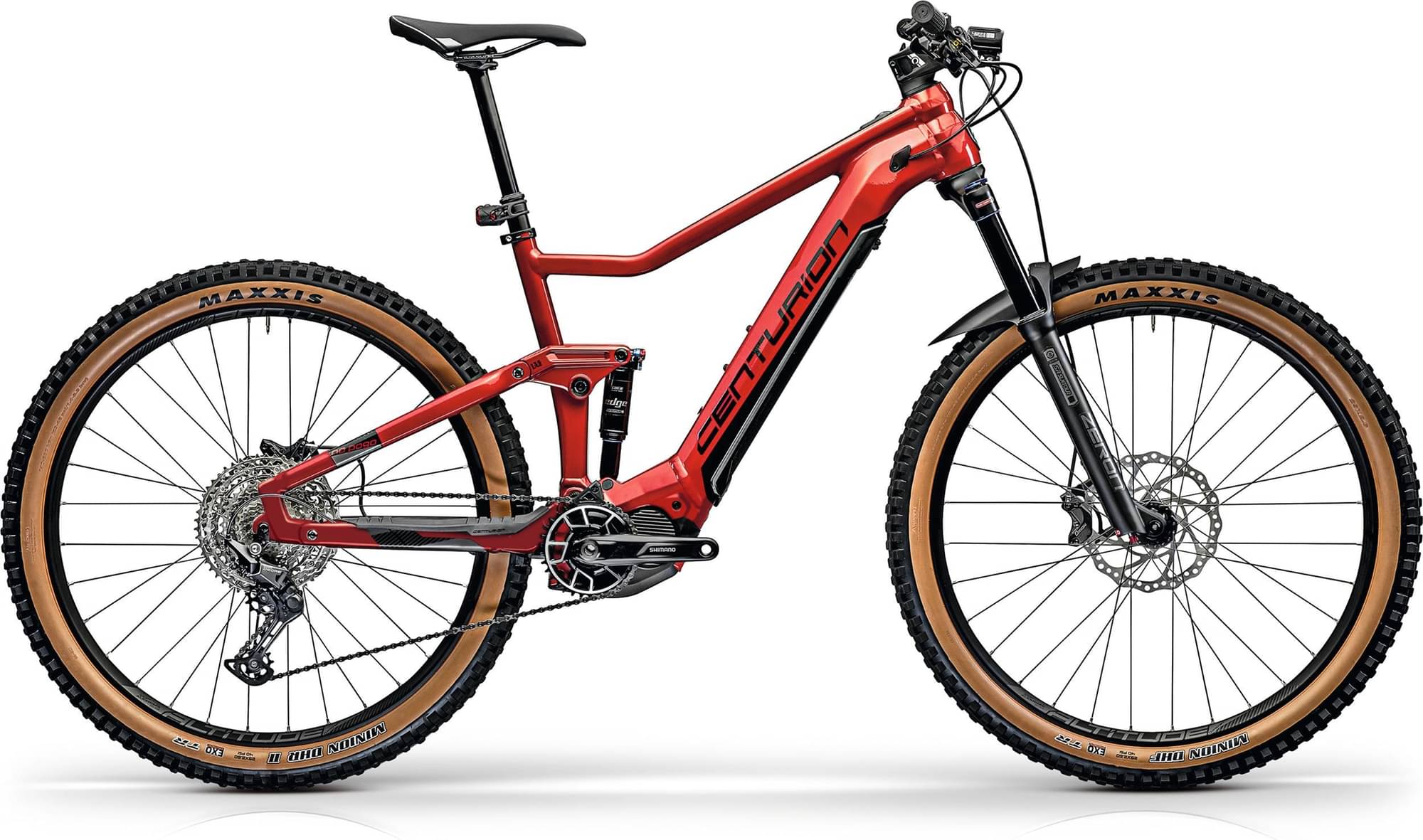

No Pogo F860i is a Centurion E No model. Centurion released 25 e-bikes variations of this model so far. Take a sneak peek at all Centurion E No e-bikes models from 2022, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 25.1 kg (55.34 lbs), the No Pogo F860i model is a bit heavier than average. In other words, this model is 5.91% heavier than the average Trail e-bike.
No Pogo F860i components
Fork
Centurion No Pogo F860i 2022 e-bike is equipped with the Suntour Zeron fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The No Pogo F860i 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion No Pogo F860i has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Centurion model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
