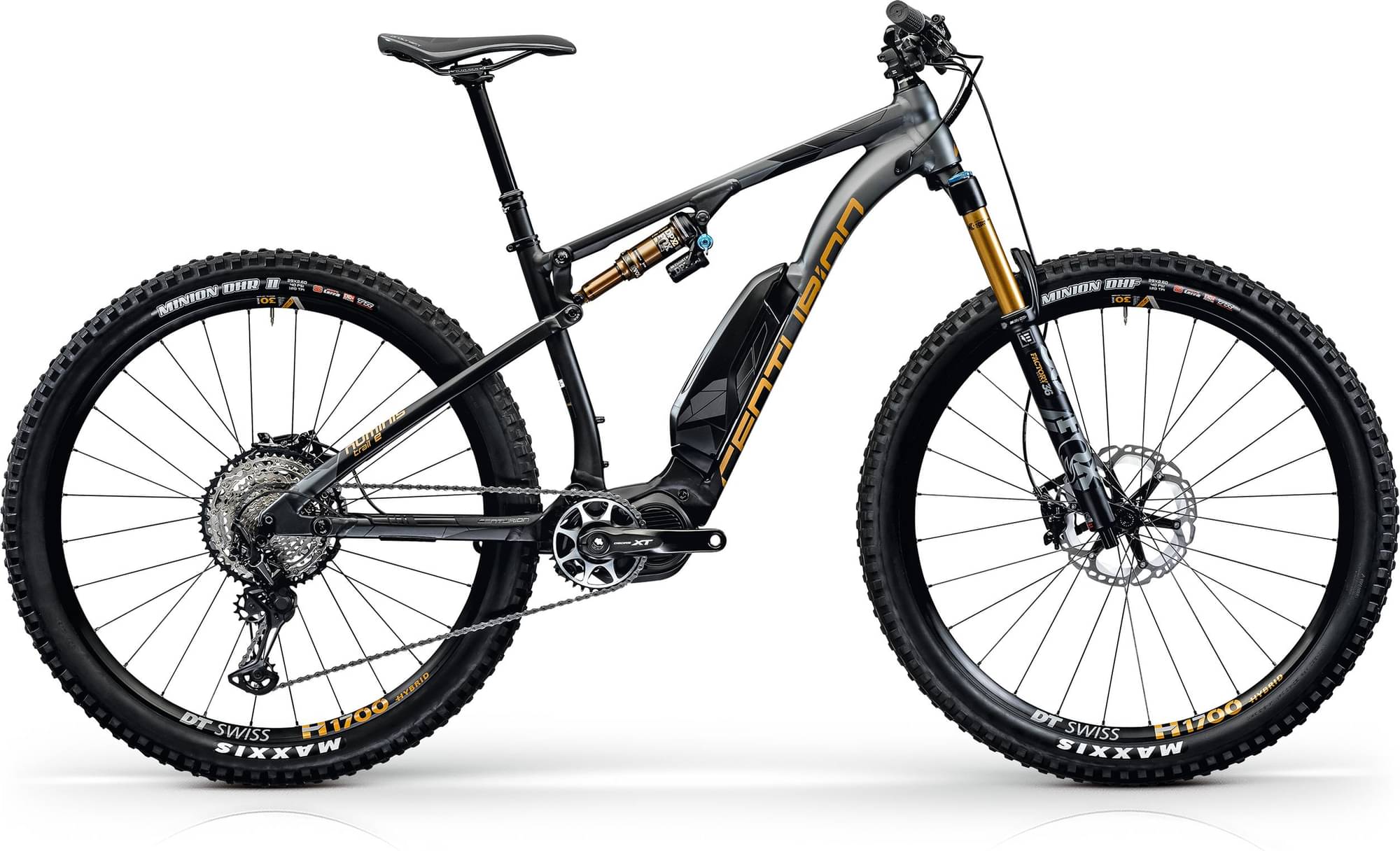

centurion Numinis Trail E F3500 2020
2020 E-bike
Weight | 21.4 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Fork Fox Factory Float 36 -
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8010 500Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Numinis Trail E
Suspension Fork
FOX 36 Float Factory FIT GRIP2 Crown adjust
Drivetrain
Rear Derailleur
Shimano RD-M8100-SGS, 1 x 12
Shift Levers
Shimano SL-M8100-IR
Cassette
Shimano CS-M7100-12 10-51T
Crank
Shimano FC-M8050, 165L
Chain
Shimano CN-M8100
Pedals
VPE-993
Wheels
Rims
DT Swiss H1700 Spline, IW30, TR
Tires
Maxxis Minion DHF, 66-622, EXO+, TR 120 TPI / Maxxis Minion DHR II 66-622 EXO+, TR 120 TPI
Brakes
Brakes
Shimano BR-M8120
Brake Levers
Shimano BL-M8100
Cockpit
Stem
PROCRAFT TRAIL II PRO 35, i-routing, dia: 35, 0°
Handlebar
PROCRAFT TRAIL PRO, i-rounting, dia: 35 rise: 20 bend: 9° width: 780
Seat
Saddle
PROCRAFT RACE
Seatpost
PROCRAFT AL PRO DROP, dia: 31.6, 125L [S], 150L [M], 170L [L]
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano BT-E8010 500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.471 mm | 1.443 mm | 1.42 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm |
| Front Center | 717 mm | 751 mm | 785 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm |
| Stack | 612 mm | 635 mm | 659 mm |
| Reach | 416 mm | 440 mm | 464 mm |
| Top Tube Length | 586 mm | 616 mm | 647 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 120 mm | 145 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1175 mm | 1209 mm | 1243 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Numinis Trail E F3500 is a Centurion E Numinis model. 9 e-bikes variations carry this model name so far. You can easily view all of the Centurion E Numinis e-bikes models from 2020, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably lighter than average, Numinis Trail E F3500 has a weight of 21.4 kg (47.18 lbs). In conclusion, the average Trail e-bike weighs 10.75% more than Numinis Trail E F3500.
Numinis Trail E F3500 components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Centurion Numinis Trail E F3500 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Centurion Numinis Trail E F3500 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Centurion Numinis Trail E F3500 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
