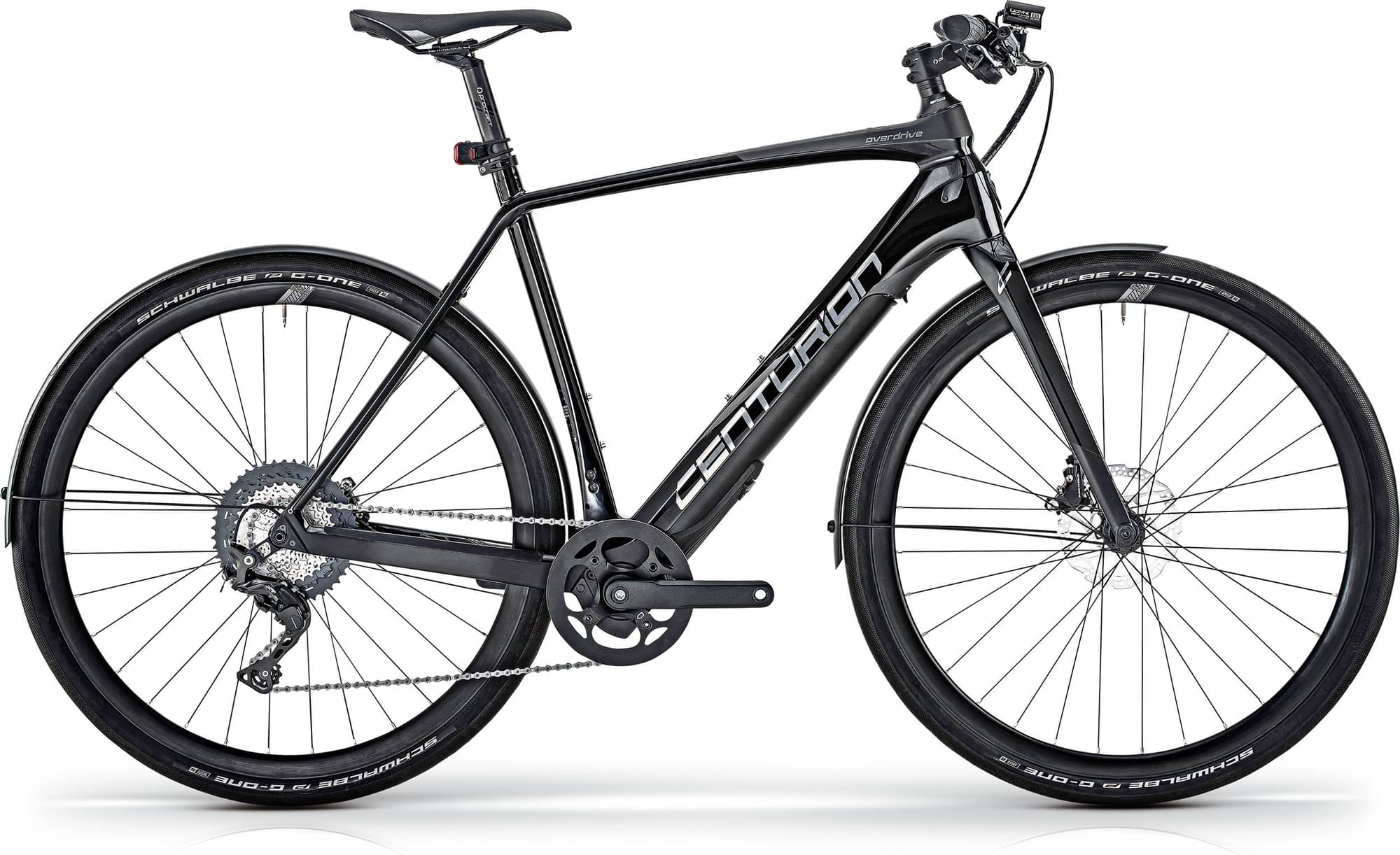

centurion Overdrive Carbon City Z3000 EQ 2022
2022 E-bike
Weight | 15.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset XT, SLX -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery FAZUA evation 2.0 battery 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive Carbon Z, Material: Carbon, 28", Steuerrohr: 1.5" straight, Ausfallende: 12x142 mm, Bremsaufnahme: Flatmount 160 mm, Rahmenkennung: RR0215
Suspension Fork
CENTURION CARBON road/gravel, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-M8000-GS, 1x11
Shift Levers
Shimano SLX, SL-M7000-IR, I-Spec II
Cassette
Shimano SLX, CS-M70000-11, 11-46T
Crank
PROCRAFT Comp FZA, mattschwarz, Länge: 170 mm (XS, S), 172,5 mm (M), 175 mm (L, XL)
Bottom Bracket
FAZUA evation 2.0 bottom bracket
Chain
SRAM PC-1110
Pedals
VP-889P
Wheels
Front Hub
PROCRAFT Centerlock 12 light / Shimano Deore XT, 12x100 mm, 32H, FH-M8010, 12x142 mm, 32H
Rear Hub
PROCRAFT Centerlock 12 light / Shimano Deore XT, 12x100 mm, 32H, FH-M8010, 12x142 mm, 32H
Rims
PROCRAFT Altitude GD30, IW 21 mm, tubless ready
Spokes
PROCRAFT stainless 2.0
Tires
Schwalbe G-One Speed, 40-622, Performance Line, RaceGuard
Brakes
Brakes
Shimano BR-RS405-F / Shimano BR-RS405-R, resin pad
Brake Levers
Shimano BL-RS600
Cockpit
Stem
PROCRAFT Pro+ II, Winkel: 7°, Länge: 60 mm (XS, S), 70 mm (M), 80 mm (L), 90 mm (XL)
Handlebar
PROCRAFT Flat Pro, Durchmesser: 31.8 mm, Breite: 660 mm
Seat
Saddle
PROCRAFT Race
Seatpost
PROCRAFT Carbon Race Off., Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
FAZUA evation 2.0 drive pack, max. 60Nm, 250W
Battery
FAZUA evation 2.0 battery 250Wh
Charger
FAZUA evation 2.0 charger, 2 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Front Center | 595 mm | 607 mm | 620 mm | 632 mm | 644 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 68 mm | 66 mm | 64 mm | 62 mm |
| Stack | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 385 mm | 393 mm | 401 mm | 409 mm |
| Top Tube Length | 532 mm | 545 mm | 559 mm | 573 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.25 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1017 mm | 1029 mm | 1042 mm | 1054 mm | 1066 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Overdrive Carbon City Z3000 EQ is a Centurion E Overdrive model. Centurion launched 16 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Centurion Overdrive Carbon City Z3000 EQ it’s weighing 15.1 kg (33.29 lbs). At this weight, is much lighter than average. In short, the average Commuter e-bike weight is 66.89% higher than this one.
Overdrive Carbon City Z3000 EQ components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Overdrive Carbon City Z3000 EQ model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Overdrive Carbon City Z3000 EQ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Centurion Overdrive Carbon City Z3000 EQ e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
