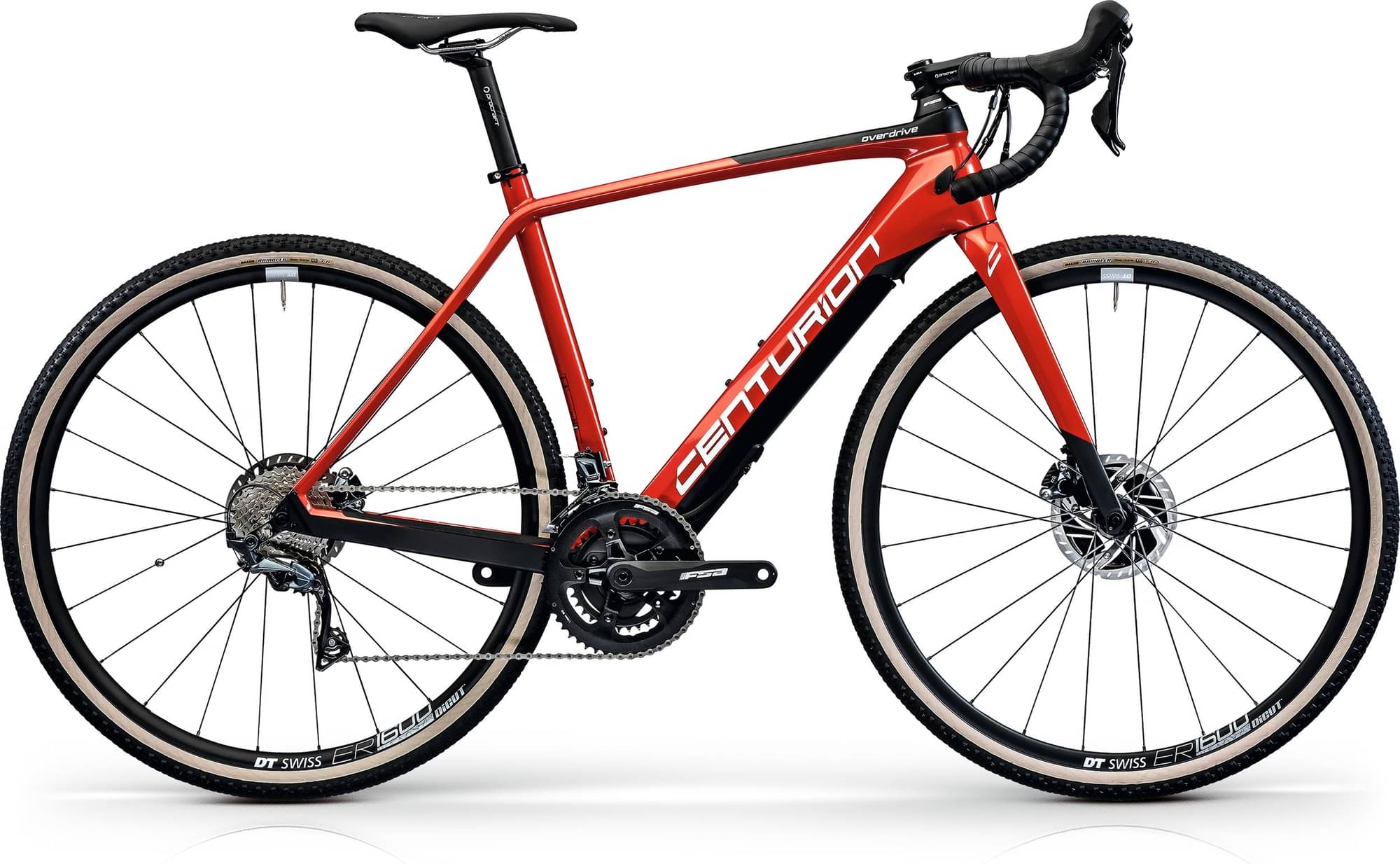

centurion Overdrive Carbon Gravel Z4000 2022
2022 E-bike
Weight | 13.9 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery FAZUA evation 2.0 battery 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive Carbon Z, Material: Carbon, 28", Steuerrohr: 1.5" straight, Ausfallende: 12x142 mm, Bremsaufnahme: Flatmount 160 mm, Rahmenkennung: RR0215
Suspension Fork
CENTURION CARBON road/gravel, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Ultegra, RD-R8000-GS, 2x11
Shift Levers
Shimano Ultegra, ST-R8020-L, ST-R8020-R
Cassette
Shimano Ultegra, CS-R8000, 11-32T
Crank
FSA CK-746-1/IS, Länge: 170 mm (XS, S), 175 mm (M, L, XL), w/ Lockring ML097
Bottom Bracket
FAZUA evation 2.0 bottom bracket
Chain
Shimano CN-HG701-11
Pedals
VP-993
Wheels
Front Hub
attached
Rear Hub
attached
Rims
DT Swiss ER1600 Dicut, 12x100, 12x142, IW 20 mm, Centerlock, tubeless ready
Tires
Maxxis Rambler, 40-622, tubeless ready, EXO, TR
Brakes
Brakes
Shimano Ultegra, BR-R8070, resin pad, w/ fin
Cockpit
Stem
PROCRAFT Road Race, Winkel: 7°, Länge: 60 mm (XS, S), 70 mm (M), 80 mm (L), 90 mm (XL)
Handlebar
PROCRAFT GRAVEL PRO, Breite: 420 mm (XS, S), 440 mm (M, L, XL)
Seat
Saddle
PROCRAFT Race III
Seatpost
PROCRAFT Carbon Race Off., Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
FAZUA evation 2.0 drive pack, max. 60Nm, 250W
Battery
FAZUA evation 2.0 battery 250Wh
Charger
FAZUA evation 2.0 charger, 2 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 595 mm | 607 mm | 620 mm | 632 mm | 644 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm | 50 mm |
| Trail | 69 mm | 68 mm | 66 mm | 64 mm | 62 mm |
| Stack | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 385 mm | 393 mm | 401 mm | 409 mm |
| Top Tube Length | 532 mm | 545 mm | 559 mm | 573 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.25 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1017 mm | 1029 mm | 1042 mm | 1054 mm | 1066 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Overdrive Carbon Gravel Z4000 belongs to the Centurion E Overdrive model. There are 16 e-bikes that carry this model name. You can easily view all of the Centurion E Overdrive e-bikes models from 2022, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Gravel e-bikes average weight
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.9 kg (30.64 lbs), Centurion e-bike is slightly heavier than average. In conclusion, the average Gravel e-bike weighs 2.36% less than Overdrive Carbon Gravel Z4000.
Overdrive Carbon Gravel Z4000 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Centurion Overdrive Carbon Gravel Z4000 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Centurion Overdrive Carbon Gravel Z4000 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
