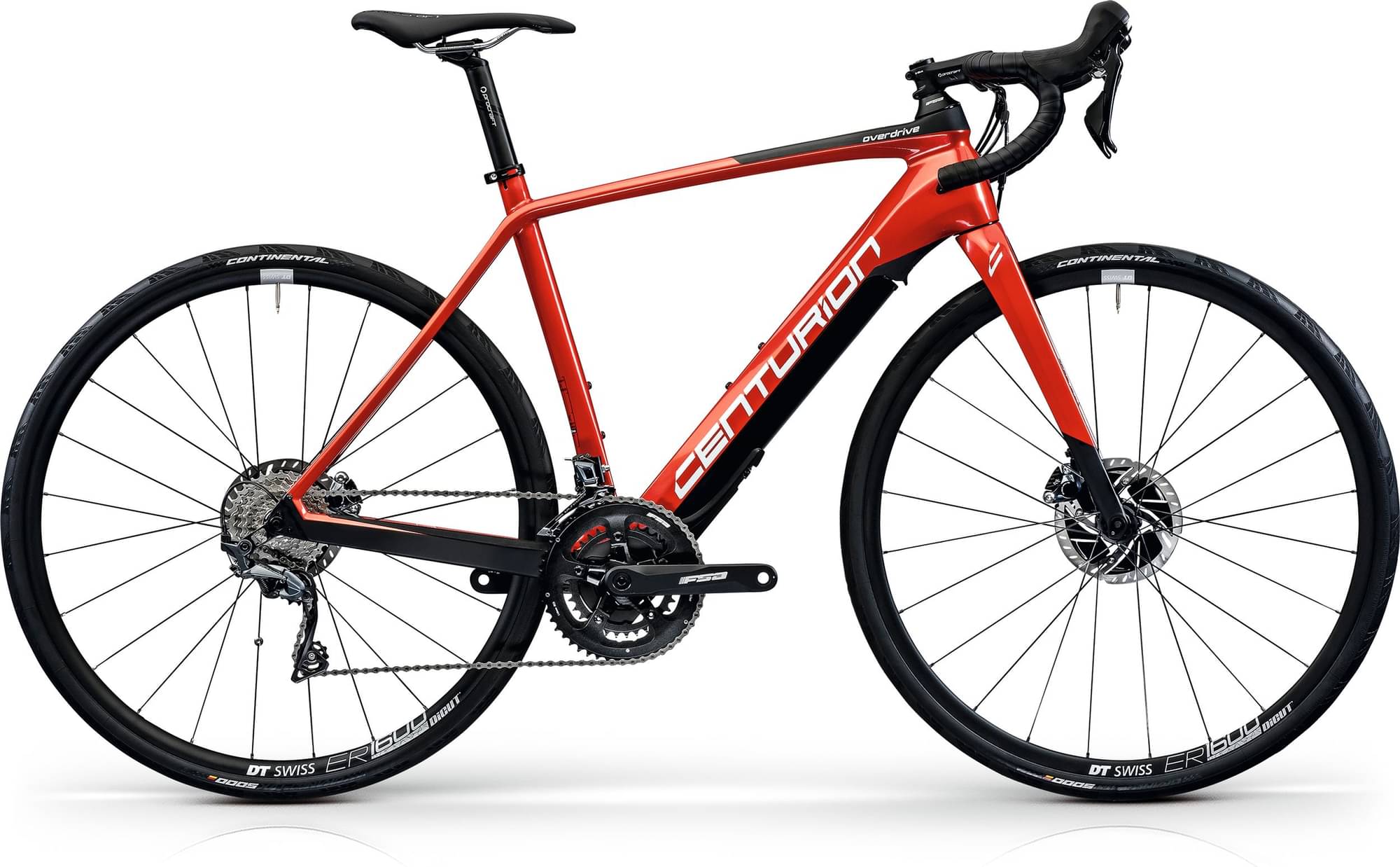

centurion Overdrive Carbon Road Z4000 2022
2022 E-bike
Weight | 13.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery FAZUA evation 2.0 battery 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive Carbon Z, Material: Carbon, 28", Steuerrohr: 1.5" straight, Ausfallende: 12x142mm, Bremsaufnahme: Flatmount 160mm
Suspension Fork
CENTURION CARBON road/gravel, 1.5" tapered
Drivetrain
Rear Derailleur
SHIMANO Ultegra, RD-R8000-GS, 2x11
Shift Levers
SHIMANO Ultegra, ST-R8020-L ST-R8020-R
Cassette
SHIMANO Ultegra, CS-R8000, 11-32T
Crank
FSA CK-746-1/IS, Länge: 170mm [XS, S], 175mm [M, L, XL], w/ Lockring ML097
Bottom Bracket
FAZUA evation 2.0 bottom bracket
Chain
SHIMANO CN-HG701-11
Pedals
VP-993
Wheels
Rims
DT SWISS ER1600 Dicut, 12x100, 12x142, IW20mm, Centerlock, tubeless ready
Tires
CONTINENTAL Grand Prix 5000. 32-622, Vectran breaker, Lazer Grip, ACT
Brakes
Brakes
SHIMANO Ultegra, BR-R8070, resin pad, w/ fin
Cockpit
Stem
PROCRAFT Road Race, 7°
Handlebar
PROCRAFT Road Race, dia: 31.8mm, Breite: 420mm [XS, S], 440mm [M, L, XL]
Seat
Saddle
PROCRAFT Race III
Seatpost
PROCRAFT Carbon Race Off., dia: 30.9mm, 350mm
Motor & Battery
Motor
FAZUA evation 2.0 drive pack, 60 Nm, 250 W
Battery
FAZUA evation 2.0 battery 250Wh
Charger
FAZUA evation 2.0 charger, 2 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.52 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 595 mm | 607 mm | 620 mm | 632 mm | 644 mm |
| Rake | 50 mm | 49 mm | 50 mm | 50 mm | 50 mm |
| Trail | 65 mm | 65 mm | 62 mm | 61 mm | 59 mm |
| Stack | 542 mm | 562 mm | 582 mm | 602 mm | 622 mm |
| Reach | 377 mm | 385 mm | 393 mm | 401 mm | 409 mm |
| Top Tube Length | 532 mm | 545 mm | 559 mm | 573 mm | 587 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.25 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1017 mm | 1029 mm | 1042 mm | 1054 mm | 1066 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Overdrive Carbon Road Z4000 belongs to the Centurion E Overdrive model. Centurion launched 16 e-bikes of this model so far. You can easily view all of the Centurion E Overdrive e-bikes models from 2022, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Endurance e-bikes
On a deeper look, we notice that the average weight of an Endurance e-bike is 13.52 kg (29.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.7 kg (30.2 lbs), the Overdrive Carbon Road Z4000 model is slightly heavier than average. In other words, this model is 1.33% heavier than the average Endurance e-bike.
Overview of components
Fork material
Overdrive Carbon Road Z4000 has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Centurion Overdrive Carbon Road Z4000 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overdrive Carbon Road Z4000 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Overdrive Carbon Road Z4000 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
