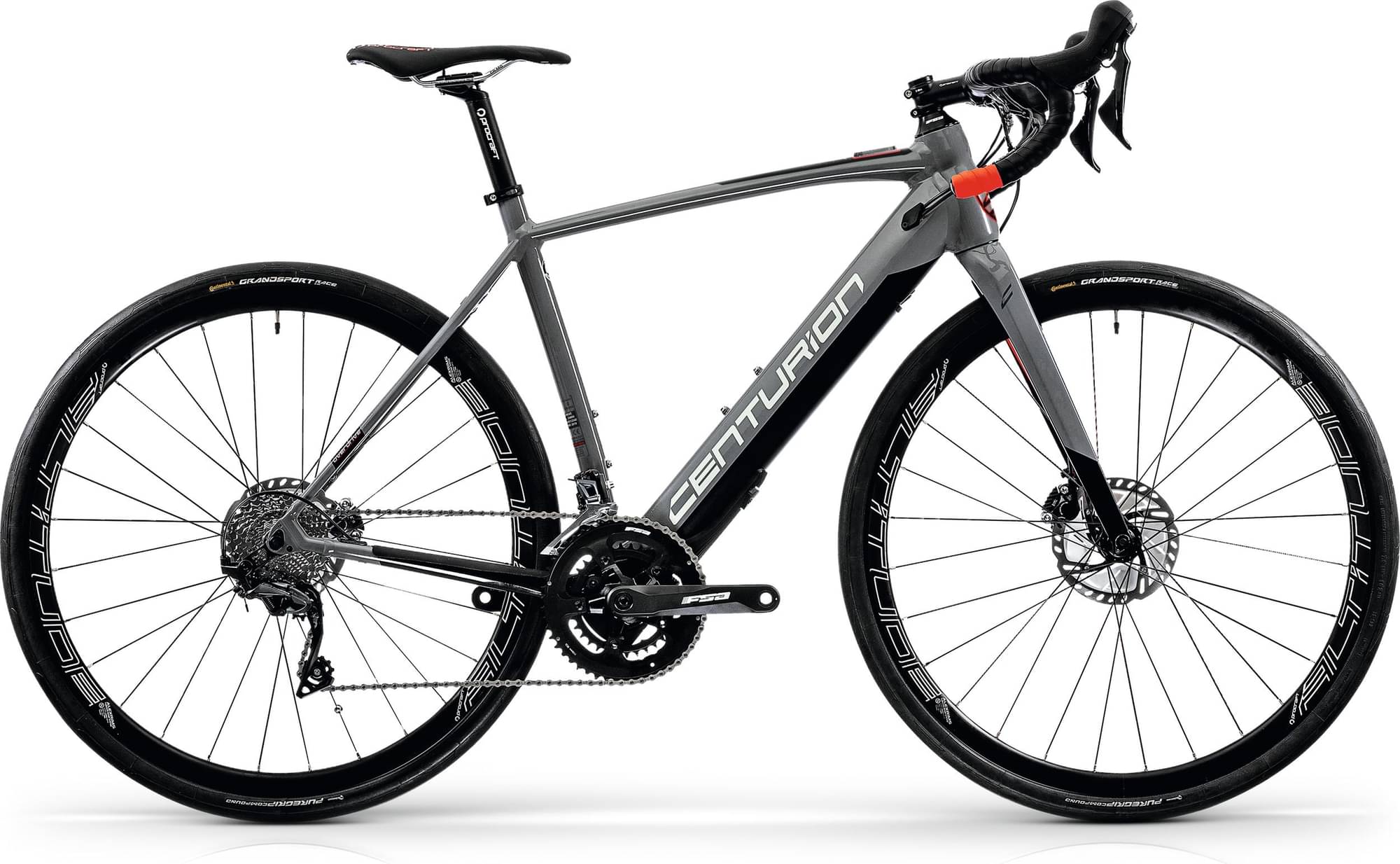

centurion Overdrive Road Z4000 2022
2022 E-bike
Weight | 15.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Motor Fazua 250W 60Nm mid-drive -
Battery FAZUA evation 2.0 battery 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Overdrive Z, Material: Aluminium, 28", Steuerrohr: 1.5" straight, Ausfallende: 12x142 mm, Bremsaufname: Flatmount 160 mm, Rahmenkennung: ABP065B
Suspension Fork
CENTURION CARBON road/gravel, 1.5" tapered
Drivetrain
Rear Derailleur
Shimano Ultegra, RD-R8000-GS, 2x11
Shift Levers
Shimano Ultegra, ST-R8020-L, ST-R8020-R
Cassette
Shimano 105, CS-R7000, 11-32T
Crank
FSA CK-746-1/IS, Länge: 170 mm (XS/S), 175 mm (M, L/ XL), w/ Lockring ML097
Bottom Bracket
FAZUA evation 2.0 bottom bracket
Chain
Shimano CN-HG701-11
Pedals
VP-993
Wheels
Front Hub
DT Swiss 350 Road db CL, 12x100 mm, 28H, 12x142 mm, 28H
Rear Hub
DT Swiss 350 Road db CL, 12x100 mm, 28H, 12x142 mm, 28H
Rims
PROCRAFT Altitude GD30, IW 21 mm, tubless ready
Spokes
PROCRAFT stainless 2.0
Tires
CONTINENTAL Grand Sport Race, 32-622
Brakes
Brakes
Shimano Ultegra, BR-R8070, resin pad, w/ fin
Cockpit
Stem
PROCRAFT Comp, Winkel: 7°, Länge: 60 mm (XS/ S), 70 mm (M), 80 mm (L/ XL)
Handlebar
PROCRAFT Road Race, Durchmesser: 31.8 mm, Breite: 420 mm (XS/ S), 440 mm (M, L/ XL)
Seat
Saddle
PROCRAFT Race III
Seatpost
PROCRAFT Pro Off. Light, Durchmesser: 30.9 mm, Länge: 350 mm
Motor & Battery
Motor
FAZUA evation 2.0 drive pack, max. 60Nm, 250W
Battery
FAZUA evation 2.0 battery 250Wh
Charger
FAZUA evation 2.0 charger, 2 Ampere
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.5 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm |
| Front Center | 605 mm | 620 mm | 635 mm |
| Rake | 51 mm | 50 mm | 50 mm |
| Trail | 66 mm | 62 mm | 58 mm |
| Stack | 548 mm | 575 mm | 601 mm |
| Reach | 372 mm | 386 mm | 400 mm |
| Top Tube Length | 531 mm | 552 mm | 574 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71.25 ° | 72 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1020 mm | 1035 mm | 1050 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
Overdrive Road Z4000 completes the Centurion E Overdrive model. 16 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Endurance e-bikes
The average weight for Endurance e-bikes is 13.52 kg (29.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Centurion Overdrive Road Z4000 it’s weighing 15.3 kg (33.73 lbs). At this weight, is considerably heavier than average. In other words, this model is 13.17% heavier than the average Endurance e-bike.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Overdrive Road Z4000 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Overdrive Road Z4000 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
