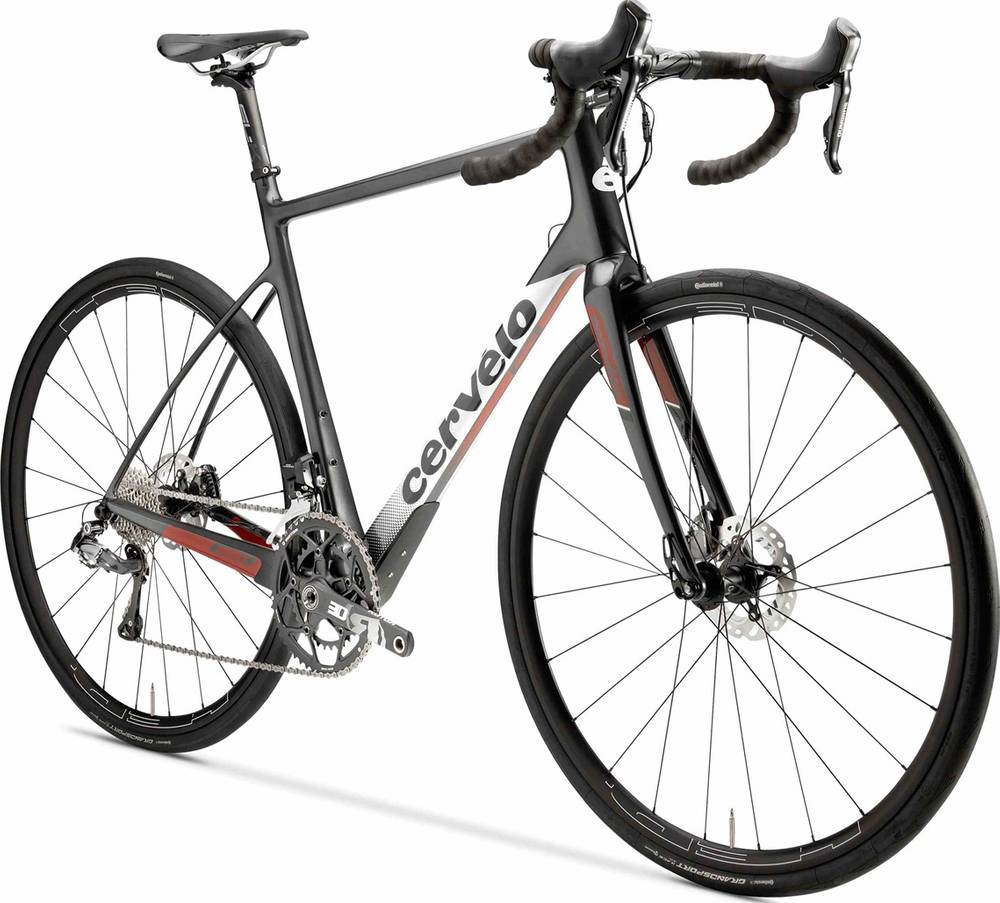

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered C3 Fork for Disc
Drivetrain
Rear Derailleur
Shimano 105 5800, 11 spd
Front Derailleur
Shimano 105 5800, 11 spd
Shift Levers
Shimano ST-RS505, 11 spd
Cassette
Shimano 105 5800, 11spd, 11-32
Crank
Rotor 2D 50/34
Bottom Bracket
Rotor PF-30
Chain
KMC X11L
Wheels
Rims
Mavic Aksium Disc
Tires
Mavic Yksion Elite Guard 700x28c
Brakes
Brakes
Shimano BR-RS505 Hydraulic Disc
Disk Rotors
Shimano RT81 160mm
Cockpit
Stem
FSA SLK
Handlebar
FSA Energy Compact
Headset
FSA IS2 1-1/8 x 1-1/2"
Seat
Saddle
fi’zi:k Antares VS
Seatpost
FSA SLK
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.497 mm | 1.517 mm | 1.538 mm | 1.558 mm | 1.581 mm | 1.603 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 261 mm | 261 mm | 263 mm | 263 mm |
| Front Center | 586 mm | 604 mm | 598 mm | 616 mm | 633 mm | 650 |
| Rake | 62 mm | 62 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 57 mm | 57 mm | 64 mm | 58 mm | 58 mm | 58 mm |
| Stack | 527 mm | 549 mm | 572 mm | 595 mm | 618 mm | 641 mm |
| Reach | 352 mm | 362 mm | 372 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 515 mm | 531 mm | 548 mm | 565 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 71.1 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 108.9 mm | 138.3 mm | 155.8 mm | 180.1 mm | 207 mm | 231.2 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 994 mm | 1012 mm | 1007 mm | 1025 mm | 1043 mm | 1060 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 699 mm | 724 mm | 755 mm | 790 mm | 811 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
C3 105 5800 is part of the Cervelo C3 model. There are 11 bikes that carry this model name. Take a sneak peek at all Cervelo C3 bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Cervélo C3 105 5800 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
