Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered C3 Fork for Disc
Drivetrain
Rear Derailleur
Ultegra Di2 6870, 11 spd
Front Derailleur
Ultegra Di2 6870, 11 spd
Shift Levers
Di2 ST-R785 11 spd
Cassette
Ultegra 6800, 11 spd, 11-28
Crank
Rotor 3D30 BBright™ 50/34
Bottom Bracket
Rotor PF-30
Chain
HG700, 11 spd
Wheels
Rims
HED Ardennes PLus GP DIsc
Tires
Continental Grand Sport 700x28c
Brakes
Brakes
BR-R805 Hydraulic Disc
Disk Rotors
Shimano RT99 140mm
Cockpit
Stem
FSA SLK
Handlebar
FSA Energy Compact
Headset
FSA IS2 1-1/8 x 1-1/2"
Seat
Saddle
fi’zi:k Antares VS
Seatpost
FSA SLK for Di2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.497 mm | 1.517 mm | 1.538 mm | 1.558 mm | 1.581 mm | 1.603 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 261 mm | 261 mm | 263 mm | 263 mm |
| Front Center | 586 mm | 604 mm | 598 mm | 616 mm | 633 mm | 650 |
| Rake | 62 mm | 62 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 57 mm | 57 mm | 64 mm | 58 mm | 58 mm | 58 mm |
| Stack | 527 mm | 549 mm | 572 mm | 595 mm | 618 mm | 641 mm |
| Reach | 352 mm | 362 mm | 372 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 515 mm | 531 mm | 548 mm | 565 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 71.1 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 108.9 mm | 138.3 mm | 155.8 mm | 180.1 mm | 207 mm | 231.2 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 994 mm | 1012 mm | 1007 mm | 1025 mm | 1043 mm | 1060 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 699 mm | 724 mm | 755 mm | 790 mm | 811 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

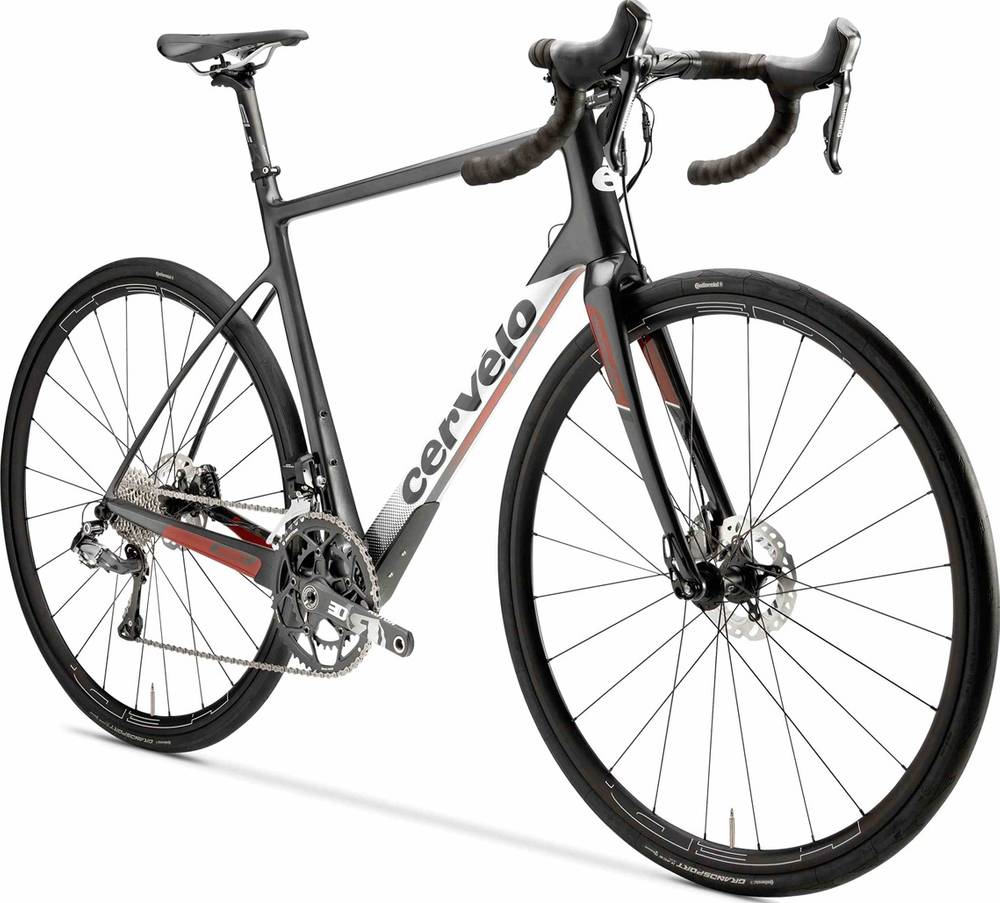

C3 Ultegra Di2 6870 completes the Cervelo C3 model. Cervélo released 11 bikes variations of this model so far. You can easily view all of the Cervelo C3 bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
C3 Ultegra Di2 6870 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Cervélo C3 Ultegra Di2 6870 2017, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cervélo C3 Ultegra Di2 6870 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
