Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered C5 Fork for Disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 8050, 11spd
Front Derailleur
Shimano Ultegra Di2 8050, 11spd
Shift Levers
Shimano Ultegra Di2 8070, 11spd
Cassette
Shimano Ultegra CS-R8000, 11-30
Crank
Shimano Ultegra 8000 50/34
Bottom Bracket
BBB Bottomfit BBO-72, PF30 Threaded
Chain
Shimano CN-HG701, 11 speed
Wheels
Rims
Mavic Allroad Elite Disc CL
Tires
Mavic Yksion Elite Guard 700 x 28c
Brakes
Brakes
Shimano Ultegra 8070
Cockpit
Handlebar
Cervélo, AB06
Headset
FSA IS2 1-1/8 x 1-1/2"
Seat
Saddle
fi’zi:k Antares VS
Seatpost
Cervélo Carbon SP19
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.497 mm | 1.517 mm | 1.538 mm | 1.558 mm | 1.581 mm | 1.603 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 261 mm | 261 mm | 263 mm | 263 mm |
| Front Center | 586 mm | 604 mm | 598 mm | 616 mm | 633 mm | 650 |
| Rake | 62 mm | 62 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 57 mm | 57 mm | 64 mm | 58 mm | 58 mm | 58 mm |
| Stack | 527 mm | 549 mm | 572 mm | 595 mm | 618 mm | 641 mm |
| Reach | 352 mm | 362 mm | 372 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 515 mm | 531 mm | 548 mm | 565 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 71.1 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 108.9 mm | 138.3 mm | 155.8 mm | 180.1 mm | 207 mm | 231.2 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 994 mm | 1012 mm | 1007 mm | 1025 mm | 1043 mm | 1060 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 699 mm | 724 mm | 755 mm | 790 mm | 811 mm | 839 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

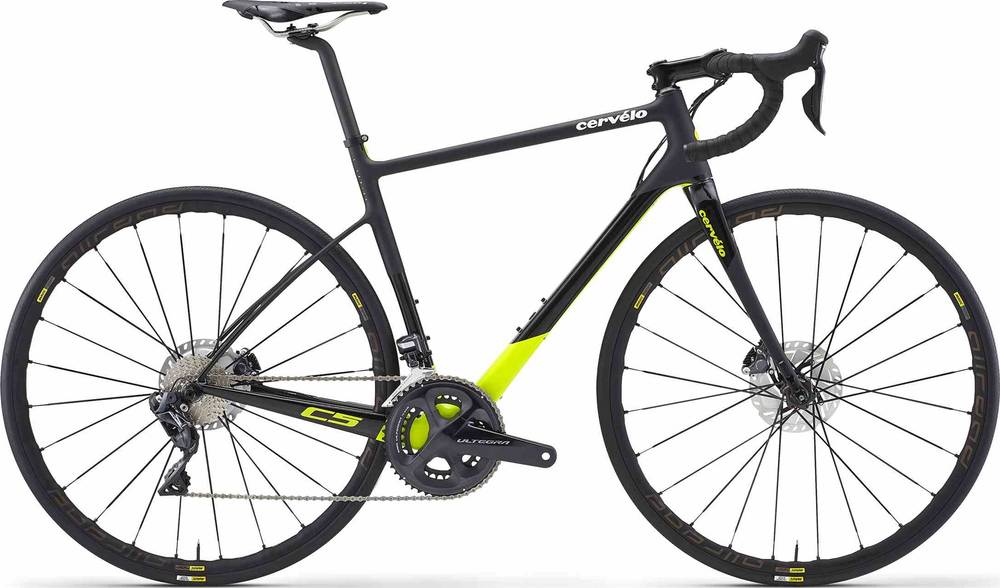

C5 Ultegra Di2 8070 is part of the Cervelo C5 model. Cervélo released 6 bikes variations of this model so far. You can easily view all of the Cervelo C5 bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 7000$. If we compare this with the average Endurance bike cost we notice that the price is 198.38% more expensive.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the C5 Ultegra Di2 8070 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The C5 Ultegra Di2 8070 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
