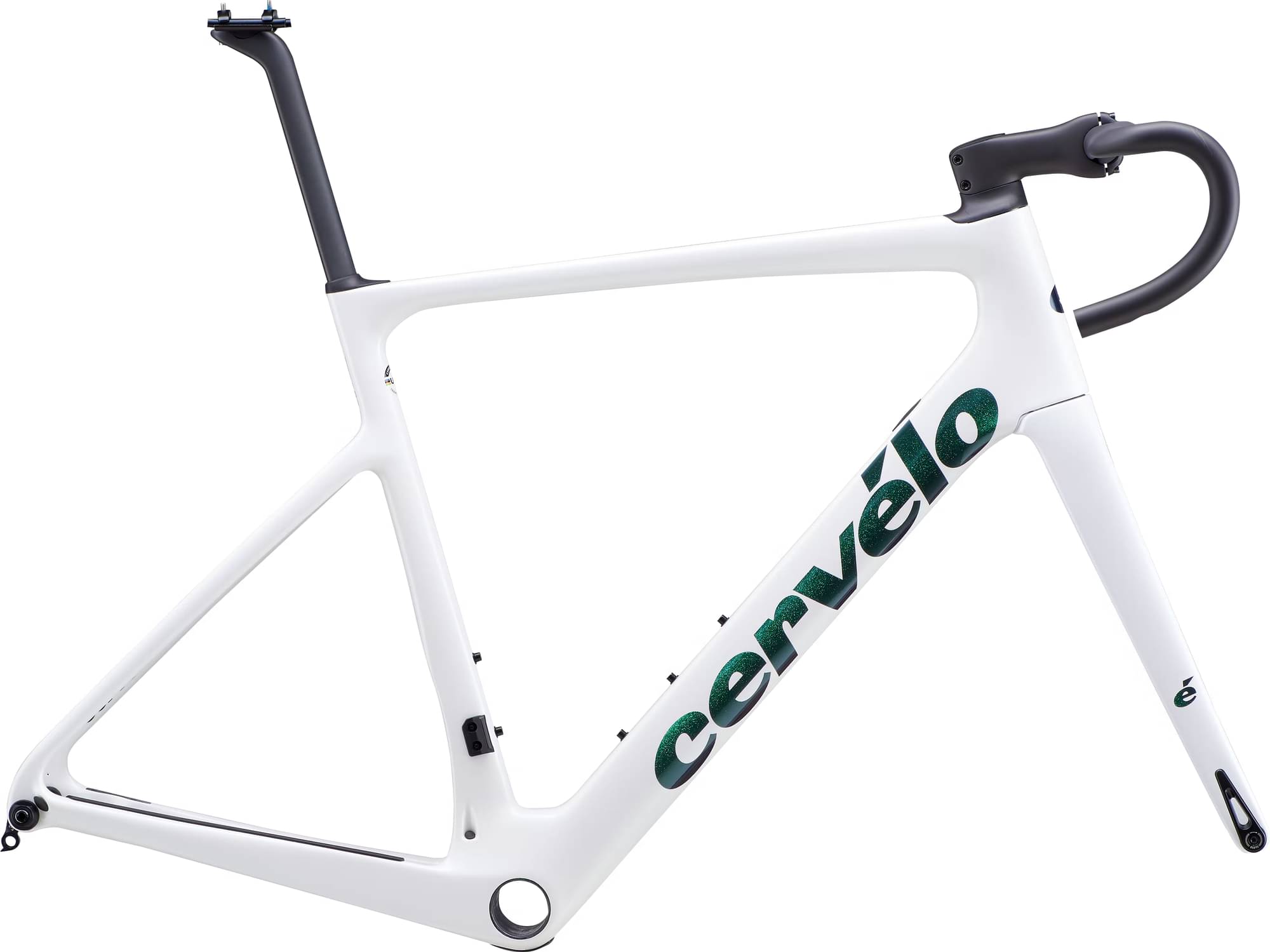

Cervélo Caledonia-5 Frameset 2022
2022 Road
Estimate price |
4,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered Caledonia-5 Fork
Drivetrain
Crank
Cervélo SP24 Carbon
Bottom Bracket
Cervelo Faceplate Front Computer/Light Mount, Cervelo Rear Accessory Mount, Removeable Fender Mounts
Chain
Cervelo Faceplate Front Computer/Accessory Mount, Cervelo Rear Accessory Mount, Removeable Fender Mounts
Wheels
Tires
Cervélo ST31 Carbon
Cockpit
Headset
FSA IS2 1-1/4 x 1-1/2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 259 mm | 259 mm | 262 mm | 262 mm | 264 mm | 264 mm |
| Front Center | 579.4 mm | 581.7 mm | 591.5 mm | 608.5 mm | 626 mm | 643 mm |
| Rake | 59 mm | 53 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 497 mm | 517 mm | 538 mm | 560 mm | 576 mm | 593 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 89.5 mm | 109.9 mm | 136 mm | 162.3 mm | 191.2 mm | 217.5 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 977 mm | 979 mm | 990 mm | 1007 mm | 1025 mm | 1042 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 71 mm | 71 mm |
| Standover Height | 707 mm | 747 mm | 779 mm | 802 mm | 829 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Caledonia-5 Frameset is a Cervelo Caledonia 5 model. 19 frames variations carry this model name so far. Take a sneak peek at all Cervelo Caledonia 5 frames models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance frames
According to our calculations, the average cost of an Endurance frame that is reliable is 1905$. However, you could also get a good Endurance frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4500$. If we compare this with the average Endurance frame cost we notice that the price is 136.22% higher.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
