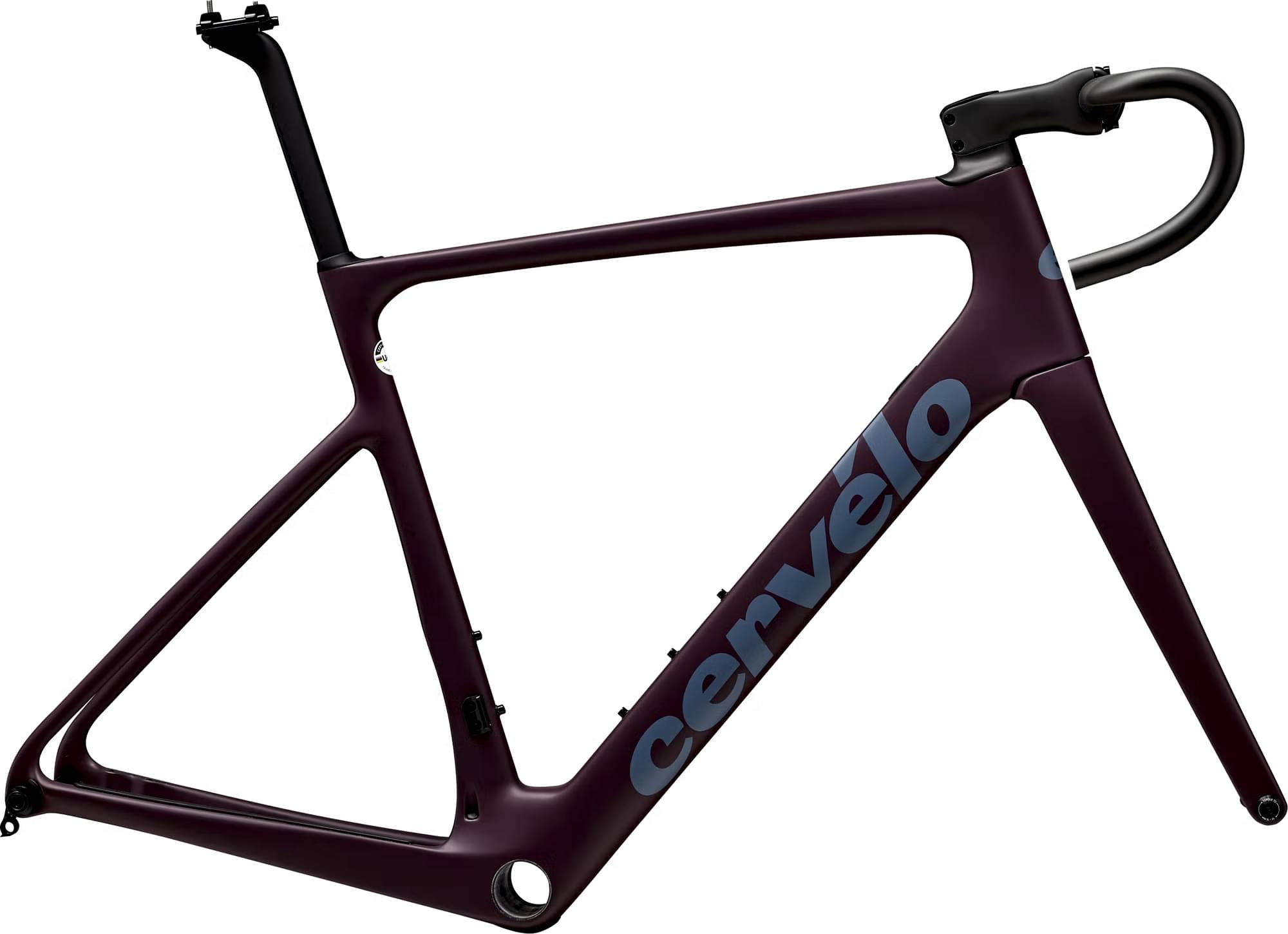

Cervélo Caledonia-5 Frameset 2023
2023 Road
Estimate price |
5,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered Caledonia-5 Fork
Cockpit
Stem
Cervélo ST31 Carbon
Handlebar
Cervélo HB13 Carbon
Headset
FSA IS2 1-1/4 x 1-1/2
Seat
Seatpost
Cervélo SP24 Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 259 mm | 259 mm | 262 mm | 262 mm | 264 mm | 264 mm |
| Front Center | 579.4 mm | 581.7 mm | 591.5 mm | 608.5 mm | 626 mm | 643 mm |
| Rake | 59 mm | 53 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 497 mm | 517 mm | 538 mm | 560 mm | 576 mm | 593 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 89.5 mm | 109.9 mm | 136 mm | 162.3 mm | 191.2 mm | 217.5 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 977 mm | 979 mm | 990 mm | 1007 mm | 1025 mm | 1042 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 74 mm | 74 mm | 71 mm | 71 mm |
| Standover Height | 707 mm | 747 mm | 779 mm | 802 mm | 829 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Caledonia-5 Frameset is a Cervelo Caledonia 5 model. Cervélo launched 19 frames of this model so far. Take a sneak peek at all Cervelo Caledonia 5 frames models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance frames average price
According to our math, the average price for a trustworthy Endurance frame is 1905$. However, even though the average price of an Endurance frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Cervélo Caledonia-5 Frameset price was 5000$. In conclusion, this frame price is 162.47% more expensive than the price of the average Endurance frame.
Caledonia-5 Frameset components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
