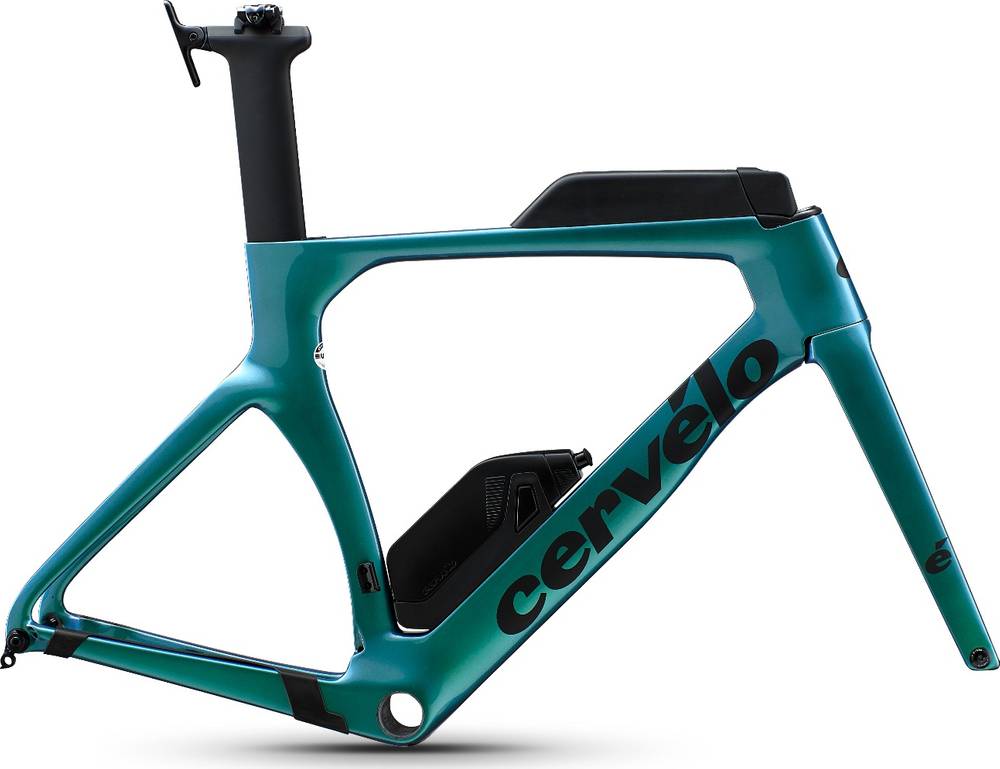

Cervélo P-Series Frameset Disc 2020
2020 Road
Estimate price |
2,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered P-Series Fork for Disc
Cockpit
Headset
FSA IS2 1-1/8 x 1-3/8
Seat
Seatpost
Cervélo Carbon, SP23
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.28 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.28 mm | 1.33 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 582 mm | 583 mm | 602 mm | 622 mm | 640 mm | 654 mm |
| Rake | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62.4 mm | 62.4 mm | 62.4 mm | 62.4 mm | 62.4 mm | 62.4 mm |
| Stack | 480 mm | 501 mm | 517 mm | 535 mm | 554 mm | 582 mm |
| Reach | 376 mm | 393 mm | 407 mm | 420 mm | 432 mm | 438 mm |
| Top Tube Length | 506 mm | 528 mm | 546 mm | 565 mm | 582 mm | 595 mm |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 87.5 mm | 101 mm | 118 mm | 137 mm | 157 mm | 187 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 970 mm | 971 mm | 990 mm | 1010 mm | 1028 mm | 1042 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 727 mm | 753 mm | 768 mm | 785 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
P-Series Frameset Disc is a Cervelo P Series model. Cervélo released 22 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon frames
According to our calculations, the average cost of a Triathlon frame that is reliable is 3089$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 2500$. Comparing this to the average Triathlon frame price, we see that the price is 23.56% lower.
P-Series Frameset Disc components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
