Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, P3 Fork
Drivetrain
Rear Derailleur
Ultegra Di2 6870, 11 spd
Front Derailleur
Ultegra Di2 6870, 11 spd
Shift Levers
Ultegra Di2 R671
Cassette
Ultegra 6800, 11 spd, 11-25
Crank
Rotor 3D30 BBright™ 52/36
Bottom Bracket
Rotor PF-30
Chain
Ultegra, 11 spd
Wheels
Rims
Mavic Cosmic Elite S (700c), Vision Team 30 (650c)
Tires
Mavic Yksion Comp 120 tpi, 700x23c; Continental Grand Prix 180 tpi, 650x23c
Brakes
Brakes
Ultegra 6800
Brake Levers
Ultegra ST-6871
Cockpit
Stem
3T ARX II
Handlebar
3T Vola
Headset
FSA IS2 1-1/8 x 1-1/8”
Seat
Saddle
ISM Prologue
Seatpost
Cervélo Carbon, Aero, Rail-Adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.2 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.28 mm | 1.32 mm |
| Bottom Bracket Height | 286 mm | 256 mm | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 553 mm | 583 mm | 583 mm | 602 mm | 622 mm | 640 mm | 658 mm |
| Rake | 40 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 59 mm | 61 mm | 61 mm | 61 mm | 61 mm | 60 mm |
| Stack | 453 mm | 488 mm | 509 mm | 525 mm | 543 mm | 562 mm | 591 mm |
| Reach | 378 mm | 384 mm | 400 mm | 414 mm | 428 mm | 440 mm | 449 mm |
| Top Tube Length | 500 mm | 516 mm | 536 mm | 554 mm | 573 mm | 590 mm | 607 mm |
| Seat Tube Length | 471 mm | 484 mm | 505 mm | 522 mm | 540 mm | 556 mm | 571 mm |
| Head Tube Angle | 72 ° | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 90 mm | 84 mm | 97 mm | 114 mm | 133 mm | 153 mm | 183 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 950 mm | 971 mm | 973 mm | 992 mm | 1012 mm | 1030 mm | 1049 mm |
| Bottom Bracket Drop | 50 mm | 80 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 715 mm | 745 mm | 771 mm | 787 mm | 805 mm | 824 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

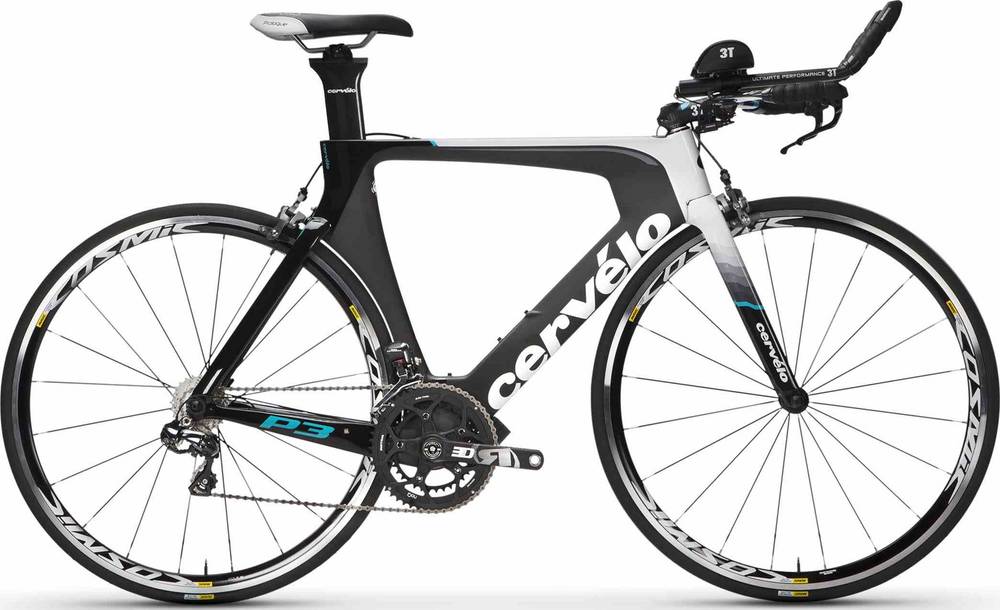

P3 Ultegra Di2 6870 is a Cervelo P3 model. 9 bikes variations carry this model name so far. You can easily view all of the Cervelo P3 bikes models from 2017, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon bikes
Our math shows that the average cost of a dependable Triathlon bike is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
P3 Ultegra Di2 6870 components
Fork material
P3 Ultegra Di2 6870 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the P3 Ultegra Di2 6870 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cervélo P3 Ultegra Di2 6870 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
