Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered P5 Fork for Disc
Cockpit
Handlebar
P5 CarbonBasebar/EX10 Riser/Carbon Extensions / Cervélo HB11 and EX11 50deg Aerobar
Headset
FSA IS2 1 x 1-3/8”
Seat
Seatpost
Cervélo SP23 Carbon Tri Post / Cervélo Carbon, SP23
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.21 mm | 1.21 mm | 1.21 mm | 1.21 mm | 1.24 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 582 mm | 583 mm | 602 mm | 622 mm | 640 mm |
| Rake | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 461 mm | 481 mm | 497 mm | 516 mm | 534 mm |
| Reach | 382 mm | 398 mm | 412 mm | 426 mm | 432 mm |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 67.5 mm | 81 mm | 98 mm | 117 mm | 137 mm |
| Wheelbase | 970 mm | 971 mm | 990 mm | 1010 mm | 1028 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 764 mm | 781 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

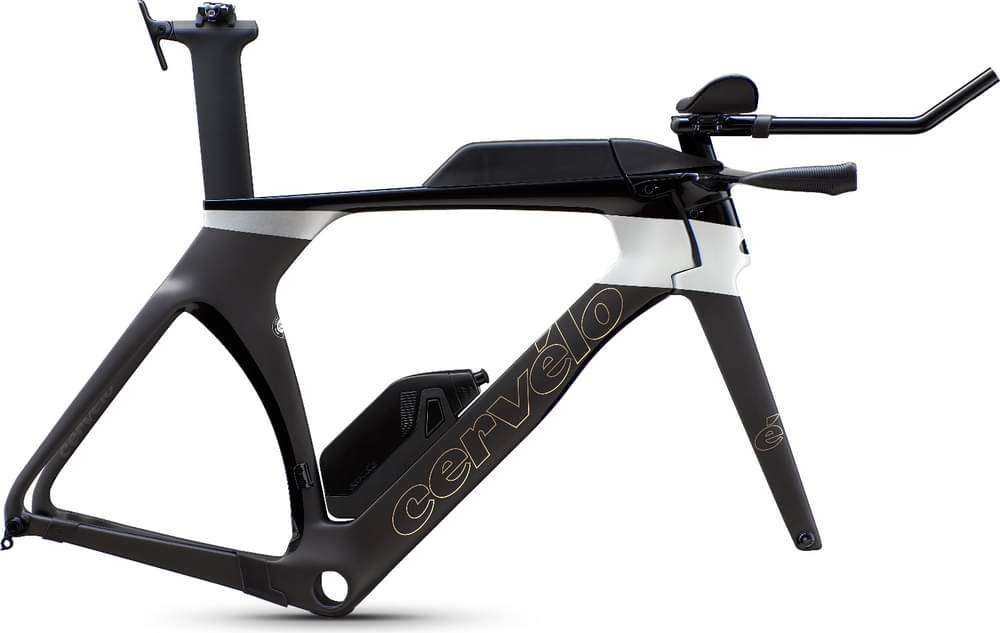

P5 Frameset Disc is a Cervelo P5 model. Cervélo launched 27 frames of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Triathlon frames average price
If you want to purchase a solid Triathlon frame, it is important to know that the average cost is 3089$. However, this doesn’t mean that if you spend less money on a Triathlon frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Cervélo released this model in 2021, its price was 5500$. In conclusion, this frame price is 78.05% more expensive than the price of the average Triathlon frame.
P5 Frameset Disc components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
