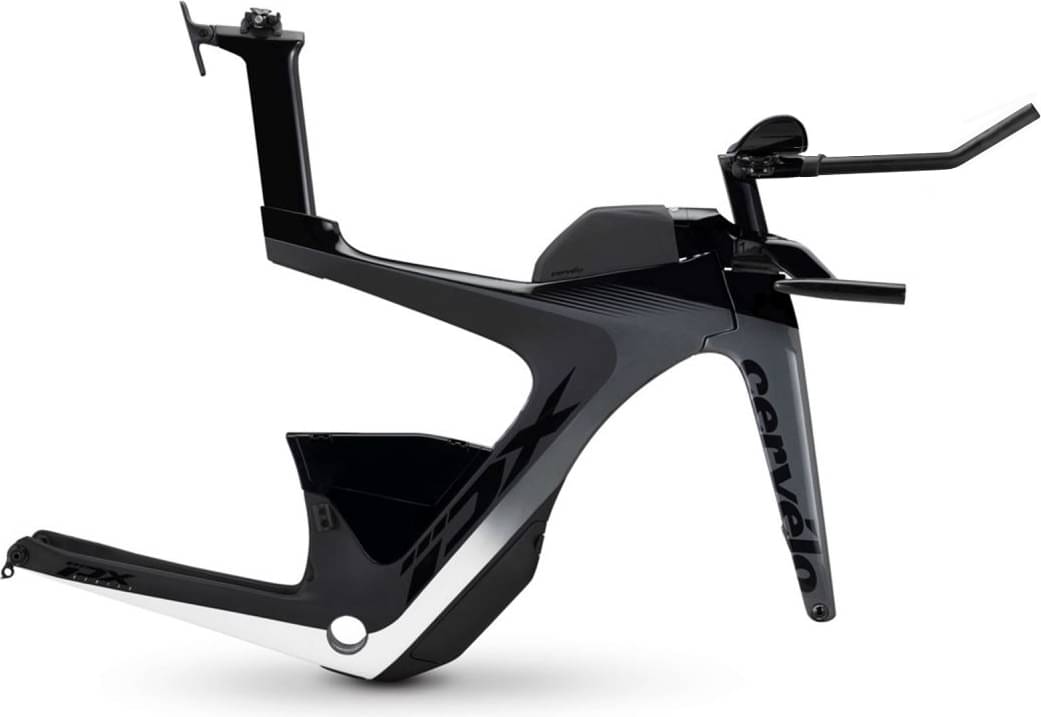

Cervélo PX-Series Frameset Disc 2021
2021 Road
Estimate price |
6,078$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered PX Fork
Cockpit
Handlebar
Cervélo P5X Split Carbon Basebar/EX10 Riser/Carbon Extensions
Headset
FSA IS2 1-1/8 x 1-1/2
Seat
Seatpost
Cervélo SP21 Carbon Tri Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.212 mm | 1.228 mm | 1.239 mm | 1.249 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 582 mm | 587 mm | 614 mm | 642 mm |
| Rake | 53 mm | 43 mm | 43 mm | 43 mm |
| Trail | 61.4 mm | 62.4 mm | 62.4 mm | 62.4 mm |
| Stack | 468 mm | 496 mm | 524 mm | 552 mm |
| Reach | 386 mm | 404 mm | 423 mm | 442 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 76 mm | 97 mm | 126 mm | 156 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 975 mm | 980 mm | 1008 mm | 1035 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 689 mm | 702 mm | 746 mm | 775 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
PX-Series Frameset Disc belongs to the Cervelo Px Series model. 8 frames variations carry this model name so far. You can easily view all of the Cervelo Px Series frames models from 2021, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon frames
According to our calculations, the average cost of a Triathlon frame that is reliable is 3089$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Cervélo released this model in 2021, its price was 5626$. In conclusion, this frame price is 82.13% higher than the price of the average Triathlon frame.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
PX-Series Frameset Disc comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
