Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R3 Fork
Cockpit
Headset
FSA IS2 1-1/8 x 1-3/8"
Seat
Seatpost
FSA SLK
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.436 mm | 1.468 mm | 1.499 mm | 1.528 mm | 1.556 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 575 mm | 587 mm | 604 mm | 620 mm |
| Rake | 53 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 54 mm | 57 mm | 56 mm | 55 mm | 55 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 360 mm | 369 mm | 378 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 516 mm | 531 mm | 548 mm | 564 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 72.2 ° | 73.1 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 108 mm | 128 mm | 148 mm | 173 mm | 199 mm | 225 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 970 mm | 970 mm | 982 mm | 999 mm | 1016 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 693 mm | 723 mm | 753 mm | 784 mm | 815 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

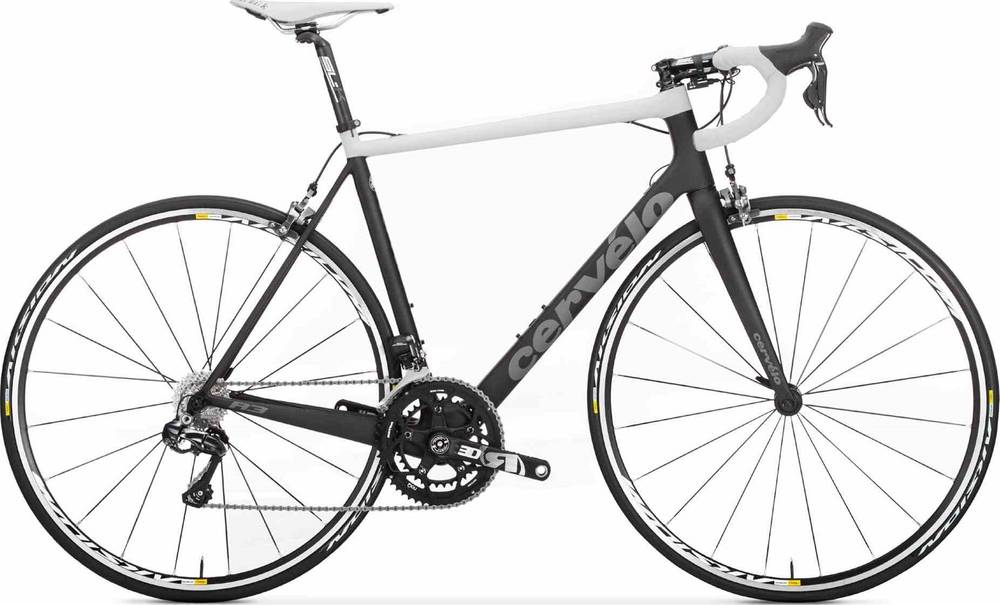

R3 Frameset is a Cervelo R3 model. There are 14 frames that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race frames average price
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2000$. In conclusion, this frame price is 22.25% smaller than the price of the average Race frame.
R3 Frameset components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
