Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R3 Fork
Cockpit
Headset
FSA IS2 1-1/8 x 1-1/2
Seat
Seatpost
Cervélo Carbon, SP19
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 575 mm | 577 mm | 594 mm | 611 mm | 627 mm |
| Rake | 57 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 510 mm | 527 mm | 543 mm | 558 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 89 mm | 110 mm | 133 mm | 159 mm | 188 mm | 214 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 968 mm | 988 mm | 1006 mm | 1022 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 688 mm | 718 mm | 748 mm | 779 mm | 810 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

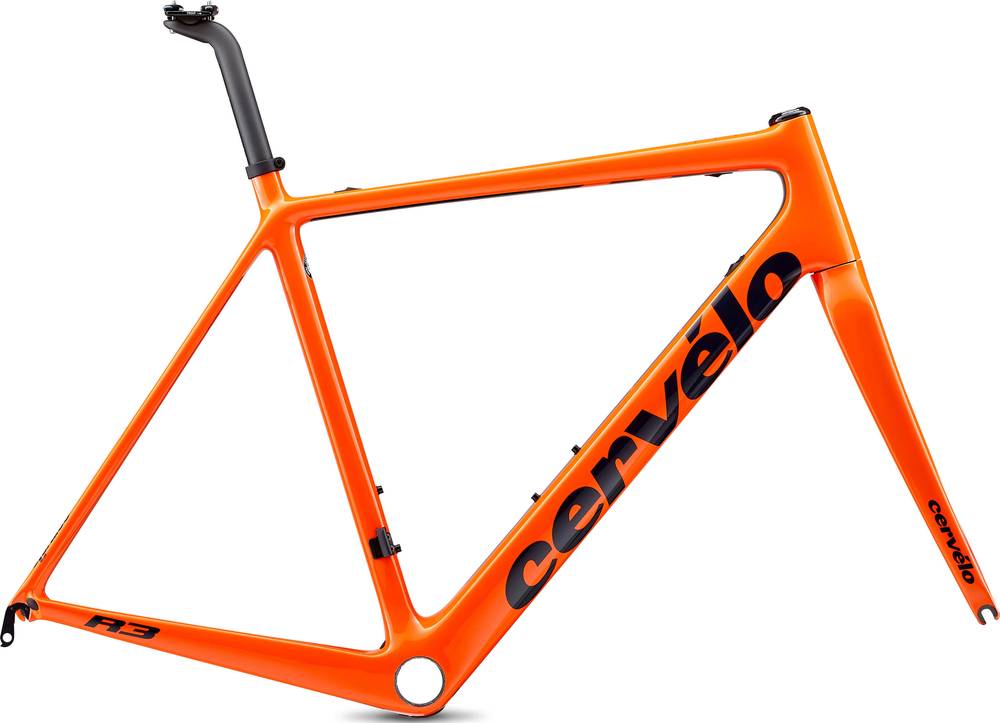

R3 Frameset Rim is a Cervelo R3 model. There are 14 frames that carry this model name. You can easily view all of the Cervelo R3 frames models from 2019, here.
Model range prices
Cervélo R3 Frameset Rim 2019 is the most affordable frame of this model and has a price of 3000$. On the other hand, Cervélo R3 Frameset Disc 2019, is the most expensive and costs 3000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Cervélo R3 Frameset Rim price was 3000$. Doing a quick comparison, we notice that R3 Frameset Rim price is 22.7% higher than the average cost of a Race frame.
Overview of components
Fork material
R3 Frameset Rim has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
