Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R3 Fork for Disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 8050, 11 spd
Front Derailleur
Shimano Ultegra Di2 8050, 11 spd
Shift Levers
Shimano Ultegra Di2 8070, 11 spd
Cassette
Shimano Ultegra CS-R8000, 11-30
Crank
Shimano Ultegra 8000 52/36
Bottom Bracket
Cervélo BBright Connect 24x90
Chain
Shimano CN-HG701, 11 spd
Wheels
Rims
1AER D3 38mm Disc Tubeless Ready
Tires
Vittoria Rubino Pro TLR G 25c
Brakes
Brakes
Shimano Ultegra 8070 Hydraulic Disc
Disk Rotors
Shimano SM-RT800, 160mm
Cockpit
Stem
Cervélo Ultra Light Alloy Stem
Handlebar
Cervélo AB07 Ultra Light Alloy Bar
Headset
FSA IS2 1-1/8 x 1-1/2
Seat
Saddle
Prologo Zero II STN
Seatpost
Cervélo Carbon SP19
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 575 mm | 577 mm | 594 mm | 611 mm | 627 mm |
| Rake | 57 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 510 mm | 527 mm | 543 mm | 558 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 89 mm | 110 mm | 133 mm | 159 mm | 188 mm | 214 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 967 mm | 969 mm | 968 mm | 988 mm | 1006 mm | 1022 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 688 mm | 718 mm | 748 mm | 779 mm | 810 mm | 841 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

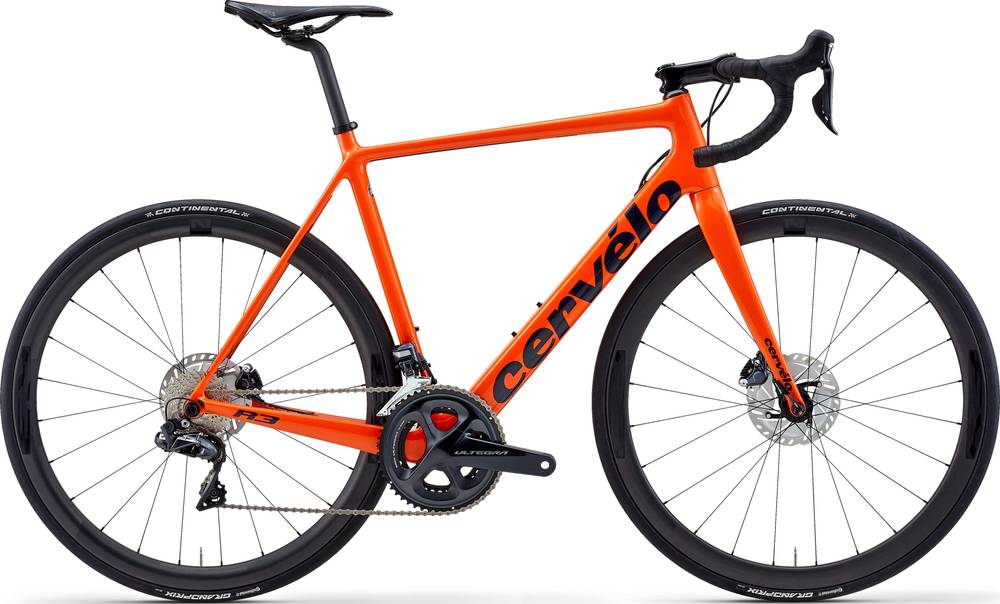

R3 Ultegra Di2 Disc is a Cervelo R3 model. Cervélo released 14 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Cervélo R3 Ultegra Rim 2019 has a starting price of 3700$. Cervélo R3 Ultegra Di2 Disc 2019 on the other hand is the most expensive at 6500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Cervélo released this model in 2019, its price was 6500$. In conclusion, this bike price is 94.03% more expensive than the price of the average Race bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The R3 Ultegra Di2 Disc 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
