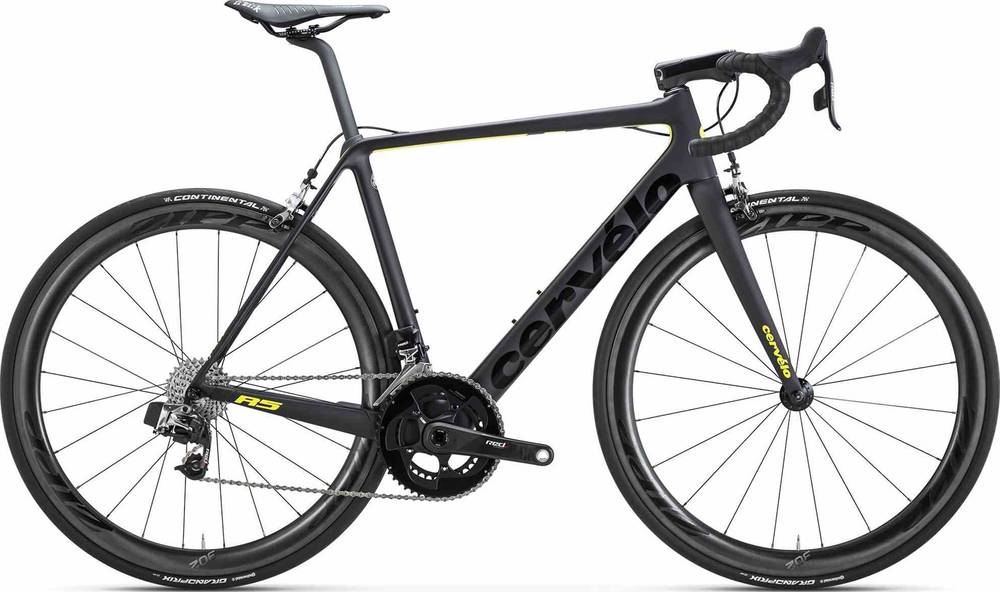

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered R5 Fork
Drivetrain
Rear Derailleur
SRAM RED eTap, 11 spd
Front Derailleur
SRAM RED eTap, 11 spd
Shift Levers
SRAM RED eTap, 11 spd
Cassette
SRAM XG 1190, 11-28
Crank
SRAM RED 52/36
Bottom Bracket
SRAM PF30
Chain
SRAM RED 22
Wheels
Rims
Zipp 302
Tires
Continental Grand Prix 700 x 25c
Brakes
Brakes
SRAM RED
Cockpit
Stem
Cervélo Carbon Stem
Handlebar
Cervélo, AB06
Headset
FSA IS2 1-1/8 x 1-1/2
Seat
Saddle
fi’zi:k Antares R5
Seatpost
Cervélo Carbon SP18
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.412 mm | 1.442 mm | 1.47 mm | 1.494 mm | 1.52 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 576 mm | 577 mm | 594 mm | 611 mm | 627 mm |
| Rake | 57 mm | 51 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 499 mm | 524 mm | 548 mm | 572 mm | 596 mm | 620 mm |
| Reach | 362 mm | 371 mm | 380 mm | 389 mm | 399 mm | 408 mm |
| Top Tube Length | 516 mm | 532 mm | 548 mm | 564 mm | 581 mm | 598 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 83 mm | 103 mm | 125 mm | 151 mm | 178 mm | 203 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 972 mm | 974 mm | 976 mm | 993 mm | 1011 mm | 1027 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 69 mm | 69 mm |
| Standover Height | 693 mm | 723 mm | 753 mm | 784 mm | 815 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
R5 eTAP completes the Cervelo R5 model. Cervélo released 33 bikes variations of this model so far. You can easily view all of the Cervelo R5 bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
R5 eTAP components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on R5 eTAP are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cervélo R5 eTAP has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
