Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cerv?©lo All-Carbon, Tapered S3 Fork For Disc
Cockpit
Stem
Cerv?©lo ST29
Handlebar
Cerv?©lo AB09
Headset
FSA IS2 1-1/4 x 1-3/8”
Seat
Seatpost
Cerv?©lo SP20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 574.9 mm | 576.9 mm | 578.6 mm | 586.1 mm | 603.9 mm | 620.2 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm | 43 mm |
| Trail | 57.1 mm | 57.1 mm | 57.1 mm | 57.1 mm | 57.1 mm | 57.1 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 381 mm | 391 mm | 400 mm |
| Top Tube Length | 510 mm | 527 mm | 543 mm | 558 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 103.4 mm | 123.9 mm | 147.2 mm | 170.6 mm | 199.3 mm | 225.4 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 963 mm | 965 mm | 968 mm | 975 mm | 994 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 708 mm | 737 mm | 766 mm | 796 mm | 819 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

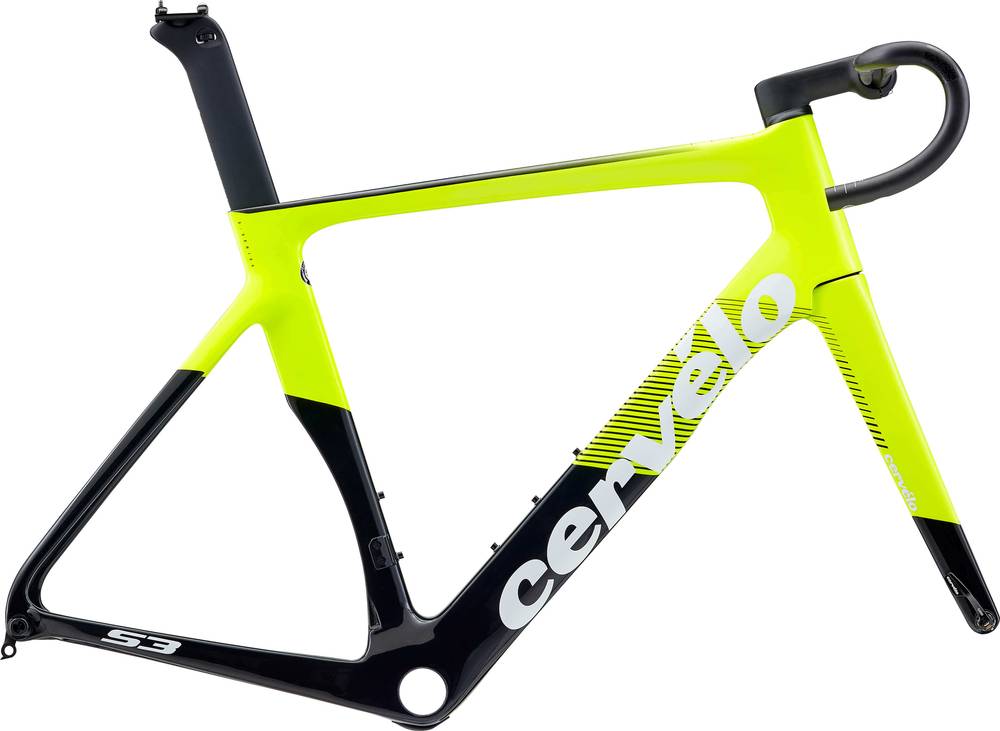

Model Overview
S3 Frameset Disc completes the Cervelo S3 model. There are 13 frames that carry this model name. You can easily view all of the Cervelo S3 frames models from 2019, here.
Model range prices
Cervélo S3 Frameset Disc 2019 is the cheapest frame model and costs 4000$. Cervélo S3 Frameset Rim 2019 is the most expensive one and costs 4200$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero frames
If you want an acceptable Aero frame you should know that the average price is 2657$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 4000$. In conclusion, this frame price is 50.55% more expensive than the price of the average Aero frame.
S3 Frameset Disc components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
