Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cerv?©lo All-Carbon, Tapered S3 Fork For Disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 8050, 11 spd
Front Derailleur
Shimano Ultegra Di2 8050, 11 spd
Shift Levers
Shimano Ultegra Di2 8070, 11 spd
Cassette
Shimano Ultegra CS-R8000, 11-30
Crank
Shimano Ultegra 8000 52/36
Bottom Bracket
Cerv?©lo BBright Connect 24x90
Chain
Shimano CN-HG701, 11 spd
Wheels
Rims
1AER D5 48mm Disc Tubeless Ready
Tires
Vittoria Rubino Pro TLR G 25c
Brakes
Brakes
Shimano Ultegra 8070 Hydraulic Disc
Disk Rotors
Shimano SM-RT800, 160mm
Cockpit
Stem
Cerv?©lo ST29
Handlebar
Cerv?©lo, AB09
Headset
FSA IS2 1-1/4 x 1-3/8”
Seat
Saddle
Prologo Dimension STN
Seatpost
Cerv?©lo Carbon, SP20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm | 1.53 mm | 1.56 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm |
| Front Center | 574.9 mm | 576.9 mm | 578.6 mm | 586.1 mm | 603.9 mm | 620.2 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm | 43 mm |
| Trail | 57.1 mm | 57.1 mm | 57.1 mm | 57.1 mm | 57.1 mm | 57.1 mm |
| Stack | 500 mm | 525 mm | 550 mm | 575 mm | 600 mm | 625 mm |
| Reach | 355 mm | 364 mm | 373 mm | 381 mm | 391 mm | 400 mm |
| Top Tube Length | 510 mm | 527 mm | 543 mm | 558 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 103.4 mm | 123.9 mm | 147.2 mm | 170.6 mm | 199.3 mm | 225.4 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 963 mm | 965 mm | 968 mm | 975 mm | 994 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 708 mm | 737 mm | 766 mm | 796 mm | 819 mm | 843 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

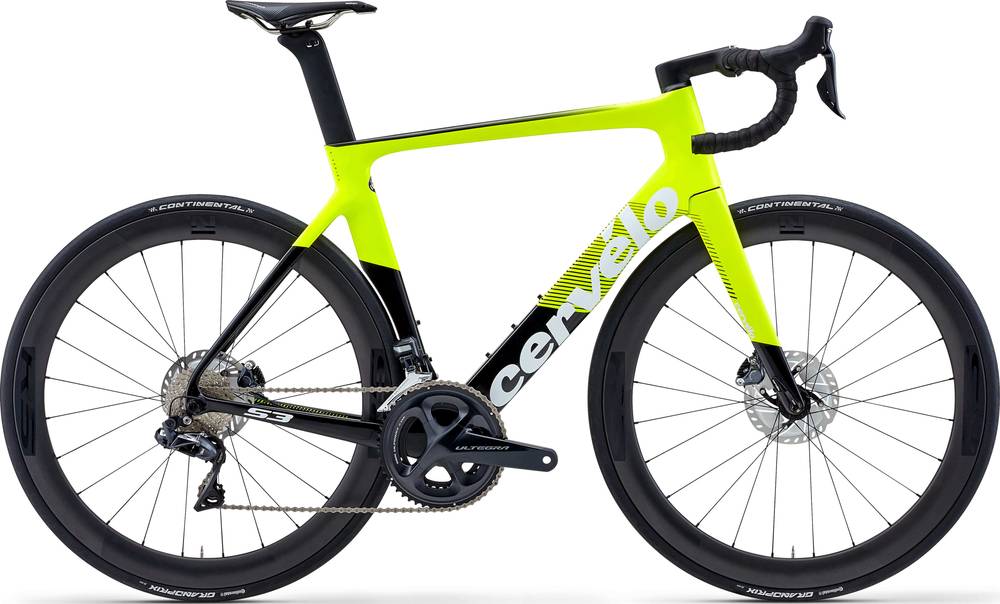

S3 Ultegra Di2 Disc completes the Cervelo S3 model. Cervélo launched 13 bikes of this model so far. Take a sneak peek at all Cervelo S3 bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Cervélo S3 Ultegra Rim 2019 has a starting price of 5000$. Cervélo S3 Ultegra Di2 Disc 2019 on the other hand is the most expensive at 6500$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 6500$. If we compare this with the average Aero bike cost we notice that the price is 54.36% higher.
Overview of components
Fork material
S3 Ultegra Di2 Disc has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The S3 Ultegra Di2 Disc 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The S3 Ultegra Di2 Disc has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
