Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S3 Fork for Disc
Cockpit
Headset
FSA IS2 1-1/8 x 1-3/8”
Seat
Seatpost
Cervélo, Aero SP17
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.436 mm | 1.468 mm | 1.499 mm | 1.528 mm | 1.556 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 575 mm | 587 mm | 604 mm | 620 mm |
| Rake | 53 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 54 mm | 57 mm | 56 mm | 55 mm | 55 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 360 mm | 369 mm | 378 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 516 mm | 531 mm | 548 mm | 564 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 72.2 ° | 73.1 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 108 mm | 128 mm | 148 mm | 173 mm | 199 mm | 225 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 970 mm | 970 mm | 982 mm | 999 mm | 1016 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 693 mm | 723 mm | 753 mm | 784 mm | 815 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

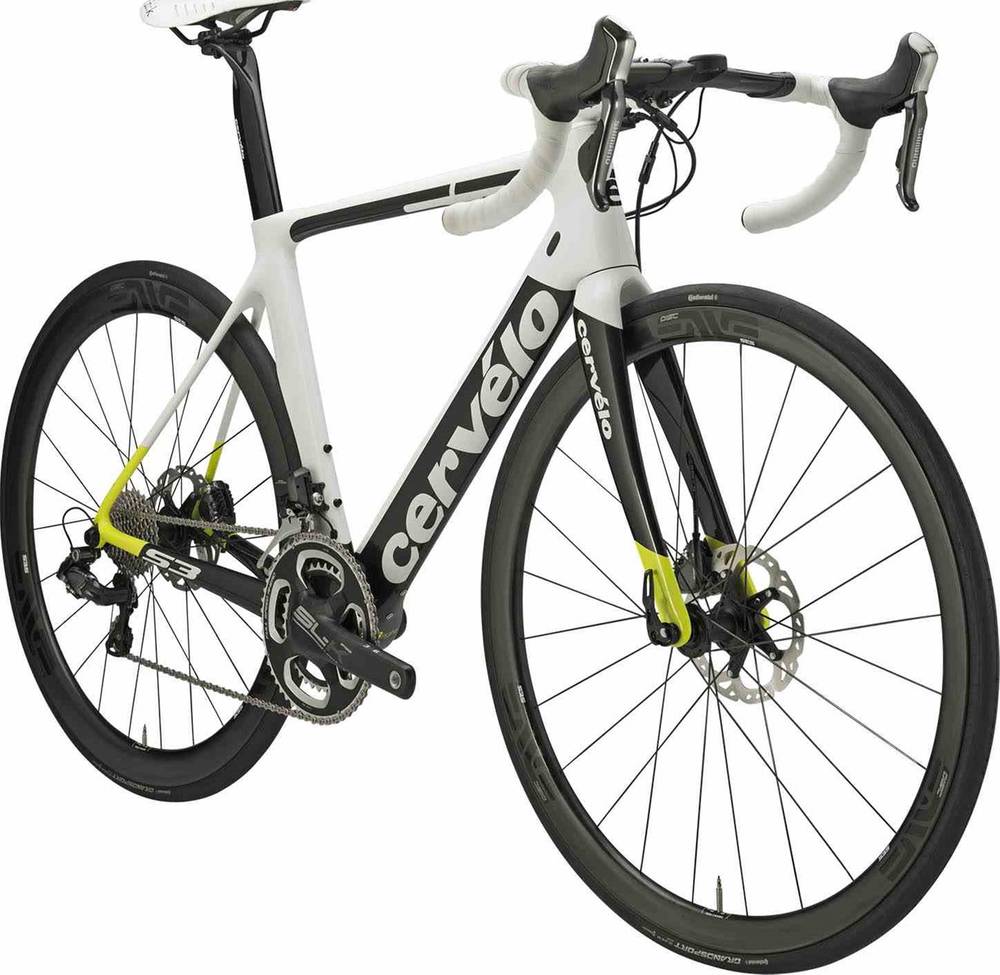

S3d Frameset is a Cervelo S3d model. 7 frames variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero frames
If you want to purchase a solid Aero frame, it is important to know that the average cost is 2657$. However, even though the average price of an Aero frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 2500$. Comparing the average cost of an Aero frame to this one, you will see that S3d Frameset price is 6.28% lower.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
