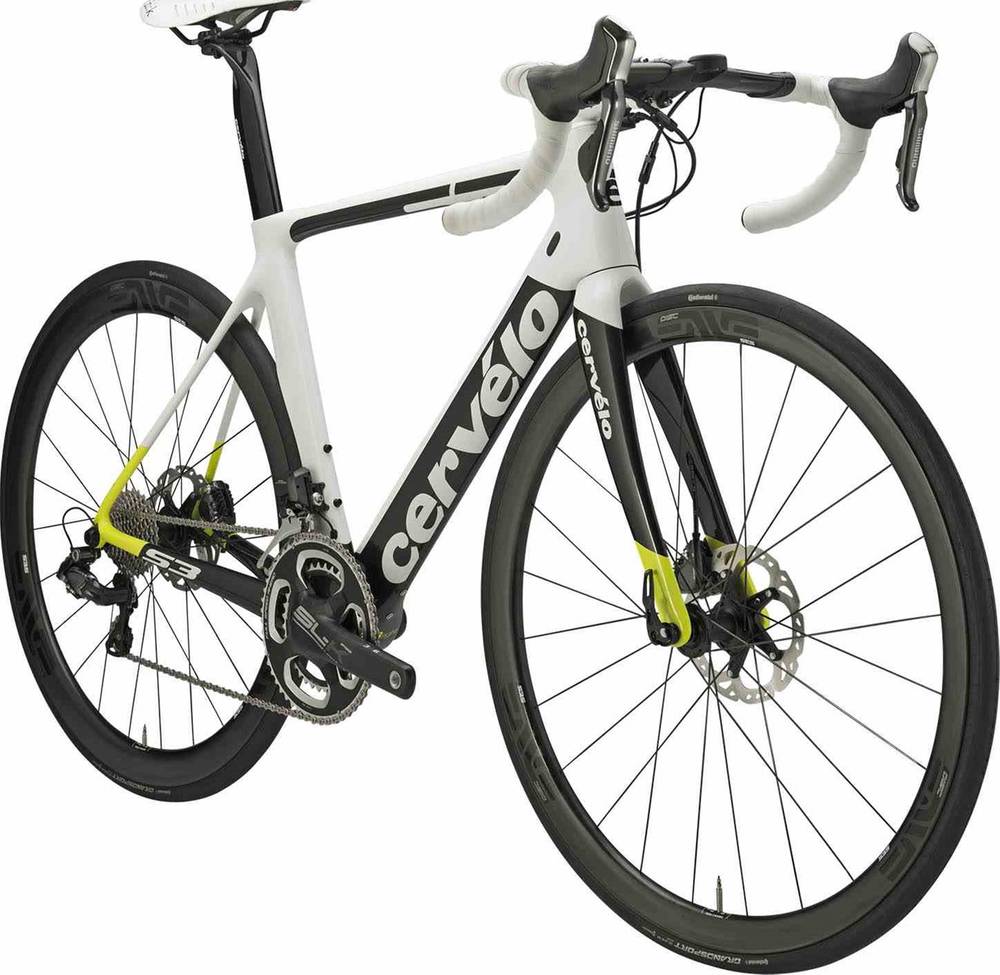

Cervélo S3d Ultegra Ui2 6870 2017
2017 Road
Estimate price |
7,400$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S3 Fork for Disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 6870, 11 spd
Front Derailleur
Shimano Ultegra Di2 6870, 11 spd
Shift Levers
Shimano Di2 ST-R785 11 spd
Cassette
Shimano Ultegra 6800, 11 spd, 11-28
Crank
FSA SLK 52x36
Bottom Bracket
FSA PF30
Chain
KMC X11EL
Wheels
Rims
ENVE SES 3.4 for Cervélo
Tires
Continental Grand Sport Race 700x23c
Brakes
Brakes
Shimano BR-RS805 Hydraulic Disc
Disk Rotors
Shimano RT81 160mm
Cockpit
Stem
FSA SLK
Handlebar
Cervelo Aero AB04
Headset
FSA IS2 1-1/8 x 1-3/8”
Seat
Saddle
fi’zi:k Antares
Seatpost
Cervélo, Aero SP17
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.436 mm | 1.468 mm | 1.499 mm | 1.528 mm | 1.556 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 575 mm | 587 mm | 604 mm | 620 mm |
| Rake | 53 mm | 53 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 54 mm | 57 mm | 56 mm | 55 mm | 55 mm |
| Stack | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm | 630 mm |
| Reach | 360 mm | 369 mm | 378 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 516 mm | 531 mm | 548 mm | 564 mm | 581 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 72.2 ° | 73.1 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 108 mm | 128 mm | 148 mm | 173 mm | 199 mm | 225 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 970 mm | 970 mm | 982 mm | 999 mm | 1016 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 693 mm | 723 mm | 753 mm | 784 mm | 815 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
S3d Ultegra Ui2 6870 completes the Cervelo S3d model. There are 7 bikes that carry this model name. Take a sneak peek at all Cervelo S3d bikes models from 2017, by clicking here.
Model range prices
The most economical model, the Cervélo S3d Ultegra 6800 2017 has a starting price of 4500$. Cervélo S3d Ultegra Ui2 6870 2017 on the other hand is the most expensive at 7400$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 7400$. Doing a quick comparison, we notice that S3d Ultegra Ui2 6870 price is 75.73% more expensive than the average cost of an Aero bike.
S3d Ultegra Ui2 6870 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Cervélo S3d Ultegra Ui2 6870 2017, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cervélo S3d Ultegra Ui2 6870 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
