Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S5 Fork
Drivetrain
Crank
Cervélo SP20 Carbon Aero Post
Bottom Bracket
Cervelo Handlebar Front Computer/Light Mount, Cervelo Rear Accessory Mount
Wheels
Tires
Cervélo CS028 Carbon V-Stem
Cockpit
Headset
FSA IS2 1 x 1-3/8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm |
| Front Center | 579 mm | 580 mm | 581 mm | 588 mm | 604 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm |
| Trail | 57.1 mm | 57 mm | 57.1 mm | 57 mm | 57 mm |
| Stack | 491 mm | 514 mm | 537 mm | 560 mm | 583 mm |
| Reach | 362 mm | 371 mm | 379 mm | 387 mm | 396 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 560 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 69 mm | 87 mm | 109 mm | 130 mm | 157 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 968 mm | 969 mm | 970 mm | 977 mm | 994 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 702 mm | 724 mm | 742 mm | 770 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

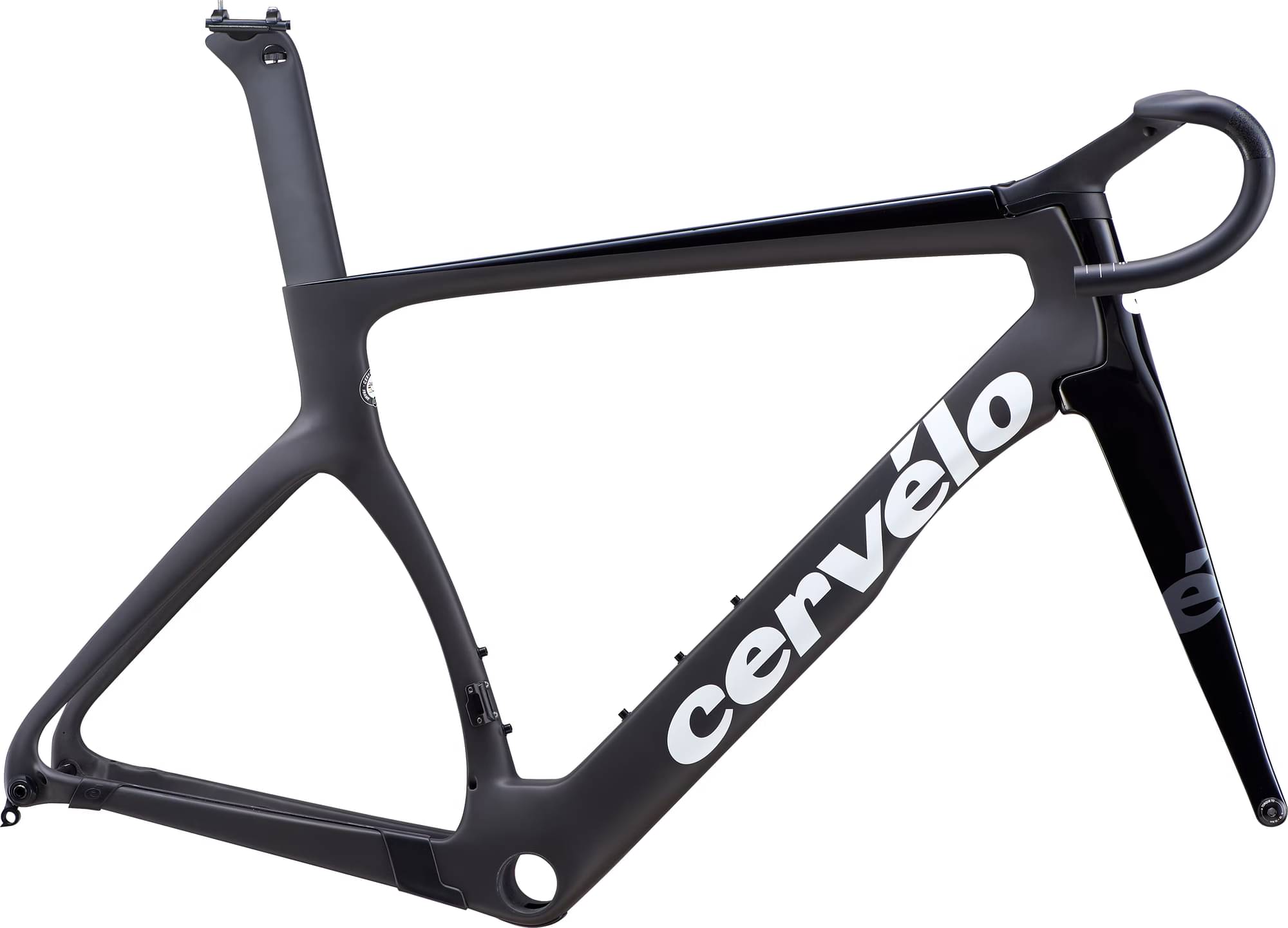

S5 Frameset belongs to the Cervelo S5 model. 40 frames variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero frames
If you want to purchase a solid Aero frame, it is important to know that the average cost is 2657$. However, you could also get a good Aero frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Cervélo released this model in 2022, its price was 5500$. In conclusion, this frame price is 107% more expensive than the price of the average Aero frame.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
