Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S5 Fork
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 8150, 12 spd
Front Derailleur
Shimano Ultegra Di2 8150, 12 spd
Shift Levers
Shimano Ultegra Di2 8170, 12 spd
Cassette
Shimano Ultegra CS-R8100, 12 spd, 11-30
Crank
Shimano Ultegra 8100 52/36
Bottom Bracket
Ceramic Speed 24
Chain
Shimano CN-M8100, 12 spd
Wheels
Rims
Reserve 50mm DT350, 24h (F), 24h (R), 21mm IW, Center-Lock, Tubeless Ready OR Reserve 50mm Zipp 76/176 HG, 24h (F), 24h (R), 21mm IW, Center-Lock, Tubeless Ready
Tires
Vittoria Corsa TLR G2.0 25c
Brakes
Brakes
rim
Cockpit
Stem
Cervélo CS028 Carbon V-Stem
Handlebar
Cervélo AB08 Carbon
Headset
FSA IS2 1 x 1-3/8
Seat
Saddle
Prologo Dimension NACK OR Selle Italia NOVUS BOOST EVO Superflow Carbon
Seatpost
Cervelo Carbon SP20 Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm |
| Front Center | 579 mm | 580 mm | 581 mm | 588 mm | 604 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm |
| Trail | 57.1 mm | 57 mm | 57.1 mm | 57 mm | 57 mm |
| Stack | 491 mm | 514 mm | 537 mm | 560 mm | 583 mm |
| Reach | 362 mm | 371 mm | 379 mm | 387 mm | 396 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 560 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 69 mm | 87 mm | 109 mm | 130 mm | 157 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 968 mm | 969 mm | 970 mm | 977 mm | 994 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 702 mm | 724 mm | 742 mm | 770 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

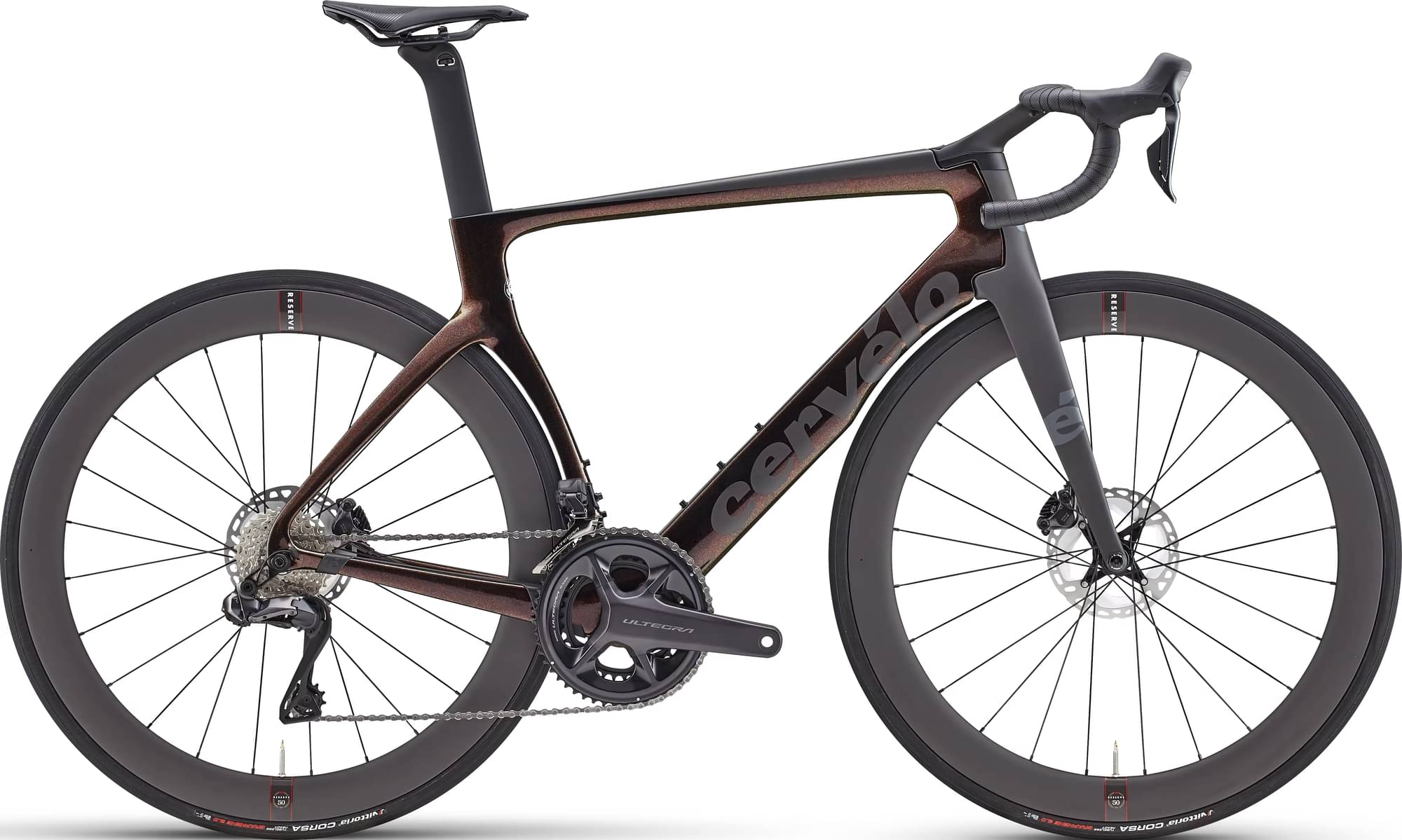

S5 Ultegra Di2 is part of the Cervelo S5 model. Cervélo released 40 bikes variations of this model so far. You can easily view all of the Cervelo S5 bikes models from 2022, here.
Model range prices
Cervélo S5 Rival eTap AXS 2022 is the most affordable bike of this model and has a price of 6900$. On the other hand, Cervélo S5 Dura Ace Di2 2022, is the most expensive and costs 12000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8700$. Doing a quick comparison, we notice that S5 Ultegra Di2 price is 106.6% more expensive than the average cost of an Aero bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on S5 Ultegra Di2 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The S5 Ultegra Di2 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
