Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S5 Fork For Disc
Drivetrain
Rear Derailleur
Shimano Ultegra 8000, 11 speed
Front Derailleur
Shimano Ultegra 8000, 11 speed
Shift Levers
Shimano Ultegra 8020, 11 speed
Cassette
Shimano Ultegra CS-R8000, 11-30
Crank
Shimano Ultegra 8000 52/36
Bottom Bracket
Cervelo BBright Connect 24x90
Chain
Shimano CN-HG701, 11 speed
Wheels
Rims
DT Swiss P1800 Spline 32 Disc
Tires
Continental GP4000 SII 25mm
Brakes
Brakes
Shimano Ultegra 8070
Disk Rotors
Shimano SM-RT800,160mm
Cockpit
Stem
Cervélo, CS28 V-Stem
Handlebar
Cervélo, AB08
Headset
FSA IS2 1 x 1-3/8
Seat
Saddle
Prologo Dimension T4.0
Seatpost
Cervelo SP20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm |
| Front Center | 579 mm | 580 mm | 581 mm | 588 mm | 604 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm |
| Trail | 57.1 mm | 57 mm | 57.1 mm | 57 mm | 57 mm |
| Stack | 491 mm | 514 mm | 537 mm | 560 mm | 583 mm |
| Reach | 362 mm | 371 mm | 379 mm | 387 mm | 396 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 560 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 71 mm | 112 mm | 134 mm | 155 mm | 182 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 968 mm | 969 mm | 970 mm | 977 mm | 994 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 702 mm | 724 mm | 742 mm | 770 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

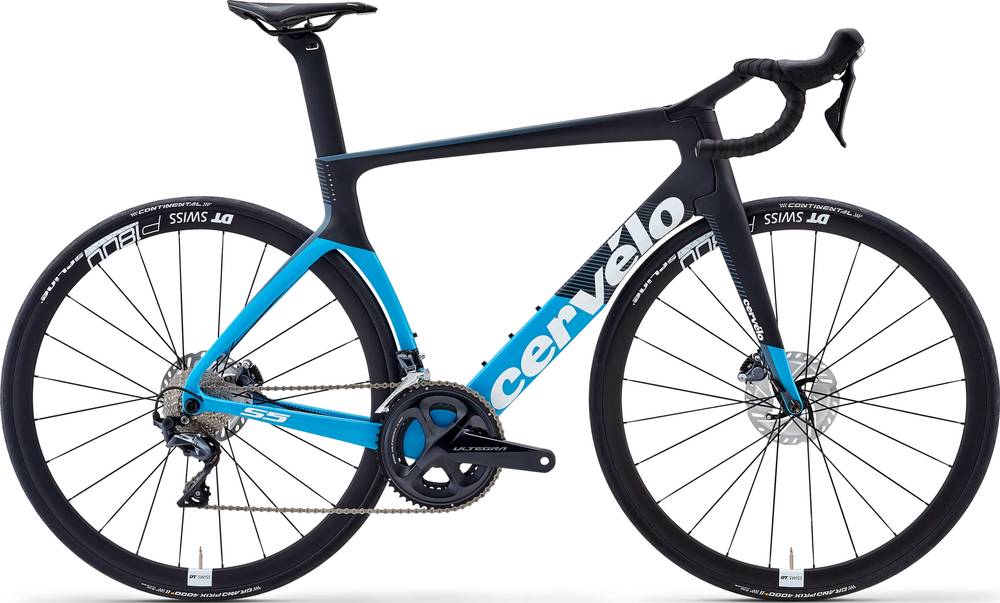

S5 Ultegra Disc is a Cervelo S5 model. There are 40 bikes that carry this model name. You can easily view all of the Cervelo S5 bikes models from 2019, here.
Model range prices
Cervélo S5 Ultegra Disc 2019 is the most economical model, with a starting price of 6500$. Cervélo S5 Dura Ace Di2 Disc 2019 on the other hand costs 12000$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 6500$. In conclusion, this bike price is 54.36% higher than the price of the average Aero bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the S5 Ultegra Disc model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
