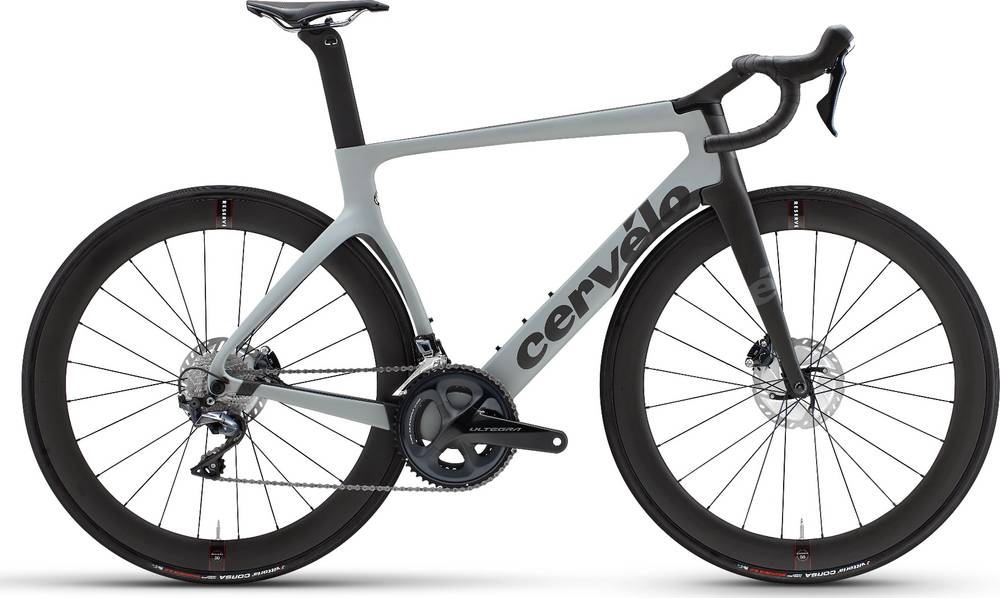

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Cervélo All-Carbon, Tapered S5 Fork
Drivetrain
Rear Derailleur
Shimano Ultegra 8000, 11 spd
Front Derailleur
Shimano Ultegra 8000, 11 spd
Shift Levers
Shimano Ultegra 8020, 11 spd
Cassette
Shimano Ultegra CS-R8000, 11 spd, 11-30
Crank
Shimano Ultegra 8000 52/36
Bottom Bracket
JY-BB 24
Chain
Shimano CN-HG701, 11 spd
Wheels
Rims
Reserve 50mm DT370, 24h (F), 24h (R), 21mm IW, Center-Lock, Tubeless Ready / Reserve 50mm DT370, 20h (F), 24h (R), 21mm IW, Center-Lock, Tubeless Ready
Tires
Vittoria Corsa TLR G 25c
Brakes
Brakes
Shimano Ultegra 8020 Hydraulic Disc
Disk Rotors
Shimano SM-RT800, 160mm
Cockpit
Stem
Cervélo CS028 Carbon V-Stem
Handlebar
Cervélo AB08 Carbon
Headset
FSA IS2 1 x 1-3/8
Seat
Saddle
Prologo Dimension Tirox
Seatpost
Cervélo SP20 Carbon Aero Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 268 mm |
| Front Center | 579 mm | 580 mm | 581 mm | 588 mm | 604 mm |
| Rake | 58 mm | 52 mm | 46 mm | 43 mm | 43 mm |
| Trail | 57.1 mm | 57 mm | 57.1 mm | 57 mm | 57 mm |
| Stack | 491 mm | 514 mm | 537 mm | 560 mm | 583 mm |
| Reach | 362 mm | 371 mm | 379 mm | 387 mm | 396 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 560 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 69 mm | 87 mm | 109 mm | 130 mm | 157 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 968 mm | 969 mm | 970 mm | 977 mm | 994 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 702 mm | 724 mm | 742 mm | 770 mm | 800 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
S5 Ultegra Disc completes the Cervelo S5 model. Cervélo released 40 bikes variations of this model so far. Take a sneak peek at all Cervelo S5 bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Cervélo S5 Ultegra Disc 2021 has a starting price of 7000$. Cervélo S5 Dura Ace Di2 Disc 2021 on the other hand is the most expensive at 11500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2021 and its price was 7000$. If we compare this with the average Aero bike cost we notice that the price is 66.23% higher.
Overview of components
Fork material
S5 Ultegra Disc has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The S5 Ultegra Disc 2021 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
