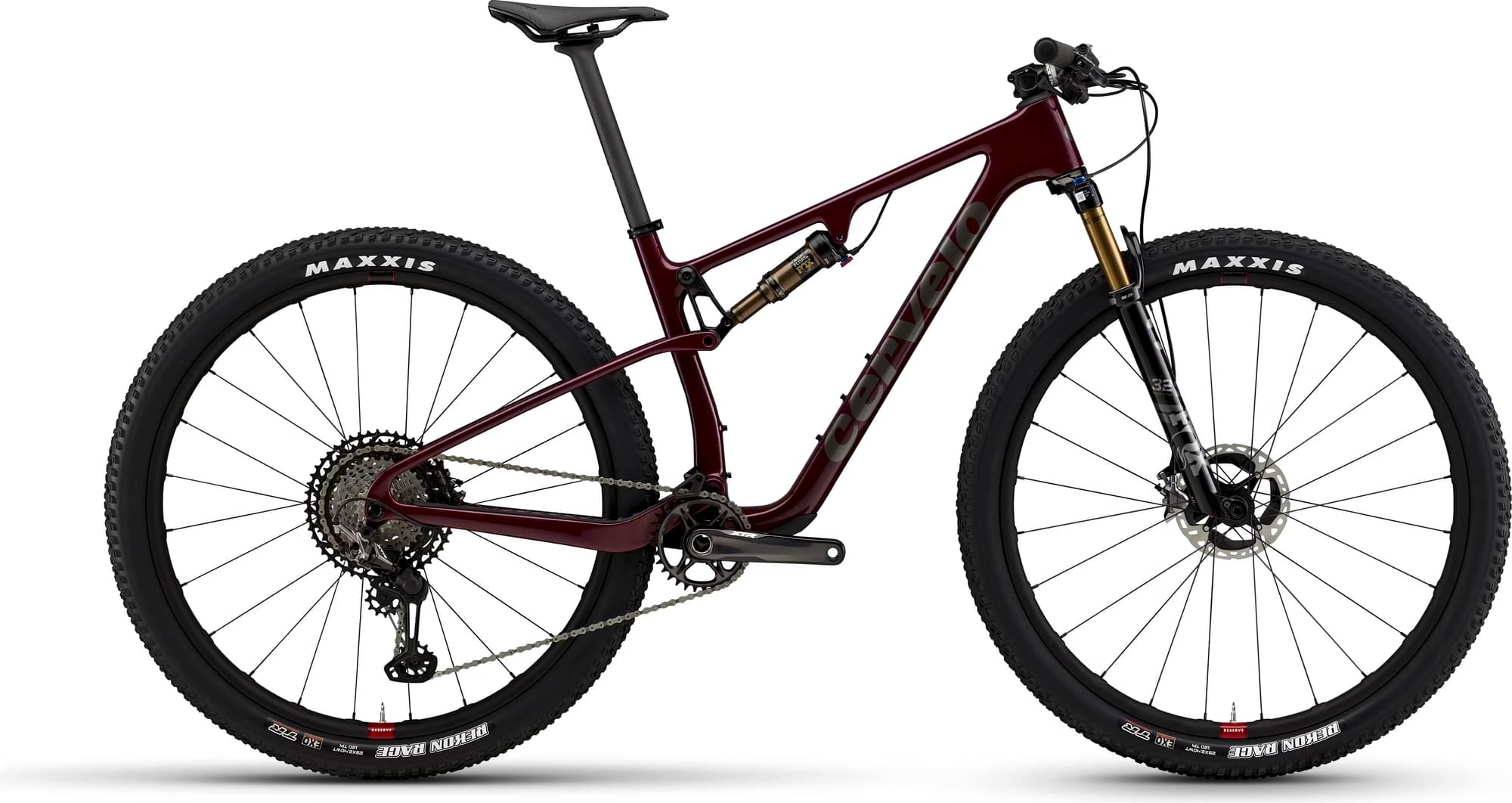

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber
Suspension Fork
Fox 32 Step-cast Factory, 100mm travel
Rear Shock
Fox Factory Float SL, 2 position remote damper, 190mm x 40mm
Drivetrain
Rear Derailleur
Shimano XTR, M9100 SGS, 12 speed
Shift Levers
Shimano XTR, M9100, 12 speed
Cassette
Shimano M9101, 10-51, 12 speed
Crank
Shimano XTR, M9125, 32T, 12 Speed
Bottom Bracket
Shimano XTR, BSA, 73mm
Chain
Shimano M9100, 12 speed
Wheels
Rims
Reserve 28 XC, 28mm IW, DT Swiss 240,12x148mm, MS freehub, 24H, centerlock, tubeless compatible, Reserve 28 XC, 28mm IW, DT Swiss 240, 15x110mm, 24H, centerlock, tubeless compatible
Tires
Maxxis Rekon Race, EXO 120TPI, 29x2.4
Brakes
Brakes
Shimano XTR 2 piston
Brake Levers
Shimano XTR M9100 2 Piston
Cockpit
Stem
Race Face Aeffect Alloy, 35mm clamp, 6 degree
Handlebar
Race Face Next Carbon, 35mm clamp, 760mm width, 10mm rise
Headset
FSA IS2 1-1/2 x 1-1/2
Seat
Saddle
Prologo Dimension NDR Nack
Seatpost
Cervélo SP29 Carbon 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.387 mm | 1.326 mm | 1.281 mm | 1.238 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 692 mm | 718 mm | 746 mm | 779 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 584 mm | 590 mm | 601 mm | 614 mm |
| Reach | 421 mm | 445 mm | 469 mm | 496 mm |
| Top Tube Length | 561.6 mm | 589.1 mm | 617.3 mm | 649.1 mm |
| Seat Tube Angle | 76.5 ° | 76.3 ° | 76.2 ° | 76 ° |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 96 mm | 102 mm | 114 mm | 128 mm |
| Chainstay Length | 432 mm | 435 mm | 437 mm | 440 mm |
| Wheelbase | 1120 mm | 1149 mm | 1180 mm | 1215 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 746 mm | 744 mm | 744 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ZFS-5 XTR completes the Cervelo Zfs 5 model. There are 10 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Cervélo ZFS-5 GX Eagle 2023 is the most economical model, with a starting price of 5000$. Cervélo ZFS-5 XX SL AXS 2023 on the other hand costs 10700$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8700$. Doing a quick comparison, we notice that ZFS-5 XTR price is 356.69% higher than the average cost of a Crosscountry bike.
ZFS-5 XTR components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The ZFS-5 XTR 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Cervélo ZFS-5 XTR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
