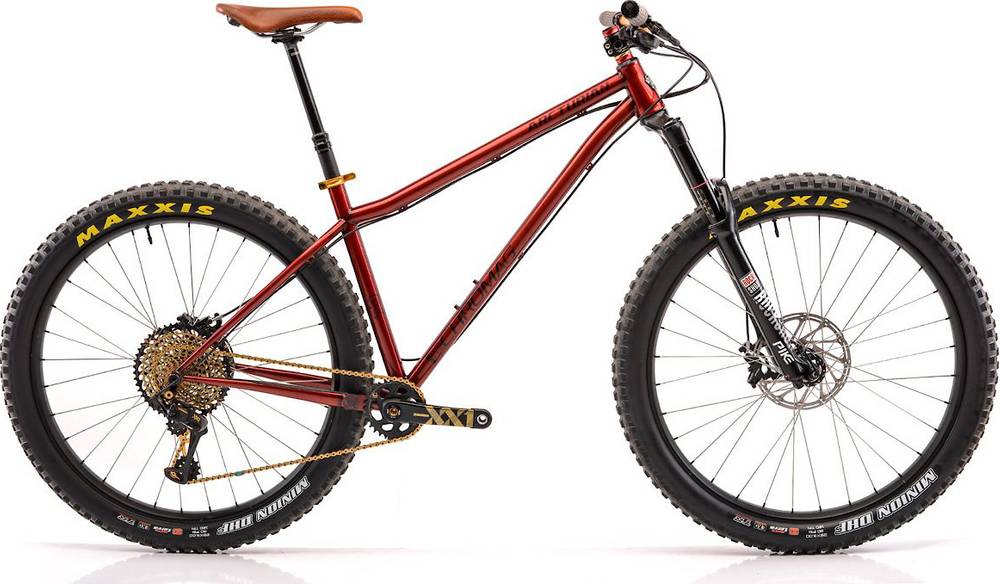

Chromag Arcturian GX Eagle 2020
2020 Mountain
Estimate price |
4,560$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 160mm -
Fork RockShox Pike
-
Groupset GX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Pike+
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle
Bottom Bracket
92mm PressFit (PF92)
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Chromag Magna40
Spokes
Chromag wheelset
Tires
Front: Maxxis Minion DHF, 29" x 3.0", Rear: Maxxis Minion DHR II, 29" x 3.0"
Brakes
Brakes
SRAM G2 RS, 180mm rotors
Brake Levers
SRAM G2 RS
Cockpit
Stem
Chromag HiFi, 40mm length
Handlebar
Chromag OSX, 25mm rise, 780mm width
Grips
Chromag Squarewave
Headset
Cane Creek Forty, ZS44 upper, ZS56 lower
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Chromag Dolomite, Option: RockShox Reverb dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD/LG | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.32 mm | 1.26 mm |
| Bottom Bracket Height | 317.5 mm | 317.5 mm | 317.5 mm |
| Stack | 664.3 mm | 664.3 mm | 664.3 mm |
| Reach | 479.6 mm | 504.3 mm | 529.3 mm |
| Top Tube Length | 632.3 mm | 657 mm | 682 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 437.3 mm | 460 mm | 492 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1256 mm | 1281 mm | 1306 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm |
| Standover Height | 747 mm | 769 mm | 800 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
Arcturian GX Eagle is part of the Chromag Arcturian model. There are 4 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Chromag Arcturian NX Eagle 2020 has a starting price of 4010$. Chromag Arcturian X01 Eagle 2020 on the other hand is the most expensive at 5510$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 4560$. Doing a quick comparison, we notice that Arcturian GX Eagle price is 26.7% more expensive than the average cost of an Enduro bike.
Arcturian GX Eagle components
Fork
The Arcturian GX Eagle comes factory-installed with the RockShox Pike fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Arcturian GX Eagle model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Arcturian GX Eagle. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
