Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

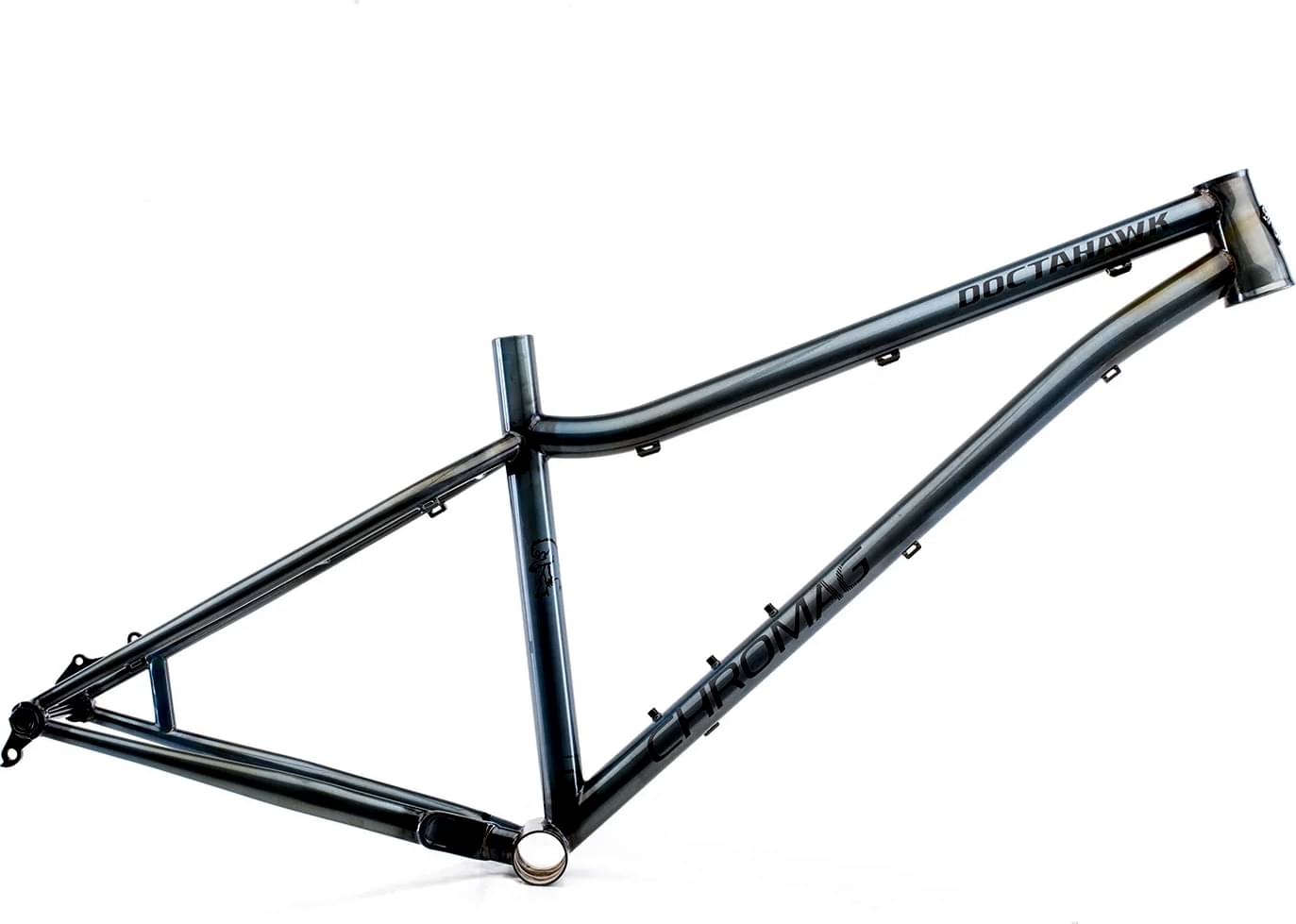

Frame Steel -
Wheels 29" -
Travel Front 170mm -
Fork RockShox ZEB Select+
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rockshox Zeb Select+ 170mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle 10-52t
Crank
SRAM X1 170mm
Bottom Bracket
92mm Press Fit (PF92)*
Chain
SRAM X01 Eagle
Wheels
Front Hub
Chromag R4
Rear Hub
Chromag R4
Rims
Chromag 29" BA30
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Chromag HiFi 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm
Grips
Chromag Format
Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Chromag Bassix
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.35 mm | 1.3 mm | 1.25 mm |
| Bottom Bracket Height | 323 mm | 323 mm | 323 mm | 323 mm | 323 mm |
| Front Center | 780 mm | 802 mm | 828 mm | 862 mm | 892 mm |
| Rake | 38 mm | 38 mm | 42 mm | 46 mm | 46 mm |
| Trail | 152 mm | 152 mm | 148 mm | 143 mm | 143 mm |
| Stack | 645 mm | 645 mm | 645 mm | 654 mm | 663 mm |
| Reach | 436 mm | 458 mm | 479 mm | 504 mm | 529 mm |
| Top Tube Length | 588 mm | 609 mm | 630 mm | 658 mm | 685 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 356 mm | 382 mm | 419 mm | 445 mm | 482 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 442 mm | 442 mm |
| Wheelbase | 1208 mm | 1230 mm | 1256 mm | 1300 mm | 1330 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 676 mm | 701 mm | 737 mm | 763 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |

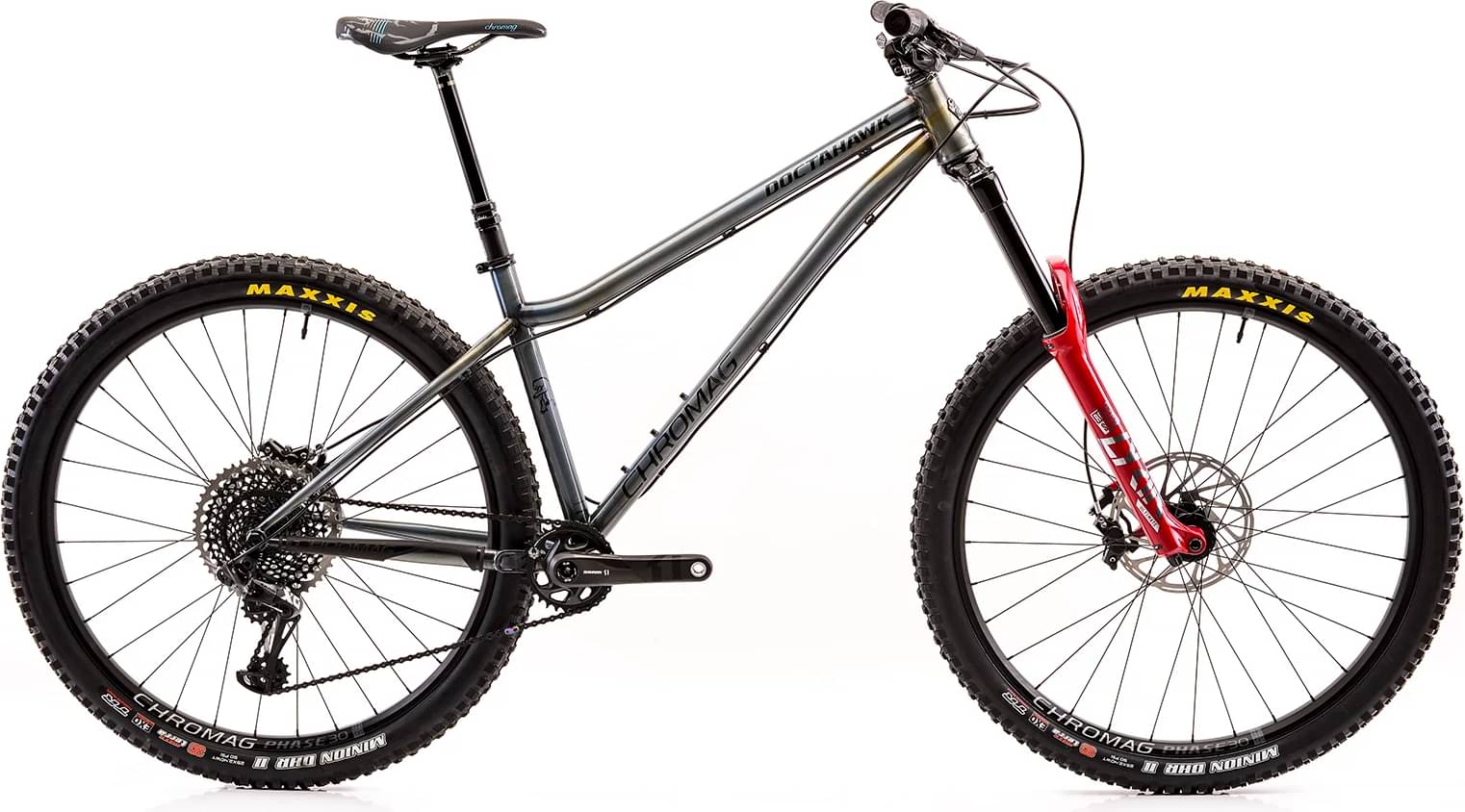

About this model
DOCTAHAWK G1 completes the Chromag Doctahawk model. Chromag launched 13 bikes of this model so far. You can easily view all of the Chromag Doctahawk bikes models from 2023, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
DOCTAHAWK G1 components
Fork
Chromag DOCTAHAWK G1 2023 bike is equipped with the RockShox ZEB Select+ fork, and has 170mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the DOCTAHAWK G1 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Chromag DOCTAHAWK G1 bike has 5 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
