Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Steel -
Wheels 29" -
Travel Rear 158mm -
Suspension Full
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
73mm Threaded
Cockpit
Headset
44-56 Semi Integrated
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.32 mm | 1.27 mm | 1.24 mm | 1.22 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 794 mm | 816 mm | 842 mm | 864 mm | 886 mm |
| Rake | 43 mm | 43 mm | 49 mm | 42 mm | 43 mm |
| Trail | 139 mm | 139 mm | 132 mm | 140 mm | 139 mm |
| Stack | 624 mm | 624 mm | 626 mm | 638 mm | 647 mm |
| Reach | 450 mm | 472 mm | 491 mm | 514 mm | 531 mm |
| Top Tube Length | 571 mm | 593 mm | 613.5 mm | 638 mm | 657 mm |
| Seat Tube Angle | 79 ° | 79 ° | 79 ° | 79 ° | 79 ° |
| Seat Tube Length | 350 mm | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1233 mm | 1255 mm | 1281 mm | 1303 mm | 1325 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 690 mm | 719 mm | 748 mm | 778 mm | 807 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
Model Overview

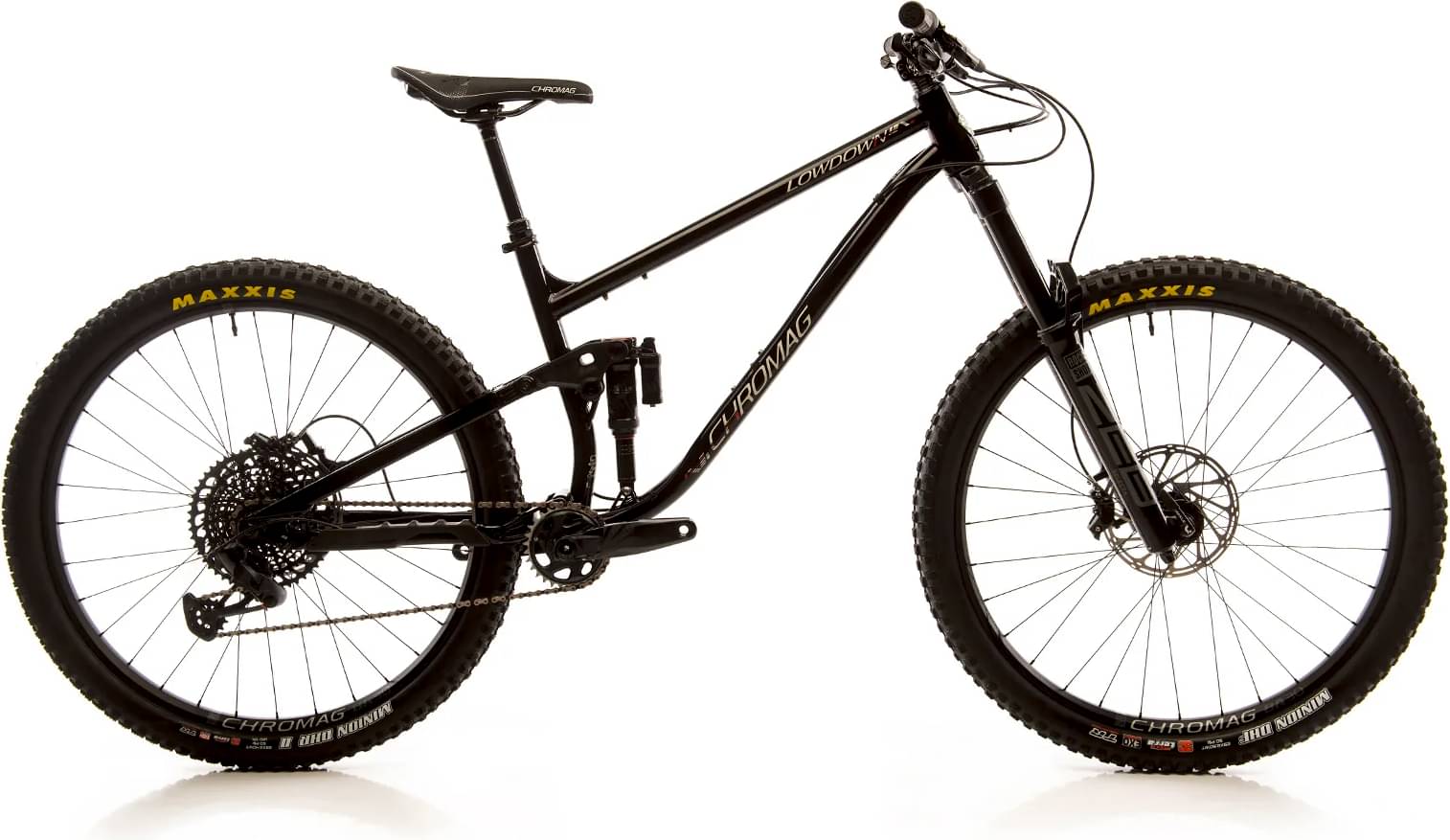

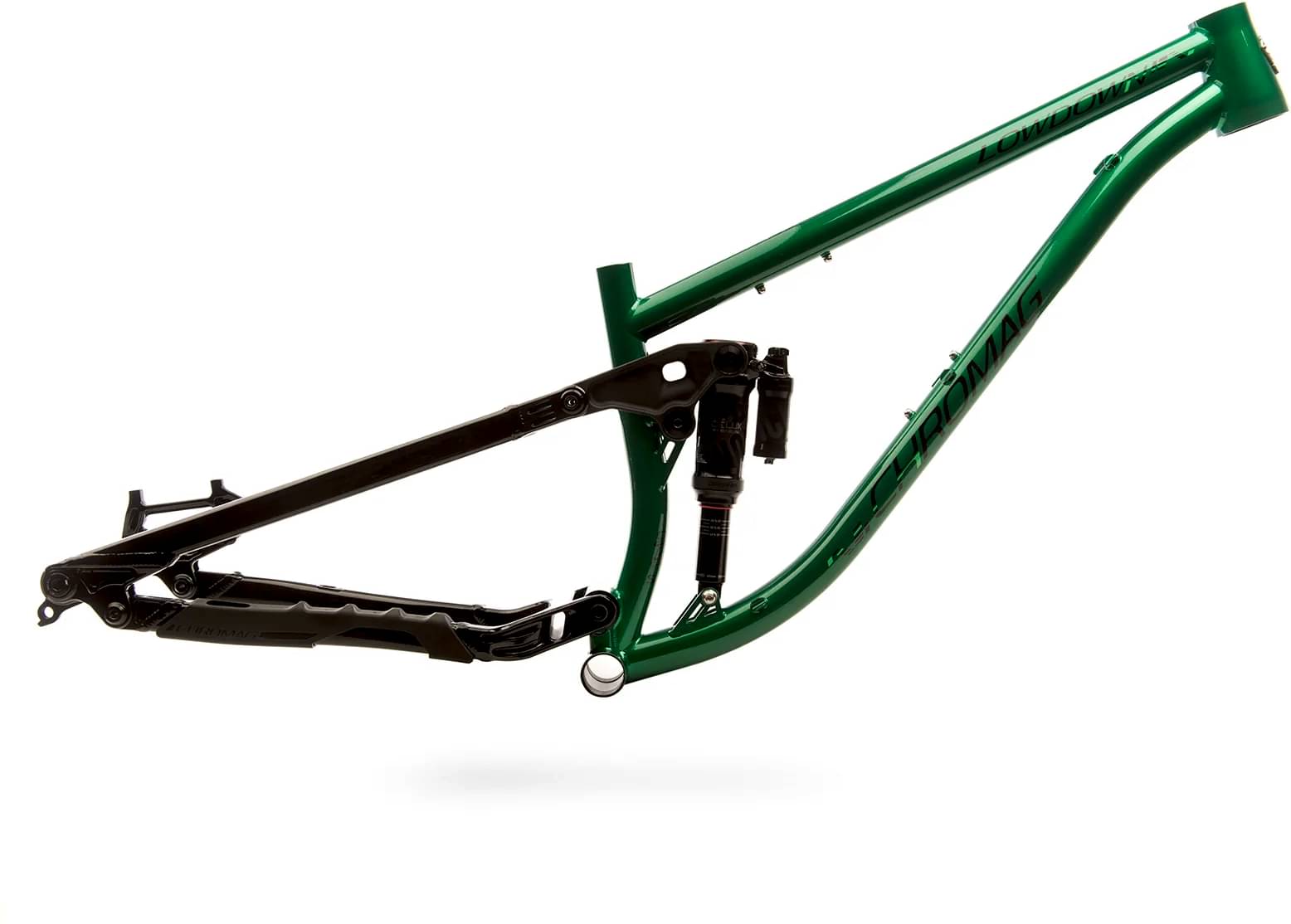

Lowdown Frame is a Chromag Lowdown model. There are 5 frames that carry this model name. Take a sneak peek at all Chromag Lowdown frames models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro frames
According to our math, the average price for a trustworthy Enduro frame is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3650$. In conclusion, this frame price is 92.61% higher than the price of the average Enduro frame.
Overview of components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
Lowdown Frame comes in 5 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
