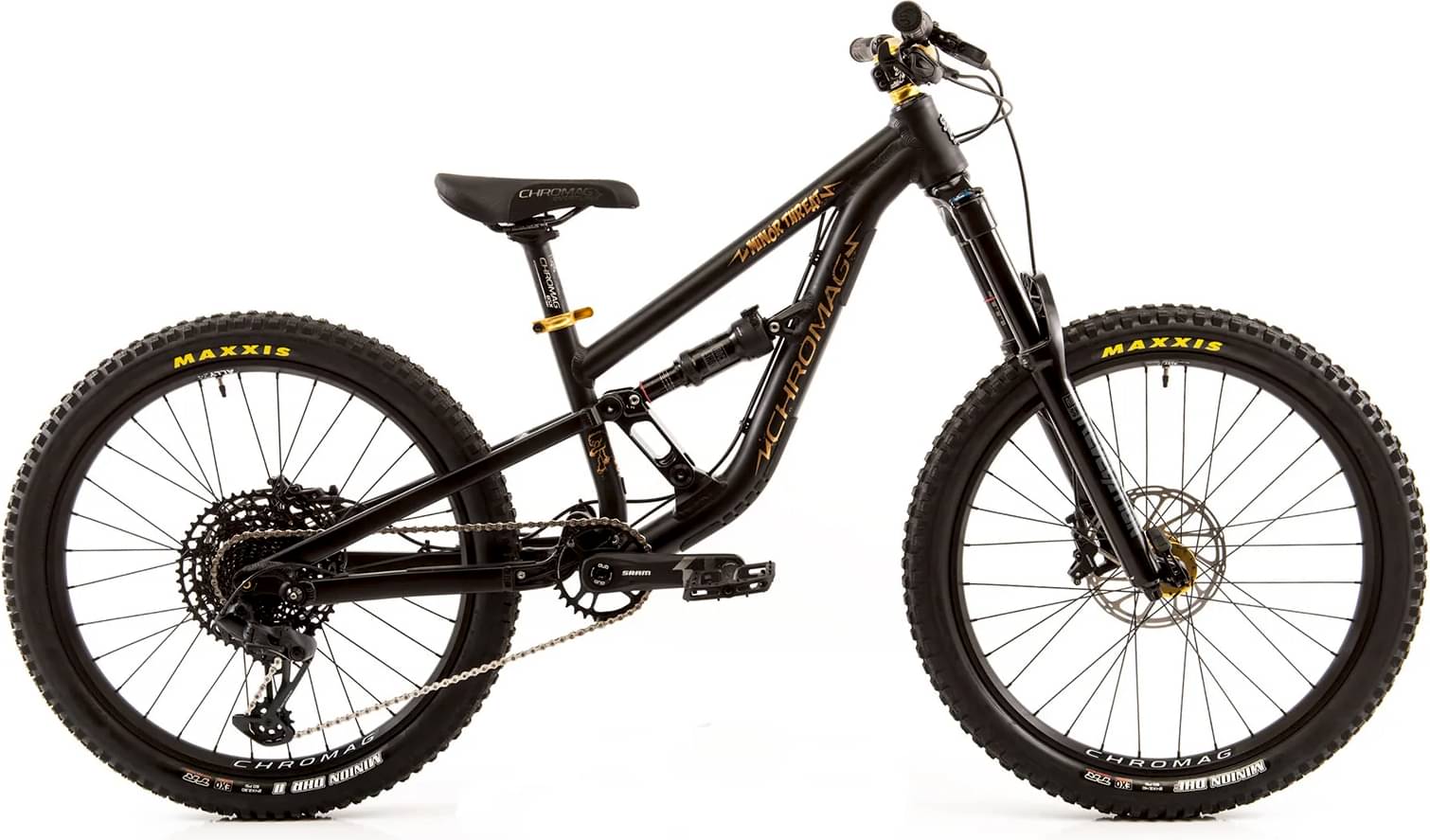

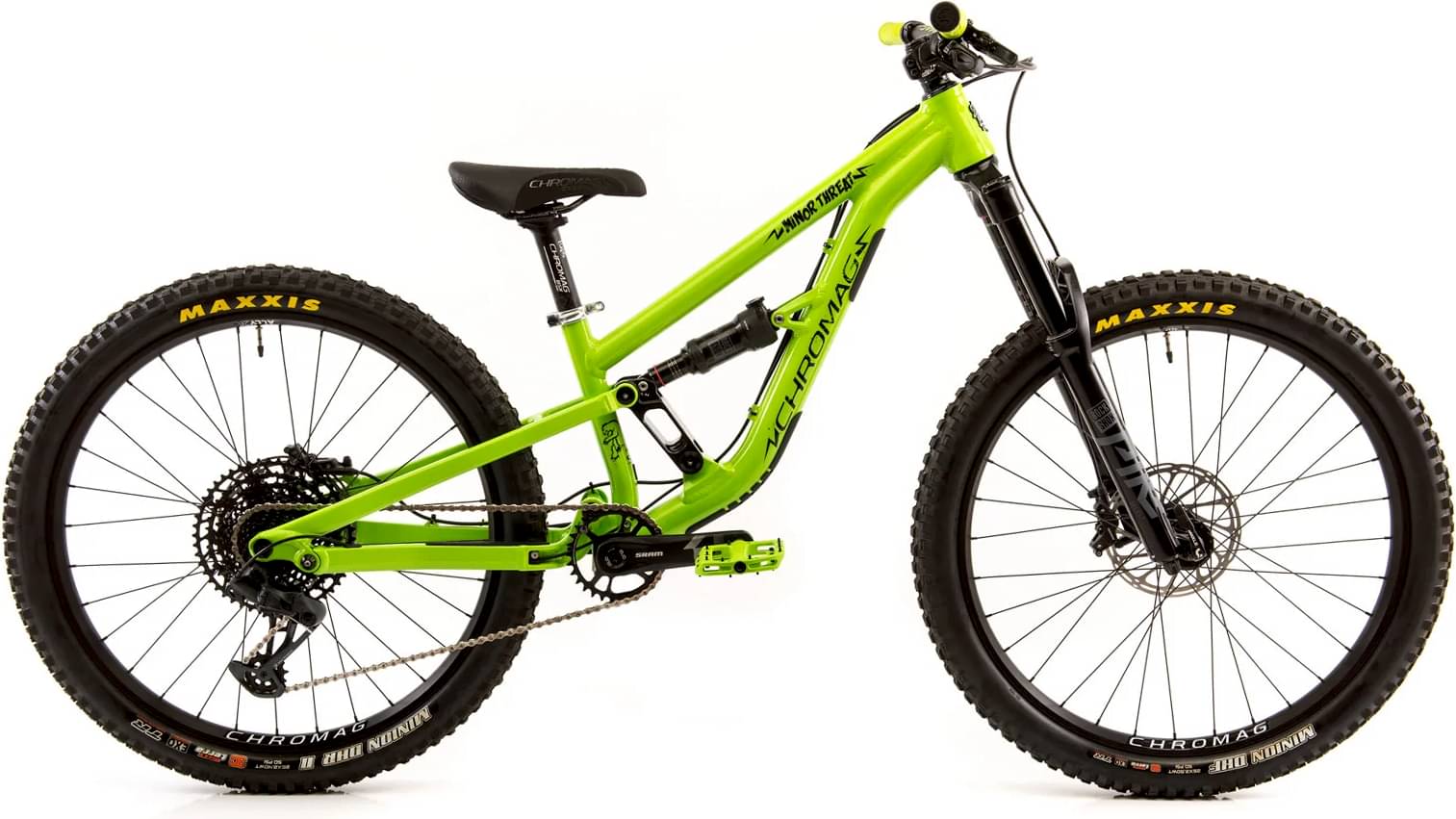

Chromag Minor Threat S1 2023
2023 Mountain
Estimate price |
3,400$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 24" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S1
127cm - 142cm
S1
127cm - 142cm
S2
140cm - 158cm
S2
140cm - 158cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
ROCKSHOX REVELATION RC 140MM BOOST 15X110 27.5"
Rear Shock
ROCKSHOX DELUXE SELECT R 190X45MM
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM NX Eagle 10-50t
Crank
SRAM X1, 155mm
Bottom Bracket
73mm Threaded, ISCG Tabs
Chain
SRAM GX Eagle
Pedals
-
Wheels
Rims

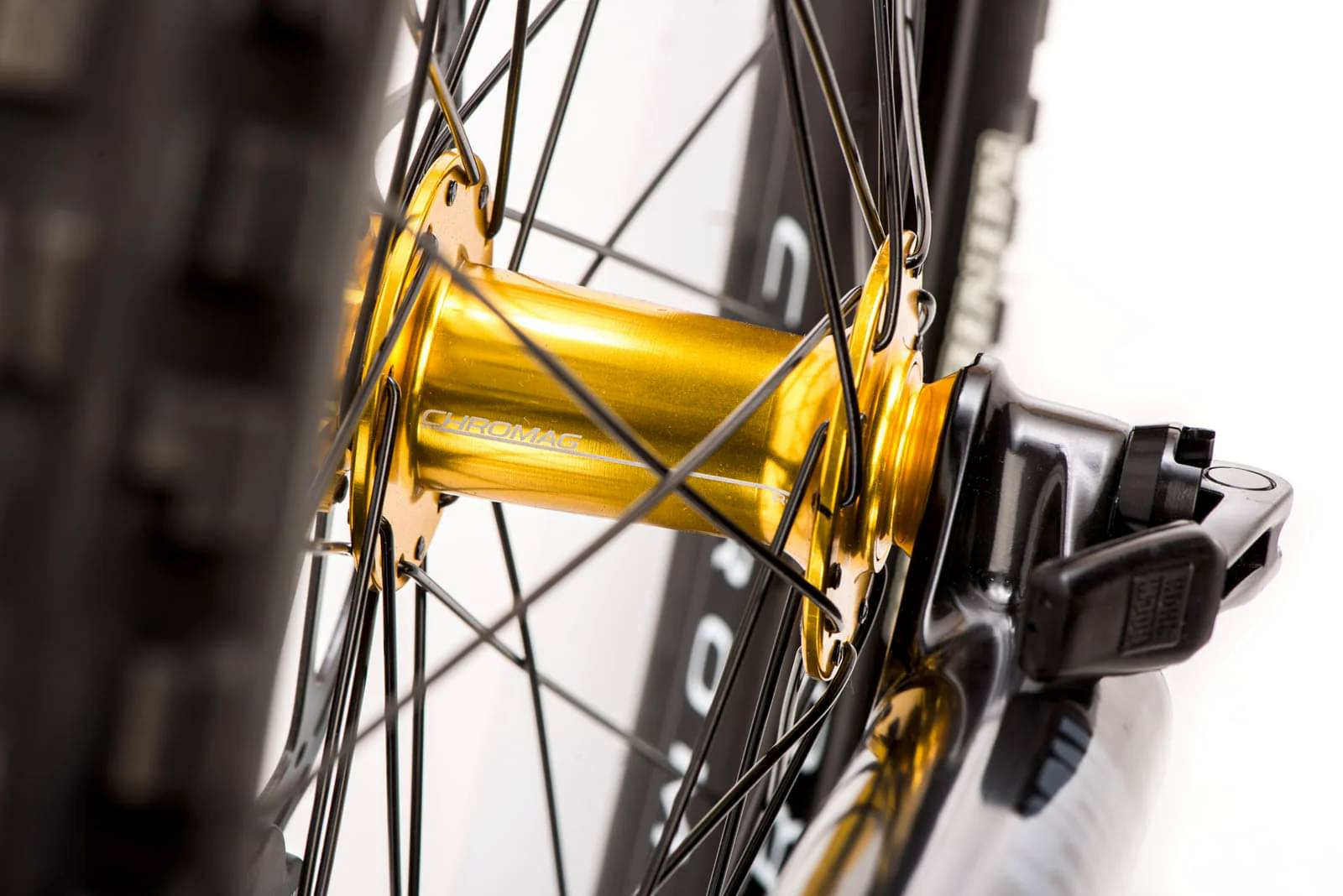

Chromag 24" Ally Rims / Chromag R4 Hubs
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM G2 R
Cockpit

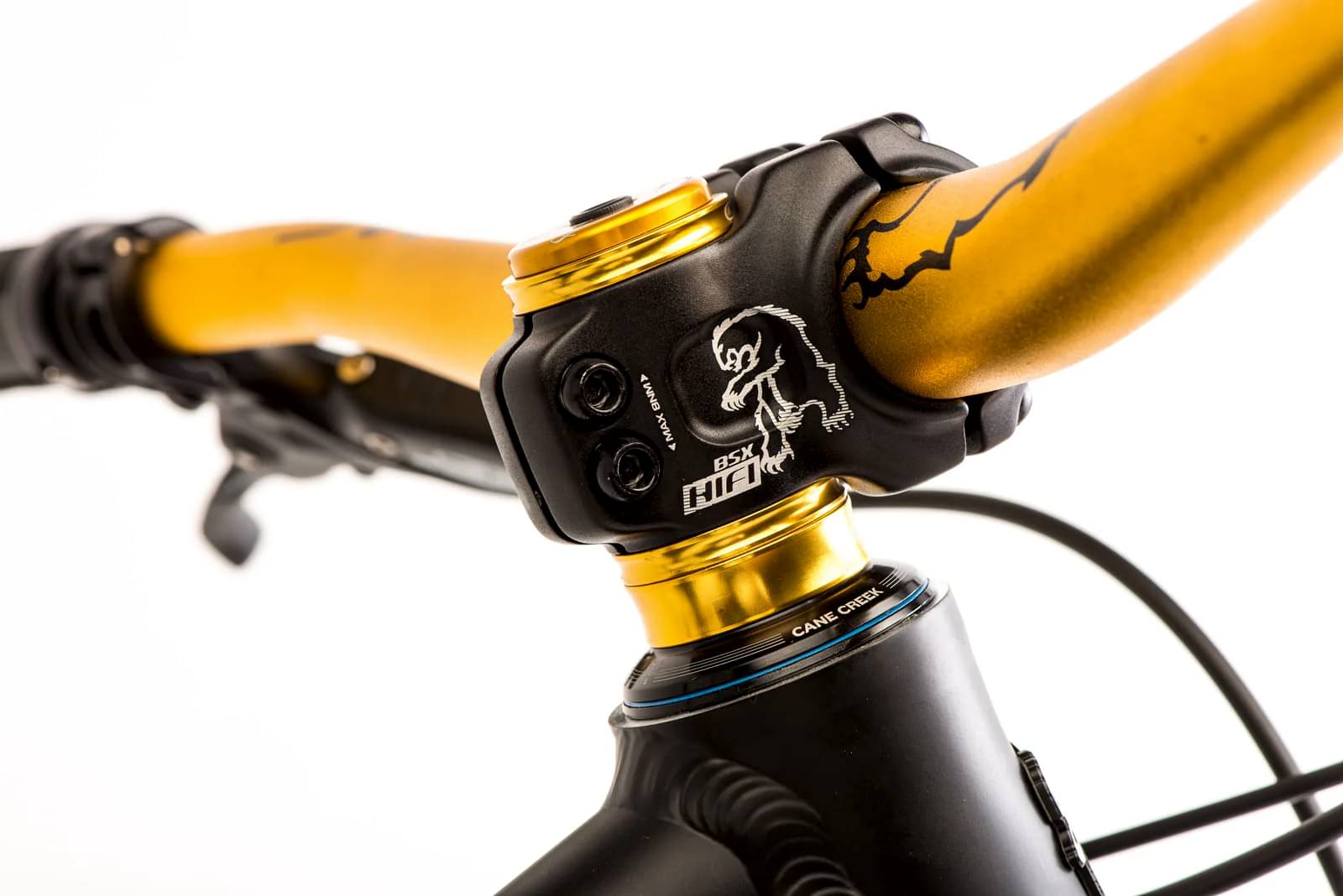

Stem
CHROMAG HIFI 31mm
Handlebar
CHROMAG VANGUARD 720MM
Grips
CHROMAG FORMAT
Headset
Cane Creek Forty ZS 44/56
Seat
Saddle
CHROMAG OVERTURE
Seatpost
CHROMAG BASSIX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S1 | S2 | S2 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.54 mm | 1.38 mm | 1.43 mm |
| Bottom Bracket Height | 322 mm | 310 mm | 345 mm | 333 mm |
| Front Center | 670 mm | 670 mm | 715 mm | 714 mm |
| Rake | 37 mm | 37 mm | 38 mm | 37 mm |
| Stack | 559 mm | 566 mm | 575 mm | 582 mm |
| Reach | 377 mm | 367 mm | 417 mm | 407 mm |
| Top Tube Length | 504 mm | 506 mm | 548 mm | 550 mm |
| Seat Tube Angle | 77 ° | 76 ° | 77 ° | 76 ° |
| Seat Tube Length | 305 mm | 305 mm | 305 mm | 305 mm |
| Head Tube Angle | 65 ° | 64 ° | 65 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm |
| Chainstay Length | 424 mm | 427 mm | 434 mm | 437 mm |
| Wheelbase | 1094 mm | 1097 mm | 1149 mm | 1151 mm |
| Bottom Bracket Drop | -4 mm | 8 mm | 3 mm | 15 mm |
| Standover Height | 626 mm | 614 mm | 649 mm | 637 mm |
| Wheels | 24" | 24" | 26" | 26" |
| Rider Min Height | 127 cm | 127 cm | 140 cm | 140 cm |
| Rider Max Height | 142 cm | 142 cm | 158 cm | 158 cm |
About this model
Minor Threat S1 is part of the Chromag Minor model. Chromag launched 6 bikes of this model so far. You can easily view all of the Chromag Minor bikes models from 2023, here.
Model range prices
Chromag Minor Threat S1 2023 is the cheapest bike model and costs 3400$. Chromag Minor Threat S2 2023 is the most expensive one and costs 3400$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 3400$. In conclusion, this bike price is 23.1% higher than the price of the average Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.6 kg (29.98 lbs), the Minor Threat S1 model is a bit heavier than average. In conclusion, the average Trail bike weighs 5.59% less than Minor Threat S1.
Minor Threat S1 components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Minor Threat S1 has a rear shock with a travel of 140mm. The model ROCKSHOX DELUXE SELECT R 190X45MM is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Minor Threat S1 bike is equipped with the 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
When you want to stop the bike in time, the brakes are vital. The Minor Threat S1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 127 cm – 158 cm (4.17 ft – 5.18 ft). In conclusion, it won’t take much to find one that’s right for you.
