Bike details
Overview
Key information split into simple groups.
Bike summary
-
-

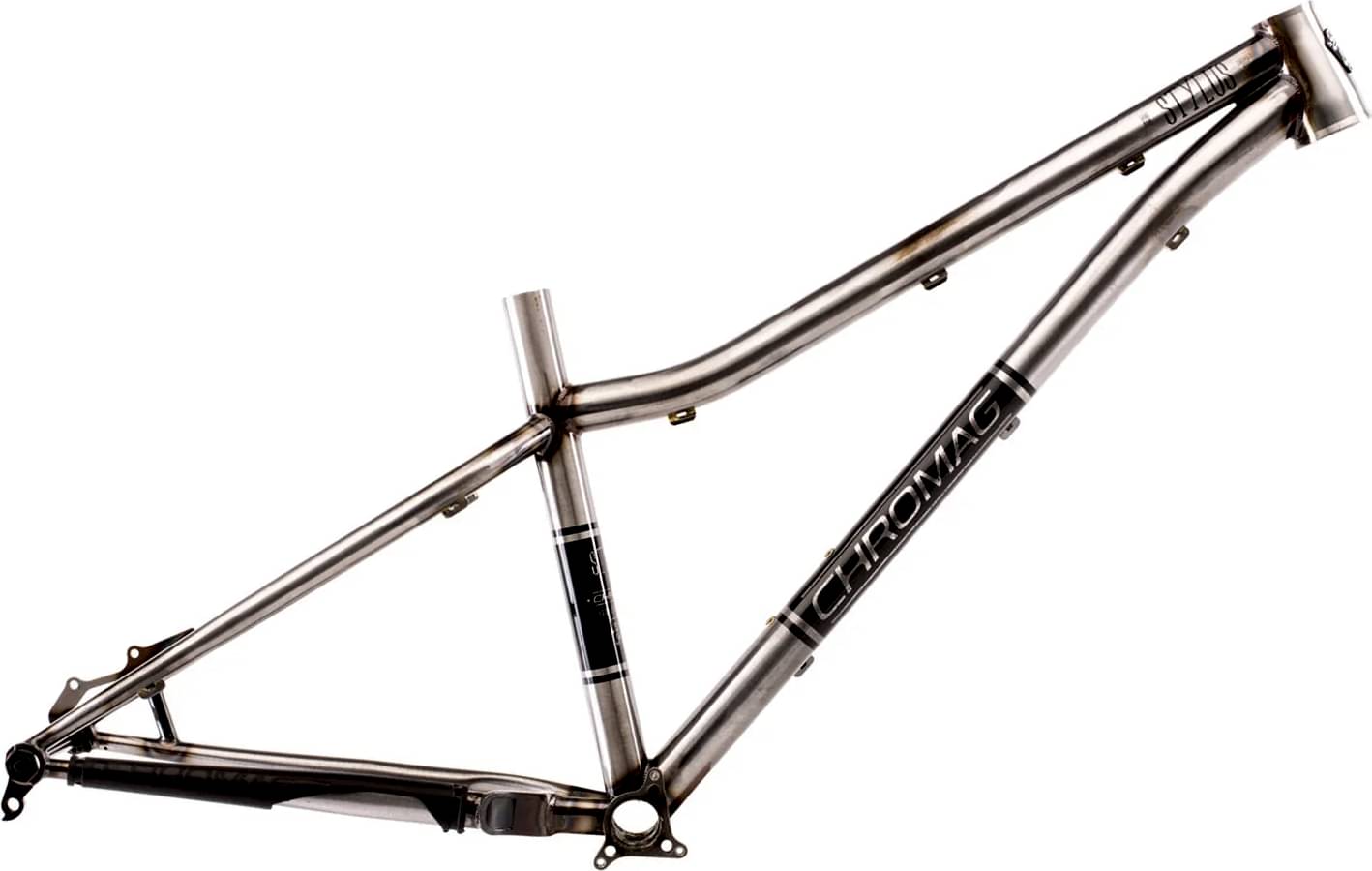

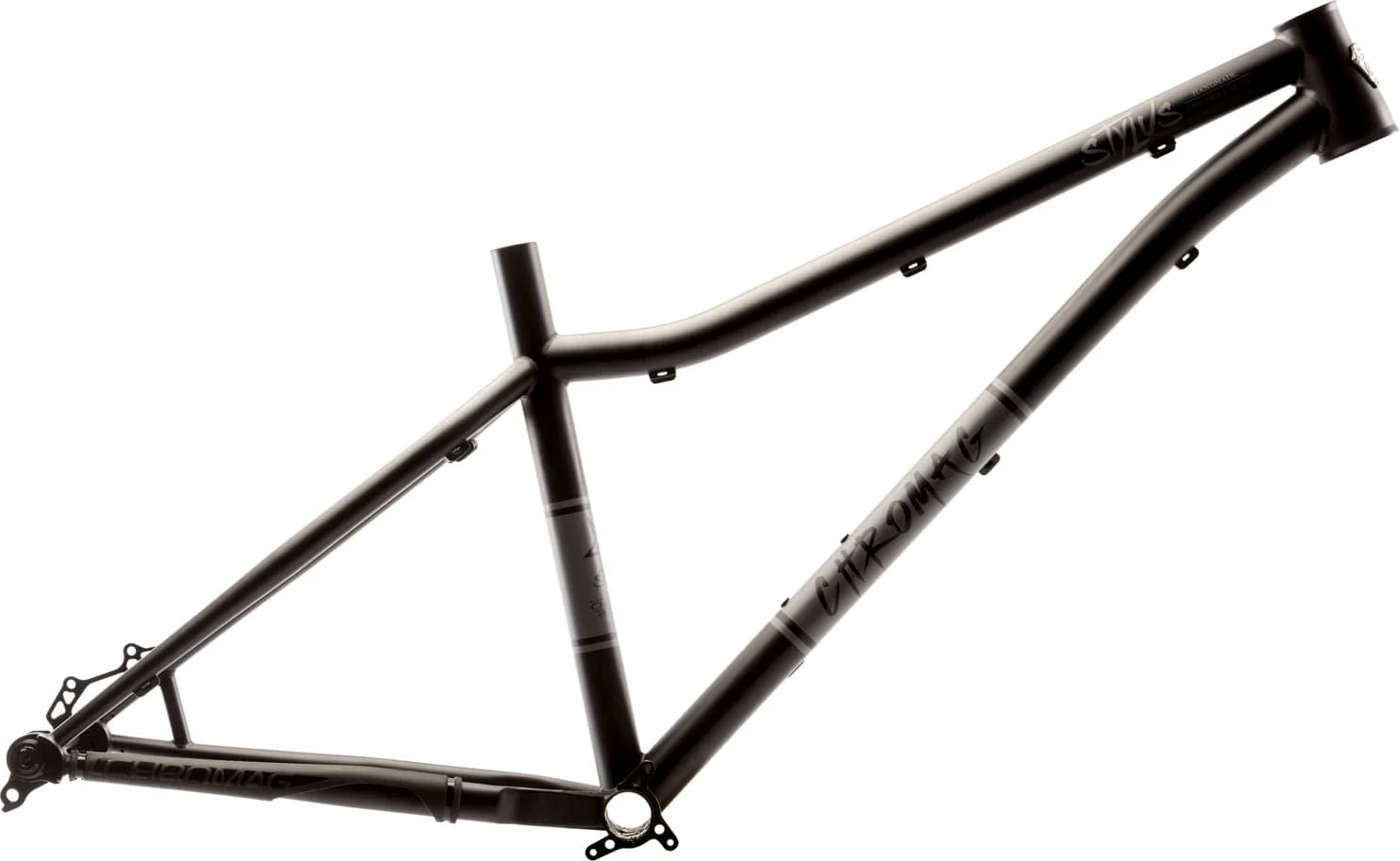

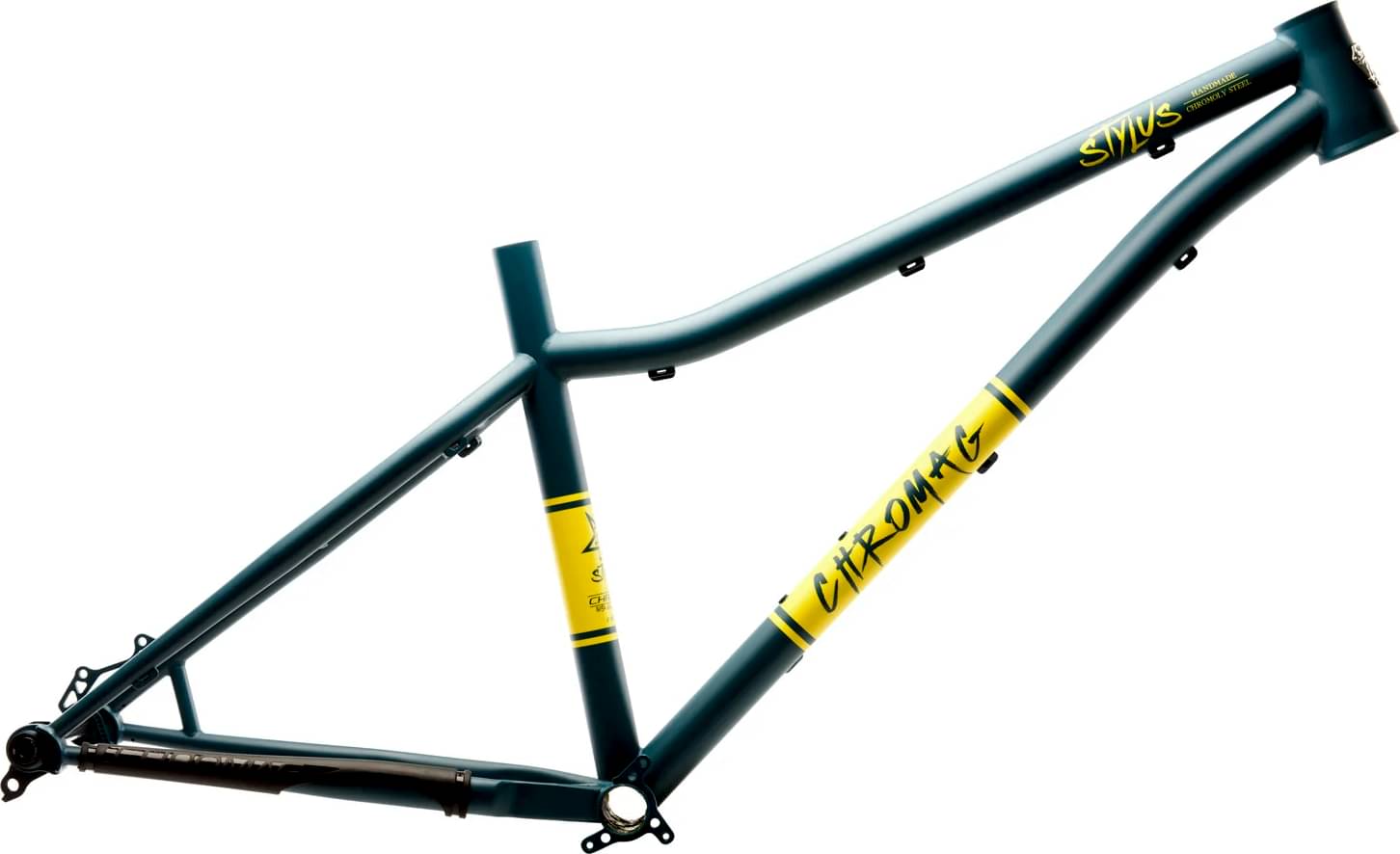

Frame Steel -
Wheels 27.5" -
Travel Front 160mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Zeb Select 160mm 110x15mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM NX Eagle 10-50t
Crank
SRAM NX
Bottom Bracket
73mm Threaded, ISCG Mounts
Chain
SRAM NX Eagle
Pedals
-
Wheels
Rims
Chromag 27.5" Ally Rims / Chromag R4 Hubs.
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Chromag HiFi BSX 31mm
Handlebar
Chromag OSX 25mm Rise, 800mm Wide
Grips
Chromag Format
Headset
44-56 Semi Integrated
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Chromag Bassix
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.35 mm | 1.29 mm | 1.22 mm | 1.18 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 739 mm | 765 mm | 787 mm | 810 mm | 840 mm |
| Rake | 39 mm | 40 mm | 40 mm | 40 mm | 41 mm |
| Trail | 130 mm | 129 mm | 129 mm | 129 mm | 128 mm |
| Stack | 595 mm | 595 mm | 595 mm | 595 mm | 604 mm |
| Reach | 416 mm | 441 mm | 463 mm | 486 mm | 511 mm |
| Top Tube Length | 564 mm | 590 mm | 612 mm | 634 mm | 662 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 330 mm | 380 mm | 422 mm | 457 mm | 495 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 95 mm | 115 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1154 mm | 1180 mm | 1202 mm | 1225 mm | 1255 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 637 mm | 686 mm | 726 mm | 760 mm | 797 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
Model Overview
Stylus G3 is a Chromag Stylus model. Chromag released 13 bikes variations of this model so far. Take a sneak peek at all Chromag Stylus bikes models from 2023, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 3277$. Comparing the average cost of an Enduro bike to this one, you will see that Stylus G3 price is 9.83% lower.
Stylus G3 components
Fork
The RockShox ZEB Select is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Chromag Stylus G3 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stylus G3 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
