Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
73mm Threaded
Wheels
Rims
29"
Brakes
Brakes
Hydraulic Disc
Cockpit
Headset
44-56 Semi Integrated
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.37 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 730 mm | 755 mm | 776 mm | 805 mm | 825 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 626 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 423 mm | 448 mm | 465 mm | 489 mm | 505 mm |
| Top Tube Length | 579 mm | 604 mm | 623 mm | 649 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 431 mm | 456 mm | 494 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1152 mm | 1177 mm | 1198 mm | 1227 mm | 1247 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 679 mm | 716 mm | 740 mm | 764 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |

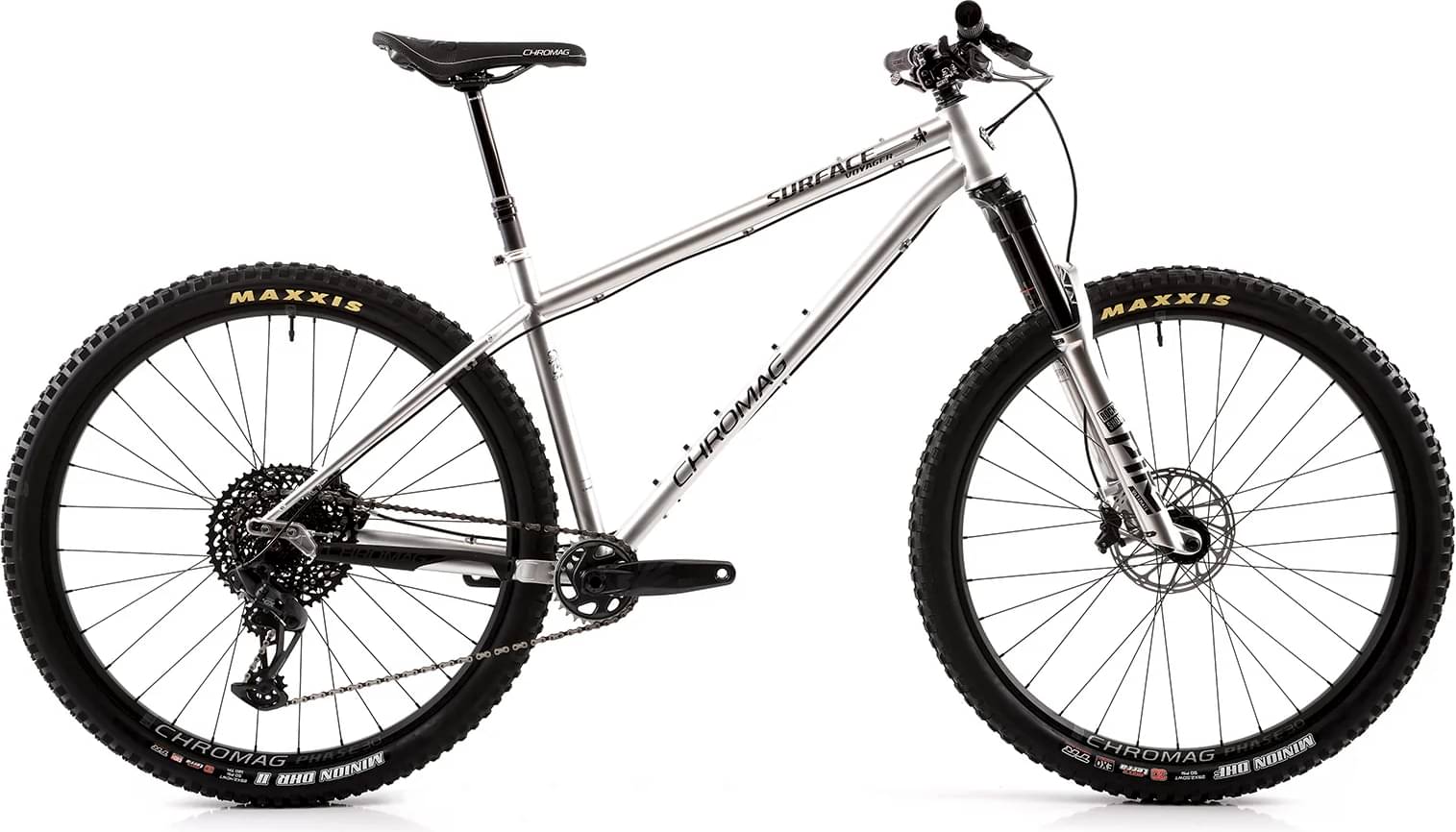

About this model
SURFACE VOYAGER is part of the Chromag Surface model. There are 13 bikes that carry this model name. You can easily view all of the Chromag Surface bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
SURFACE VOYAGER components
Wheels size
When leaving the production line, the SURFACE VOYAGER model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
SURFACE VOYAGER comes in 5 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
