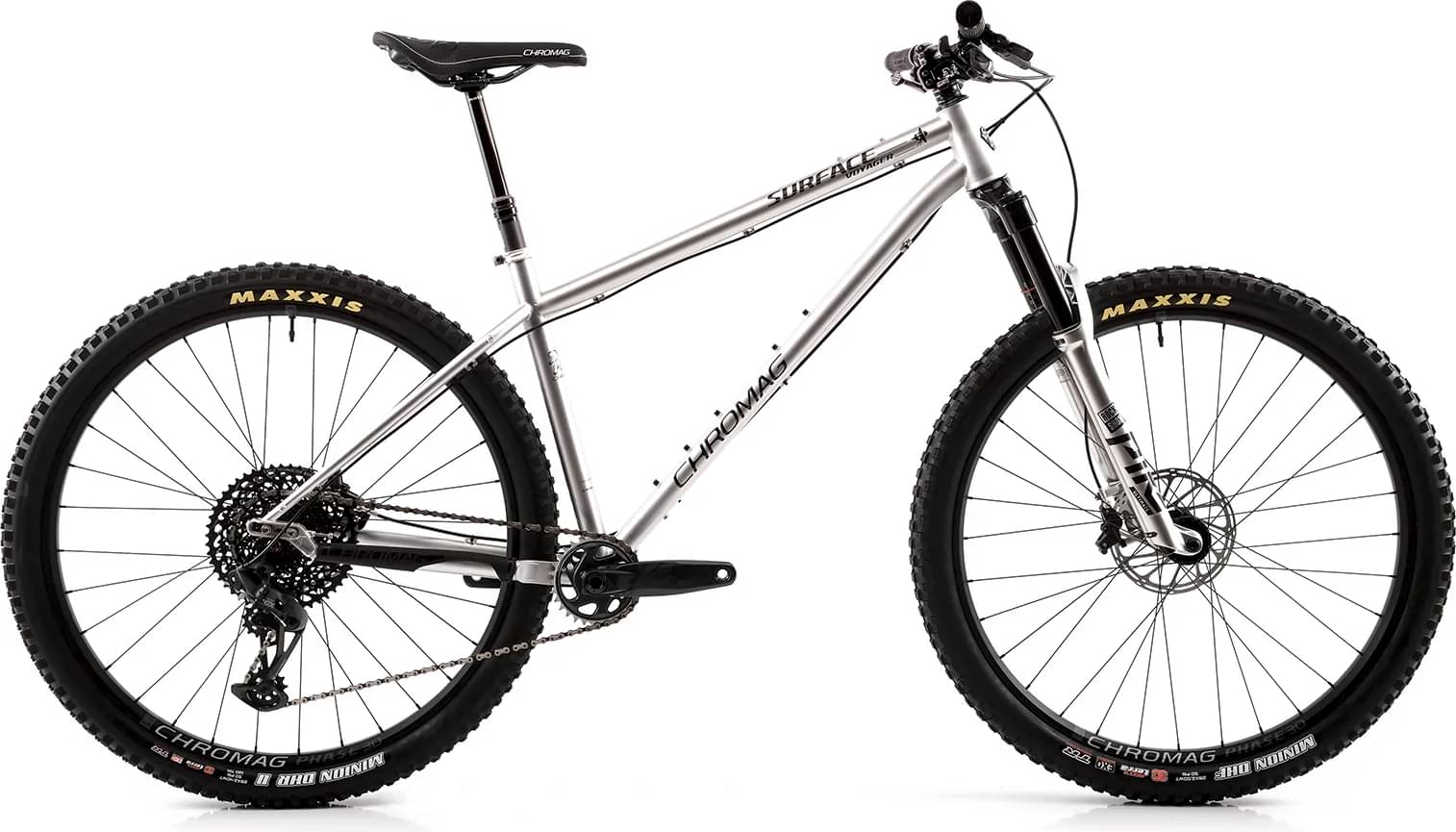

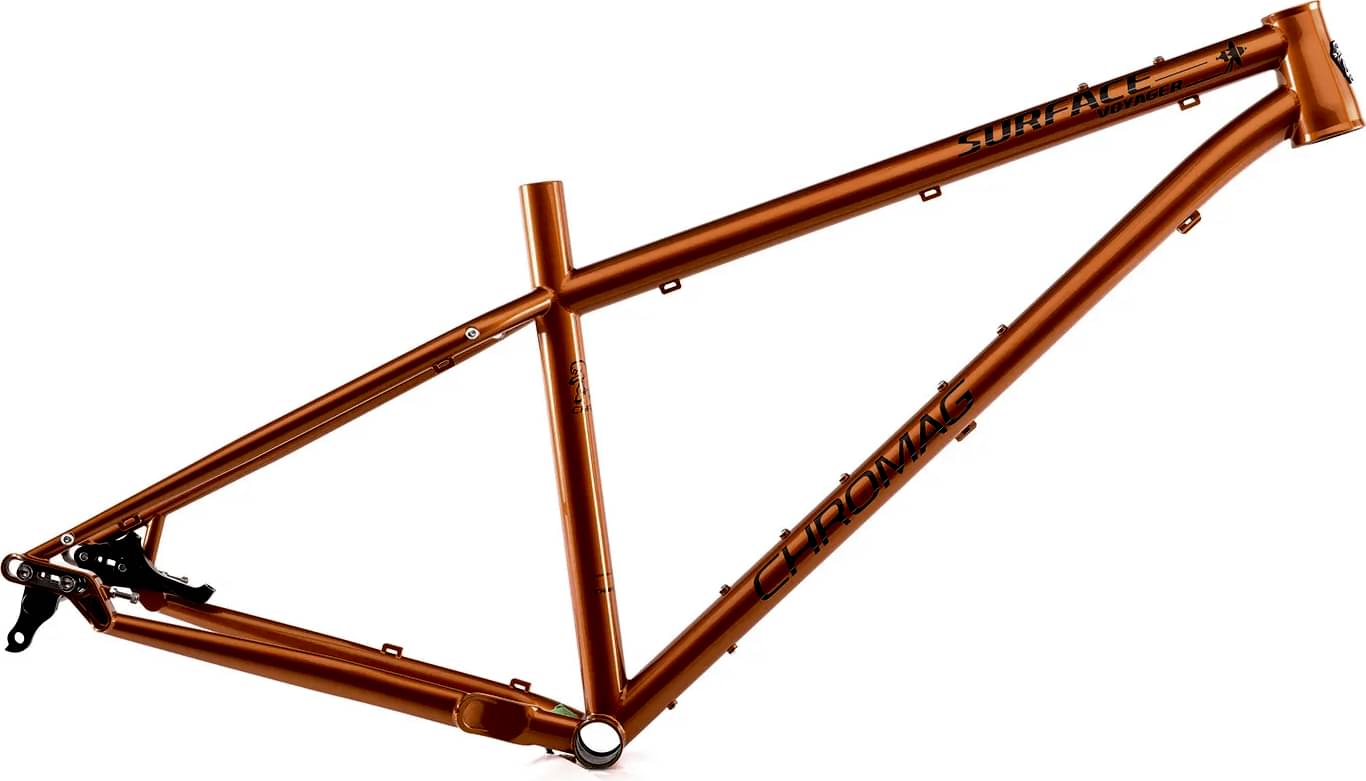

Chromag Surface Voyager Frame 2022

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Mountain
- |
- Trail
Frame Steel
Wheels 29"

Sizing

Recommended size guide.

SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
XL
190cm - 200cm

Parts list

Components

Main components, grouped by system.

Bike components

Drivetrain

Bottom Bracket

73mm Threaded

Cockpit

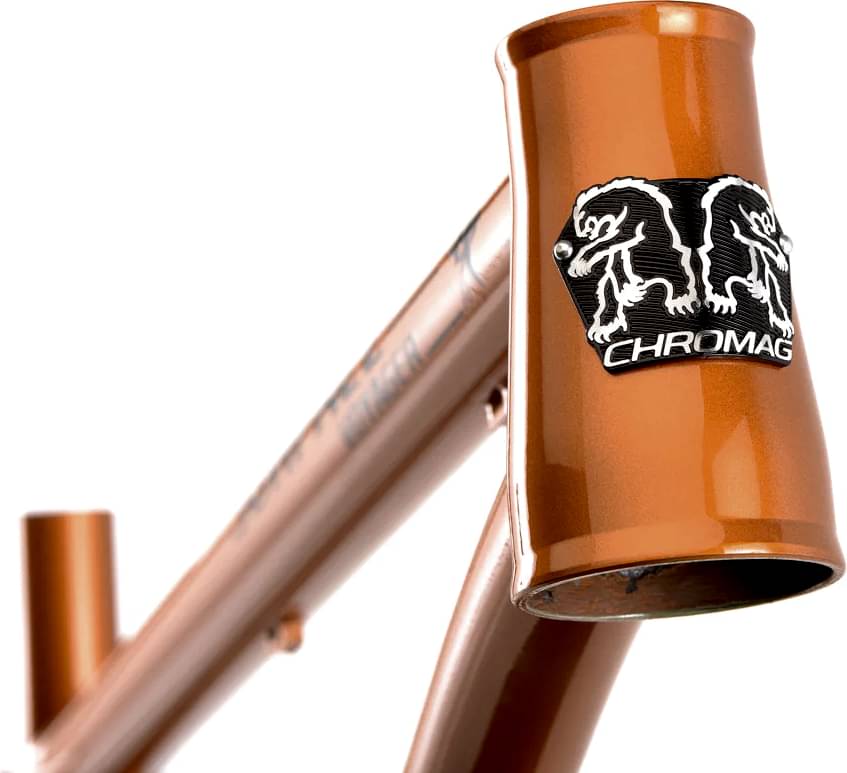

Headset

44-56 Semi Integrated

Seat

Seatpost

31.6mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	MD	MD/LG	LG	XL
Stack Reach Ratio	1.48 mm	1.4 mm	1.37 mm	1.32 mm	1.29 mm
Bottom Bracket Height	320 mm	320 mm	320 mm	320 mm	320 mm
Front Center	730 mm	755 mm	776 mm	805 mm	825 mm
Rake	42 mm	42 mm	42 mm	42 mm	42 mm
Trail	125 mm	125 mm	125 mm	125 mm	125 mm
Stack	626 mm	626 mm	635 mm	644 mm	653 mm
Reach	423 mm	448 mm	465 mm	489 mm	505 mm
Top Tube Length	579 mm	604 mm	623 mm	649 mm	667 mm
Seat Tube Angle	76 °	76 °	76 °	76 °	76 °
Seat Tube Length	368 mm	406 mm	431 mm	456 mm	494 mm
Head Tube Angle	65.5 °	65.5 °	65.5 °	65.5 °	65.5 °
Head Tube Length	95 mm	95 mm	105 mm	115 mm	125 mm
Chainstay Length	427 mm	427 mm	427 mm	427 mm	427 mm
Wheelbase	1152 mm	1177 mm	1198 mm	1227 mm	1247 mm
Bottom Bracket Drop	50 mm	50 mm	50 mm	50 mm	50 mm
Standover Height	679 mm	716 mm	740 mm	764 mm	801 mm
Wheels	29"	29"	29"	29"	29"
Rider Min Height	155 cm	163 cm	172 cm	181 cm	190 cm
Rider Max Height	165 cm	174 cm	183 cm	192 cm	200 cm

About this model

Surface Voyager Frame is part of the Chromag Surface model. Chromag released 13 frames variations of this model so far. You can easily view all of the Chromag Surface frames models from 2022, here.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Average price for Trail frames

According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, you could also get a good Trail frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.

At the moment of the release date, Chromag Surface Voyager Frame price was 1900$. In conclusion, this frame price is 9.45% more expensive than the price of the average Trail frame.

Overview of components

Sizes

Surface Voyager Frame comes in 5 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
