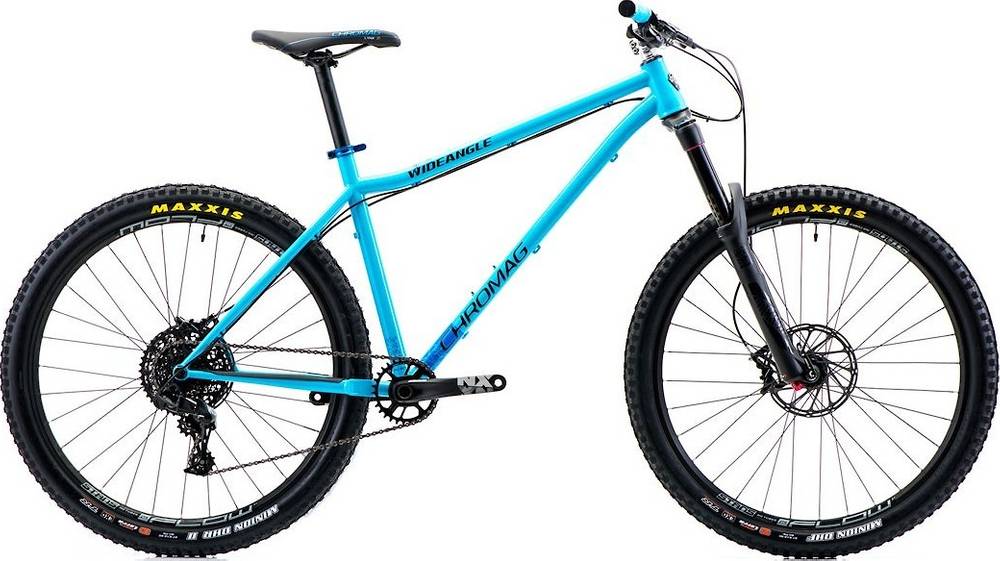

Chromag Wideangle 27.5″ X01 Eagle 2018
2018 Mountain
Estimate price |
4,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Lyrik
-
Groupset X01 Eagle, X1 -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Lyrik RC, travel adjust
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1295, 10-50 tooth, 12-speed
Crank
SRAM X1 Eagle Carbon
Bottom Bracket
73mm threaded
Chain
SRAM X01 Eagle
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Chromag Magna
Rear Hub
Chromag Magna
Rims
Chromag Phase 30, ERD: 566mm, 30mm inner width, 35mm outer width, tubeless ready
Tires
Maxxis Minion
Brakes
Brakes
SRAM Guide RSC B1 with Centerline 180mm rotors
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Chromag HiFi, 40mm length
Handlebar
Fubars OSX, 780mm width, 25mm rise, 5° upsweep, 8° bend
Grips
Chromag Basis
Headset
Cane Creek Forty ZS
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Chromag Dolomite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.4 mm | 1.34 mm | 1.27 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Stack | 603 mm | 603 mm | 603 mm | 603 mm |
| Reach | 404 mm | 430 mm | 449 mm | 474 mm |
| Top Tube Length | 570 mm | 596 mm | 615 mm | 641 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 393 mm | 431 mm | 470 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 1129 mm | 1154 mm | 1174 mm | 1199 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 760 mm | 703 mm | 730 mm | 747 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
Wideangle 27.5″ X01 Eagle is part of the Chromag Wideangle model. Chromag released 13 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Chromag Wideangle 27.5″ GX Eagle 2018 has a starting price of 3100$. Chromag Wideangle 27.5″ X01 Eagle 2018 on the other hand is the most expensive at 4000$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Chromag released this model in 2018, its price was 4000$. Doing a quick comparison, we notice that Wideangle 27.5″ X01 Eagle price is 44.82% higher than the average cost of a Trail bike.
Wideangle 27.5″ X01 Eagle components
Fork
The fork installed on this bike is the RockShox Lyrik model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Wideangle 27.5″ X01 Eagle are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Wideangle 27.5″ X01 Eagle has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
