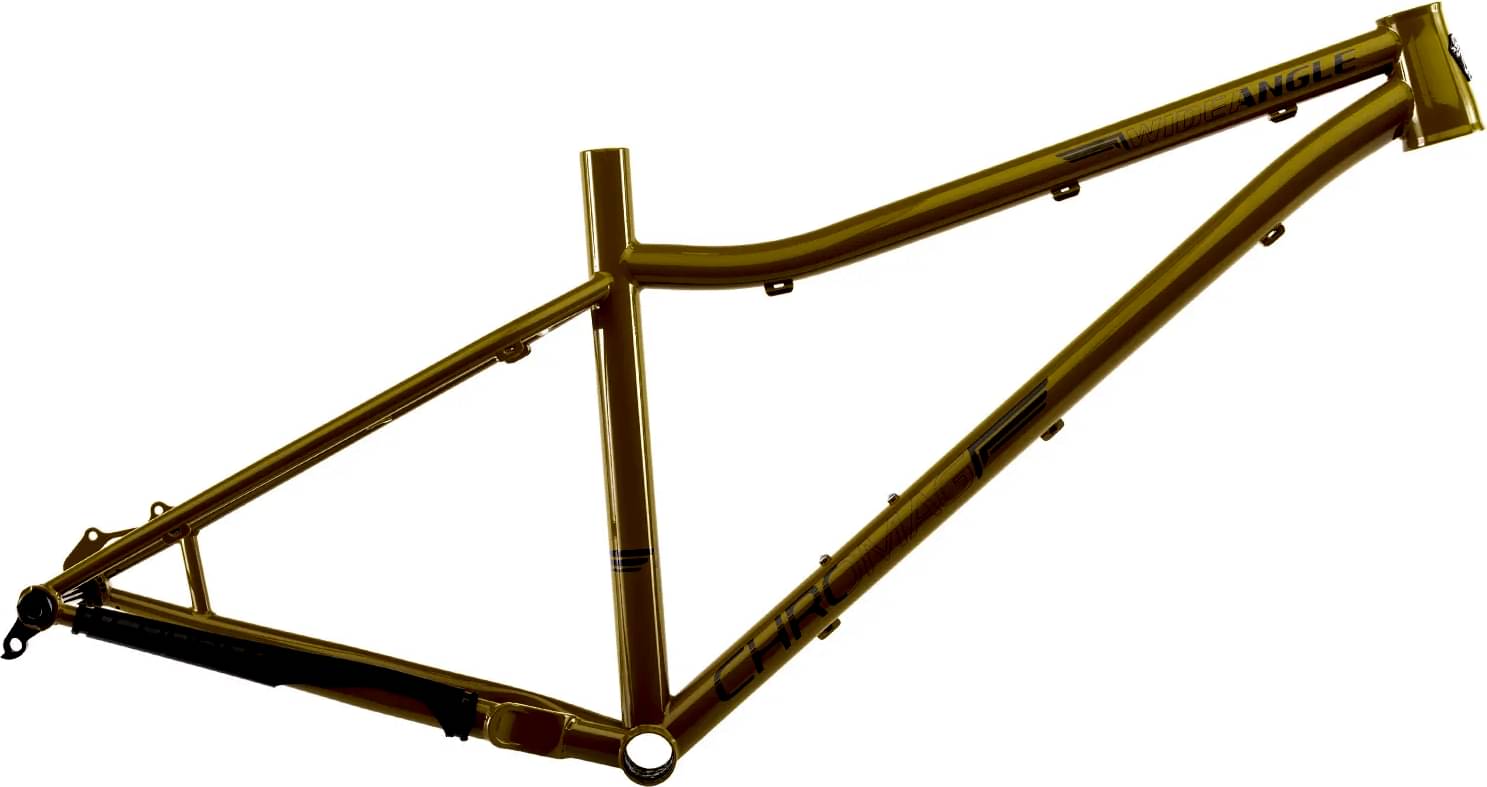

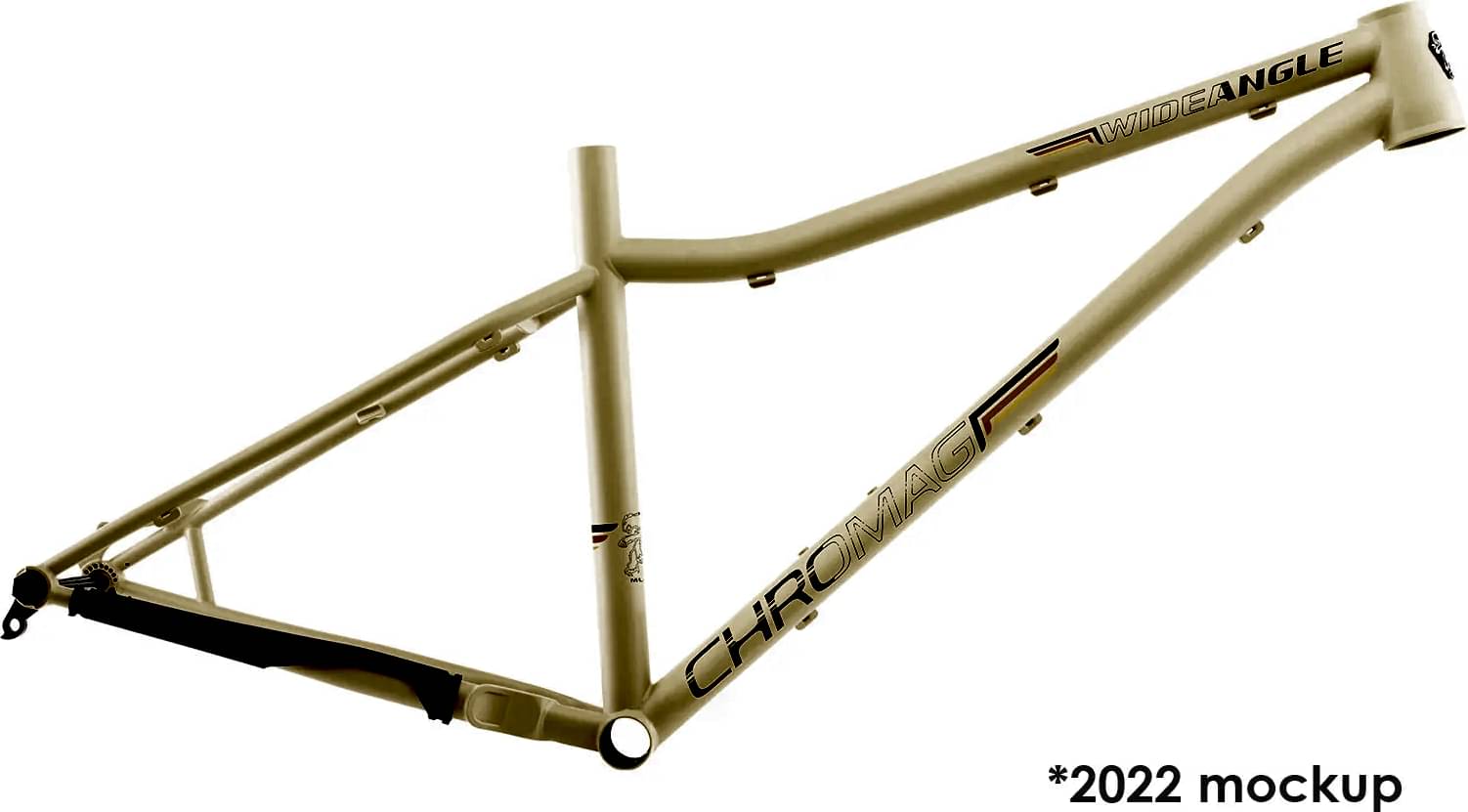

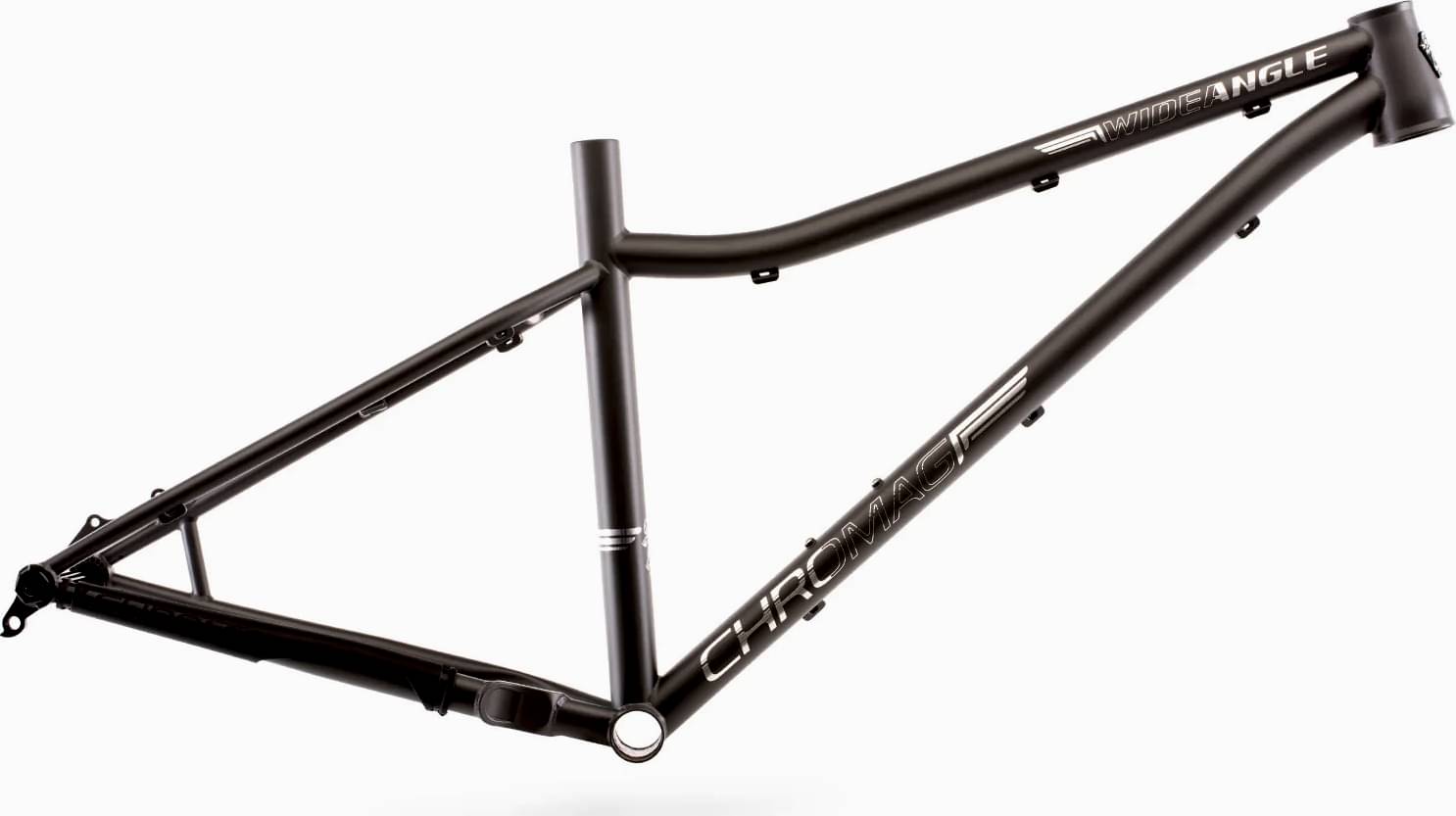

Chromag Wideangle Frame 2023

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Mountain
- |
- Trail
Frame Steel
Wheels 27.5"

Sizing

Recommended size guide.

SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm

Parts list

Components

Main components, grouped by system.

Bike components

Drivetrain

Bottom Bracket

73mm Threaded

Cockpit

Headset

44-56 Semi Integrated

Seat

Seatpost

31.6mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	MD	MD/LG	LG
Stack Reach Ratio	1.43 mm	1.37 mm	1.3 mm	1.27 mm
Bottom Bracket Height	316 mm	316 mm	316 mm	316 mm
Front Center	739 mm	757 mm	781 mm	805 mm
Rake	46 mm	46 mm	46 mm	46 mm
Trail	115 mm	115 mm	115 mm	115 mm
Stack	601 mm	601 mm	601 mm	610 mm
Reach	420 mm	438 mm	462 mm	482 mm
Top Tube Length	570 mm	588 mm	612 mm	634 mm
Seat Tube Angle	76 °	76 °	76 °	76 °
Seat Tube Length	381 mm	419 mm	445 mm	470 mm
Head Tube Angle	65 °	65 °	65 °	65 °
Head Tube Length	95 mm	95 mm	95 mm	105 mm
Chainstay Length	417 mm	417 mm	417 mm	417 mm
Wheelbase	1154 mm	1172 mm	1196 mm	1220 mm
Bottom Bracket Drop	33 mm	33 mm	33 mm	33 mm
Standover Height	684 mm	721 mm	746 mm	770 mm
Wheels	27"	27"	27"	27"
Rider Min Height	155 cm	163 cm	172 cm	181 cm
Rider Max Height	165 cm	174 cm	183 cm	192 cm

Model Overview

Wideangle Frame is a Chromag Wideangle model. Chromag launched 13 frames of this model so far. You can easily view all of the Chromag Wideangle frames models from 2023, here.

Safety

When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.

Average price for Trail frames

According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.

At the moment of the release date, Chromag Wideangle Frame price was 879$. In conclusion, this frame price is 97.5% smaller than the price of the average Trail frame.

Average weight for Trail frames

The average weight for Trail frames is 2.88 kg (6.35 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.

Wideangle Frame weighs 2.96 kg (6.53 lbs) and is slightly heavier than the average. In conclusion, the average Trail frame weighs 2.78% less than Wideangle Frame.

Overview of components

Sizes

Wideangle Frame comes in 4 sizes, that range from 155 cm – 192 cm (5.09 ft – 6.3 ft). In conclusion, finding one for you shouldn’t be a problem.
