Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Pike Select+
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components

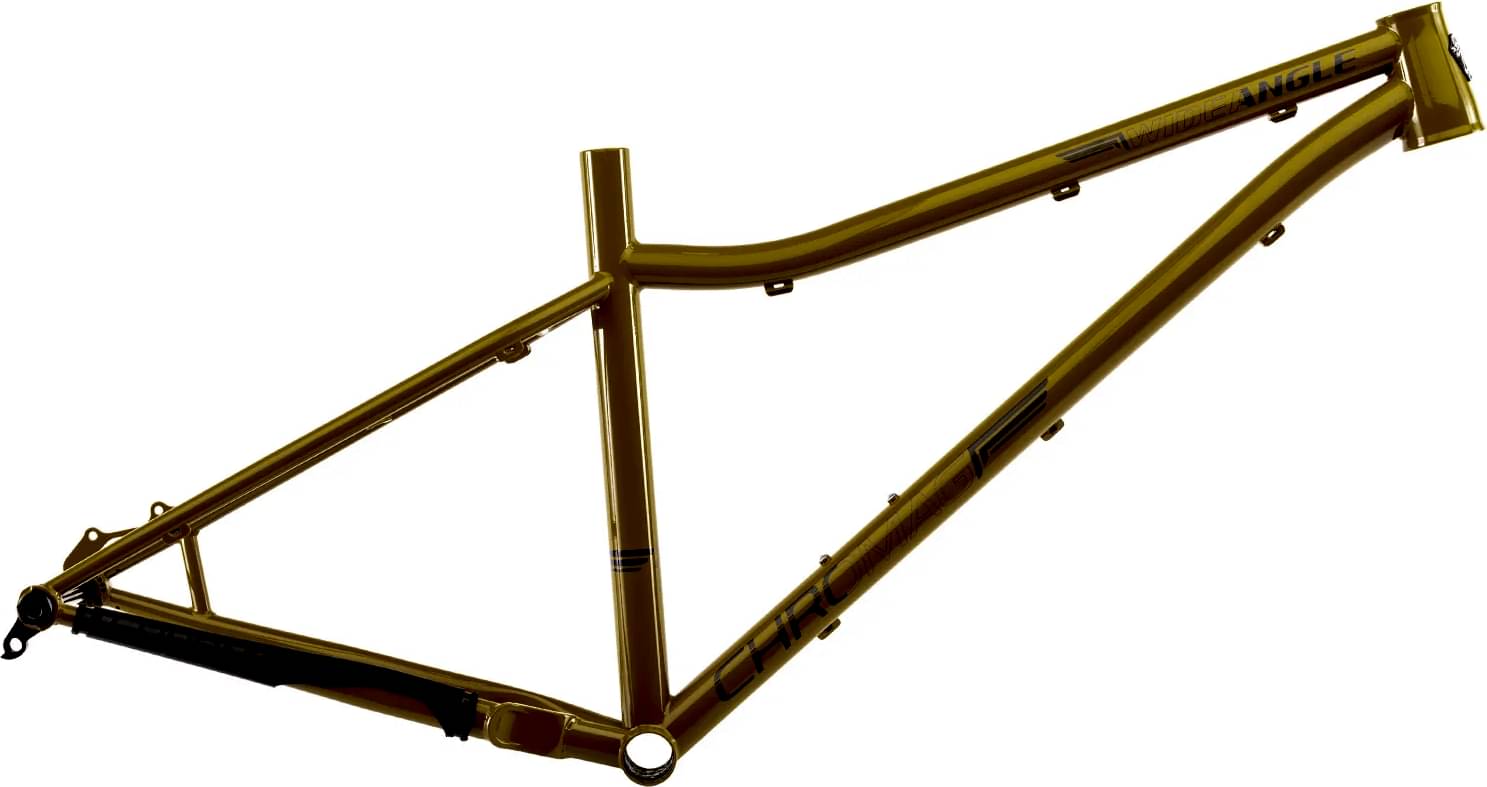

Frame
Suspension Fork
Rock Shox Pike Select + 150mm Boost
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle
Crank
SRAM GX 170mm
Bottom Bracket
73mm Threaded
Chain
SRAM GX Eagle
Pedals
-
Wheels
Rims
Chromag 27.5" Phase30 Rims / Chromag R4 Hubs
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Chromag HiFi 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm Wide
Grips
Chromag Format
Headset
Cane Creek Forty ZS
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Rock Shox Reverb
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 739 mm | 757 mm | 781 mm | 805 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 601 mm | 601 mm | 601 mm | 610 mm |
| Reach | 420 mm | 438 mm | 462 mm | 482 mm |
| Top Tube Length | 570 mm | 588 mm | 612 mm | 634 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 419 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1154 mm | 1172 mm | 1196 mm | 1220 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 684 mm | 721 mm | 746 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm |
About this model
WIDEANGLE G2 completes the Chromag Wideangle model. Chromag launched 13 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Chromag WIDEANGLE G3 2022 is the cheapest bike model and costs 3121$. Chromag WIDEANGLE G2 2022 is the most expensive one and costs 3700$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Chromag WIDEANGLE G2 price was 3700$. Doing a quick comparison, we notice that WIDEANGLE G2 price is 2.81% higher than the average cost of an Enduro bike.
WIDEANGLE G2 components
Fork
Chromag WIDEANGLE G2 2022 bike is equipped with the RockShox Pike Select+ fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on WIDEANGLE G2 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The WIDEANGLE G2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Chromag WIDEANGLE G2 bike has 4 sizes, in the range of 155 cm – 192 cm (5.09 ft – 6.3 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Chromag WIDEANGLE G2 includes a dropper post. Therefore, climbing or descending will be a breeze.
