Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Pike Select
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
163cm - 174cm
MD/LG
172cm - 183cm
LG
181cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Pike Select 150mm Boost 110x15mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM NX Eagle
Crank
SRAM NX
Bottom Bracket
73mm Threaded
Chain
SRAM NX Eagle
Wheels
Rims
Chromag Ally 27.5 / Chromag R4 Hub
Tires
Maxxis Minion DHF/DHR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Chromag HiFi 40mm
Handlebar
Chromag OSX 25mm Rise, 800mm Wide
Grips
Chromag Format
Headset
Cane Creek Forty ZS
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Chromag Bassix
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 739 mm | 757 mm | 781 mm | 805 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 601 mm | 601 mm | 601 mm | 610 mm |
| Reach | 420 mm | 438 mm | 462 mm | 482 mm |
| Top Tube Length | 570 mm | 588 mm | 612 mm | 634 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 419 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1154 mm | 1172 mm | 1196 mm | 1220 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 684 mm | 721 mm | 746 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm |
About this model

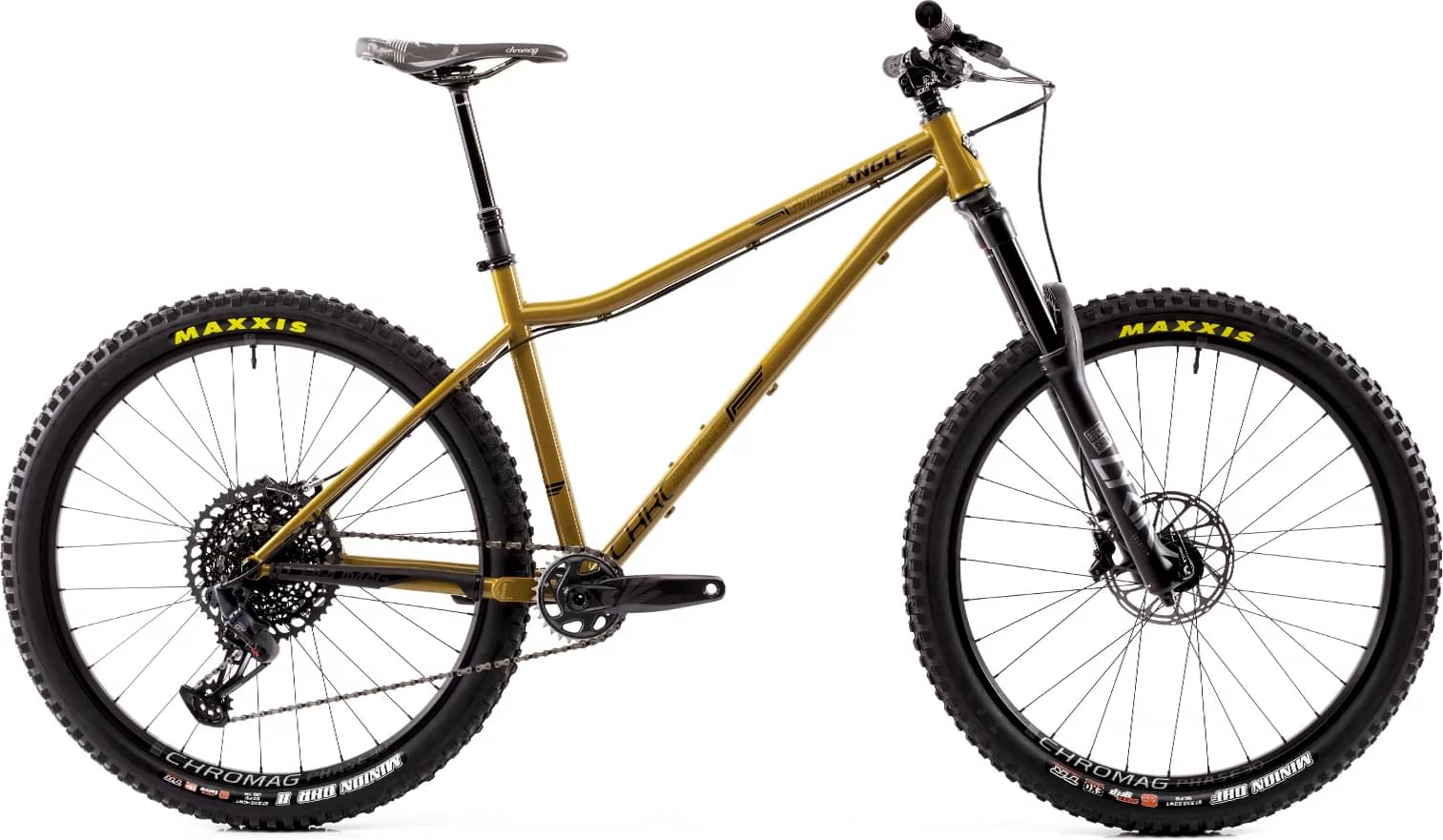

Wideangle G3 is a Chromag Wideangle model. Chromag launched 13 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Chromag Wideangle G3 2023 has a starting price of 3277$. Chromag Wideangle G2 2023 on the other hand is the most expensive at 4175$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Chromag released this model in 2023, its price was 3277$. In conclusion, this bike price is 9.83% smaller than the price of the average Enduro bike.
Wideangle G3 components
Fork
The RockShox Pike Select is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the Wideangle G3 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Chromag Wideangle G3 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Wideangle G3 comes in 4 sizes, that range from 155 cm – 192 cm (5.09 ft – 6.3 ft). In short, you can easily find one that suits you.
