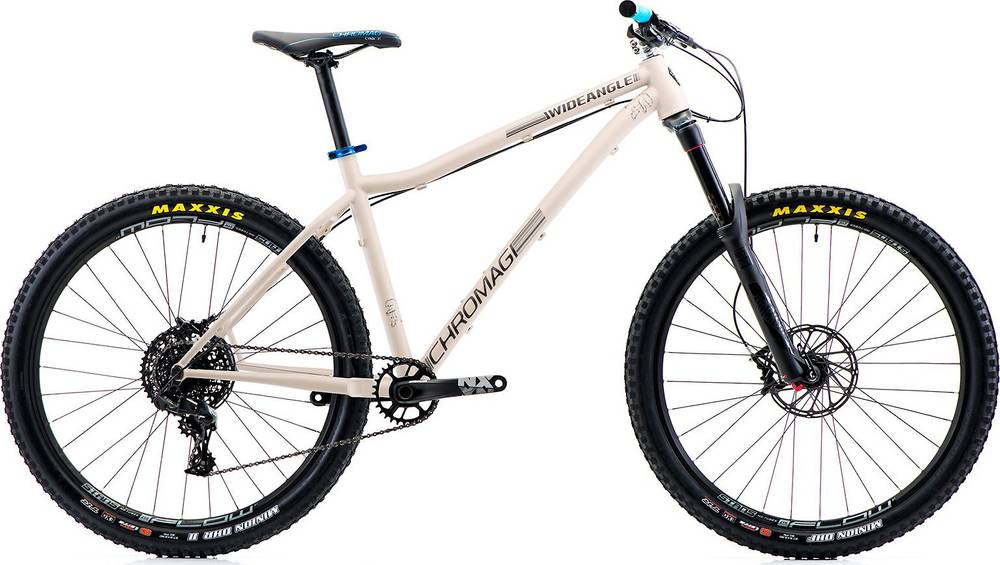

Chromag Wideangle GX Eagle 2020
2020 Mountain
Estimate price |
3,360$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Lyrik
-
Groupset GX Eagle -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
RockShox Lyrik
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle
Bottom Bracket
73mm threaded
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
27.5": Chromag Phase30, 26+: Chromag Magna40
Spokes
Chromag wheelset
Tires
Front: Maxxis Minion DHF, Rear: Maxxis Minion DHR II
Brakes
Brakes
SRAM G2 RS, 180mm rotors
Brake Levers
SRAM G2 RS
Cockpit
Stem
Chromag HiFi, 40mm length
Handlebar
Chromag OSX, 25mm rise, 780mm width
Grips
Chromag Squarewave
Headset
Cane Creek Forty, ZS44 upper, ZS56 lower
Seat
Saddle
Chromag Trailmaster DT
Seatpost
Chromag Dolomite, Option: RockShox Reverb dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Stack | 601 mm | 601 mm | 601 mm | 610 mm |
| Reach | 420 mm | 438 mm | 462 mm | 482 mm |
| Top Tube Length | 570 mm | 588 mm | 612 mm | 634 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 419 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 1154 mm | 1172 mm | 1196 mm | 1220 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 684 mm | 721 mm | 746 mm | 770 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
Wideangle GX Eagle completes the Chromag Wideangle model. 13 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Chromag Wideangle NX Eagle 2020 has a starting price of 2810$. Chromag Wideangle X01 Eagle 2020 on the other hand is the most expensive at 4310$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Chromag released this model in 2020, its price was 3360$. Comparing the average cost of an Enduro bike to this one, you will see that Wideangle GX Eagle price is 7.11% lower.
Wideangle GX Eagle components
Fork
The Wideangle GX Eagle comes factory-installed with the RockShox Lyrik fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Chromag Wideangle GX Eagle 2020, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Chromag Wideangle GX Eagle is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
